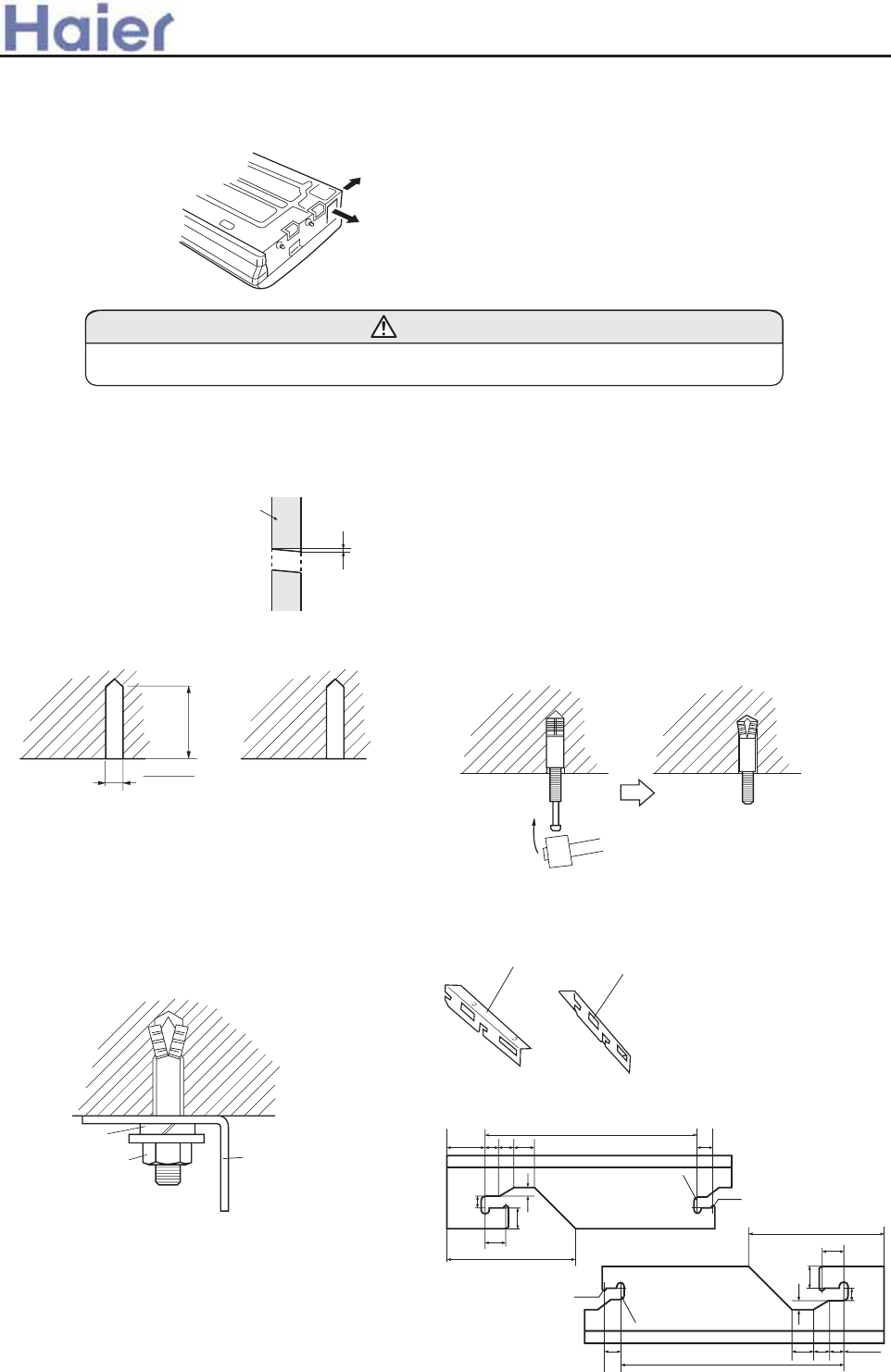

Select piping and drain directions. (Fig.11)
1. DRILLING FOR PIPING
(Fig. 11)
Rear (Install the drain hose
in the direction.)
Right
(Fig. 12)
Insert the anchor bolts into the drilled holes, and drive the pins
completely into the anchor bolts with a hammer. (Fig. 13)
2. DRILLING HOLES FOR ANCHOR BOLTS AND INSTALLING THE ANCHOR BOLTS
When the directions are selected, drill 80mm and 50mm or 150mm dia. hole on the wall so that the hole is tilted
downward toward the outdoor for smooth water flow.
With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.12)
Wall
6mm
60 to 70mm
12.7mm
(Fig. 13)
Install the drain hose at the rear; it should not be installed on the top or right side.
CAUTION
3. INSTALLING BRACKETS
(Fig. 14)
Install the brackets with nuts, washers and spring washers.(Fig. 14)
4. INSTALLING INDOOR UNIT
Reset the hex bolts as shown in Fig.15.
68
16 21 28
381
232
26.5
26.5
2-R2.5
10
18
7.5
4-R5
68
16
21
28
381
232
26.5
26.5
2-R2.5
10
18
7.5
4-R5
Bracket (Right)
Bracket (Left)
For series 14,18,24
Spring washer
Special nut
Bracket
>a__WcU[S^ <[c >a`V[e[a`Wc
