35
• Sewing preparation
1
Stitch pattern: 08
2 Presser foot: Automatic buttonhole foot R
* When you select the buttonhole stitch, the screen
indicates the message: “PULL DOWN BH (Button
hole) LEVER” for a few seconds.

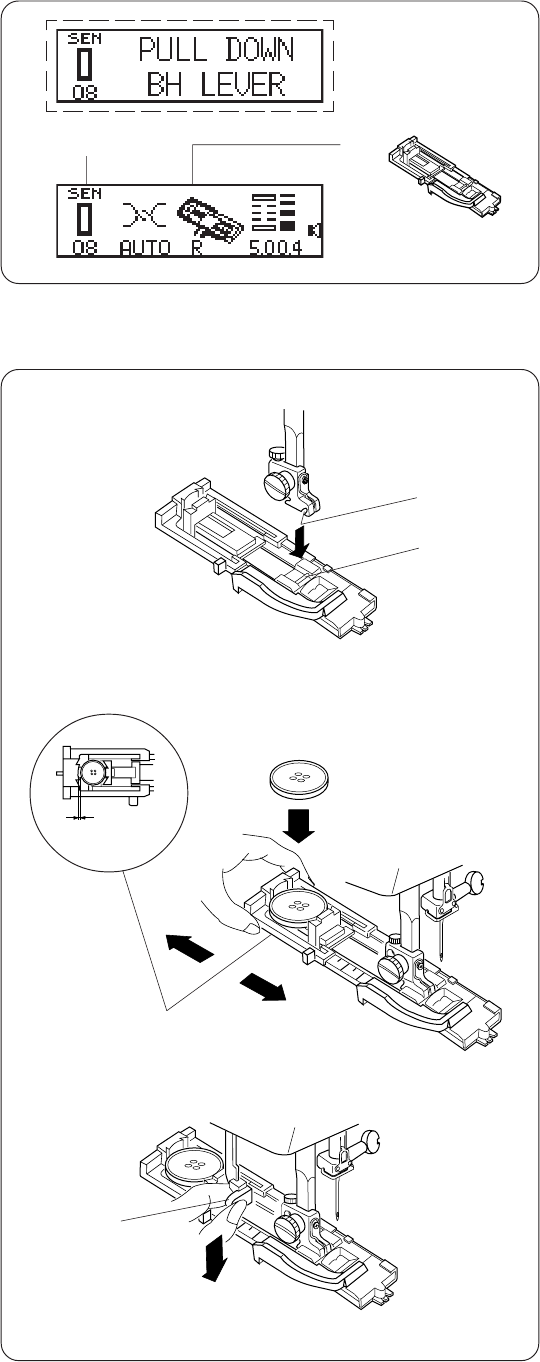

[1] Attach the automatic buttonhole foot R.
Make sure the groove on the holder catches the pin
on the foot, when lowering the presser foot.
1 Groove
2 Pin
[2] Pull the button holder to the back, and place the
button in it.
Push it together tightly on the button.
3 Button holder
If the button is extremely thick, make a test button-
hole.
If it is difficult to fit the button through the test
buttonhole, lengthen the size by pulling the button
holder on the back to increase length.
4 Gap
[3] Pull the buttonhole lever down as far as it will go.
5 Buttonhole lever
1
2
1
2
4
3
5
[1]
[2]
[3]
,
