9. GAZCO FLUE SURE SYSTEM

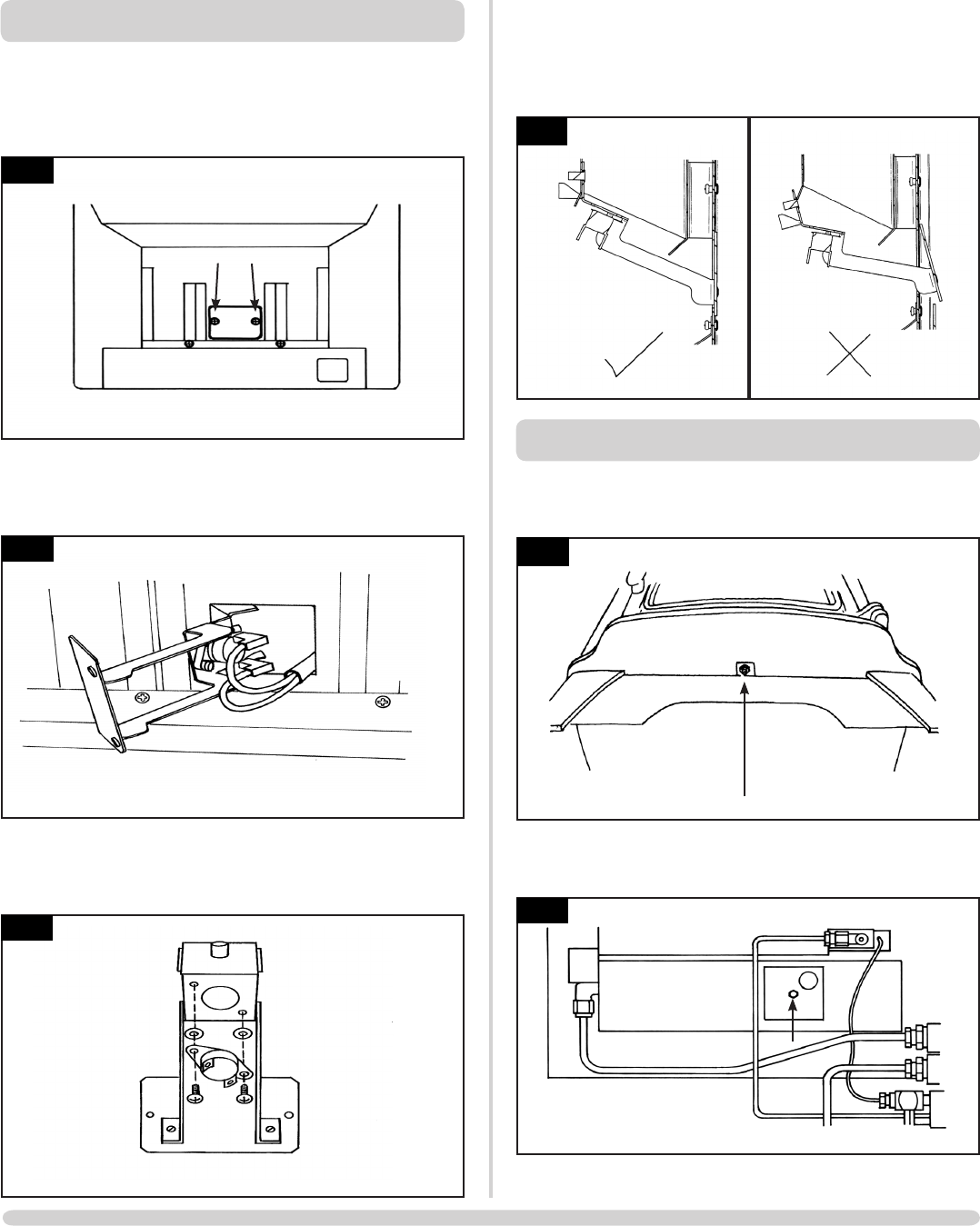

9.1 Open the door and remove the ceramics, placing them
carefully to one side. Undo the two screws in the back of
the firebox and carefully withdraw the bracket (see Diagram
14).
AR1442
14
9.2 Disconnect the two sender wires. Undo the two taptite
screws and remove the sensor and the two plastic spacers
(see Diagram 15).
AR1446
15
9.3 Refit the new sensor ensuring that the plastic spacers are
located between the bracket and the sensor. Refit the leads
(see Diagram 16).
AR1452
16
9.4 Feed the cable back through the hole as you replace the
bracket. When the bracket is located correctly it will sit
flush with the back panel without force being required. If
not positioned correctly the bracket will sit at an angle (see
Diagram 17).
AR1448
AR1447
17
10. PRIMARY AERATION PLATE
10.1 Remove the cover plate from the bottom of the stove by
undoing the 6mm bolt (see Diagram 18).
AR1449
18
10.2 Undo the M5 nyloc nut from the bottom of the burner unit
and remove the aeration plate (see Diagram 19).
AR1441
19
10.3 Reassemble in reverse order with the correct aeration plate.
