701379-UIM-C-0712
Johnson Controls Unitary Products 21

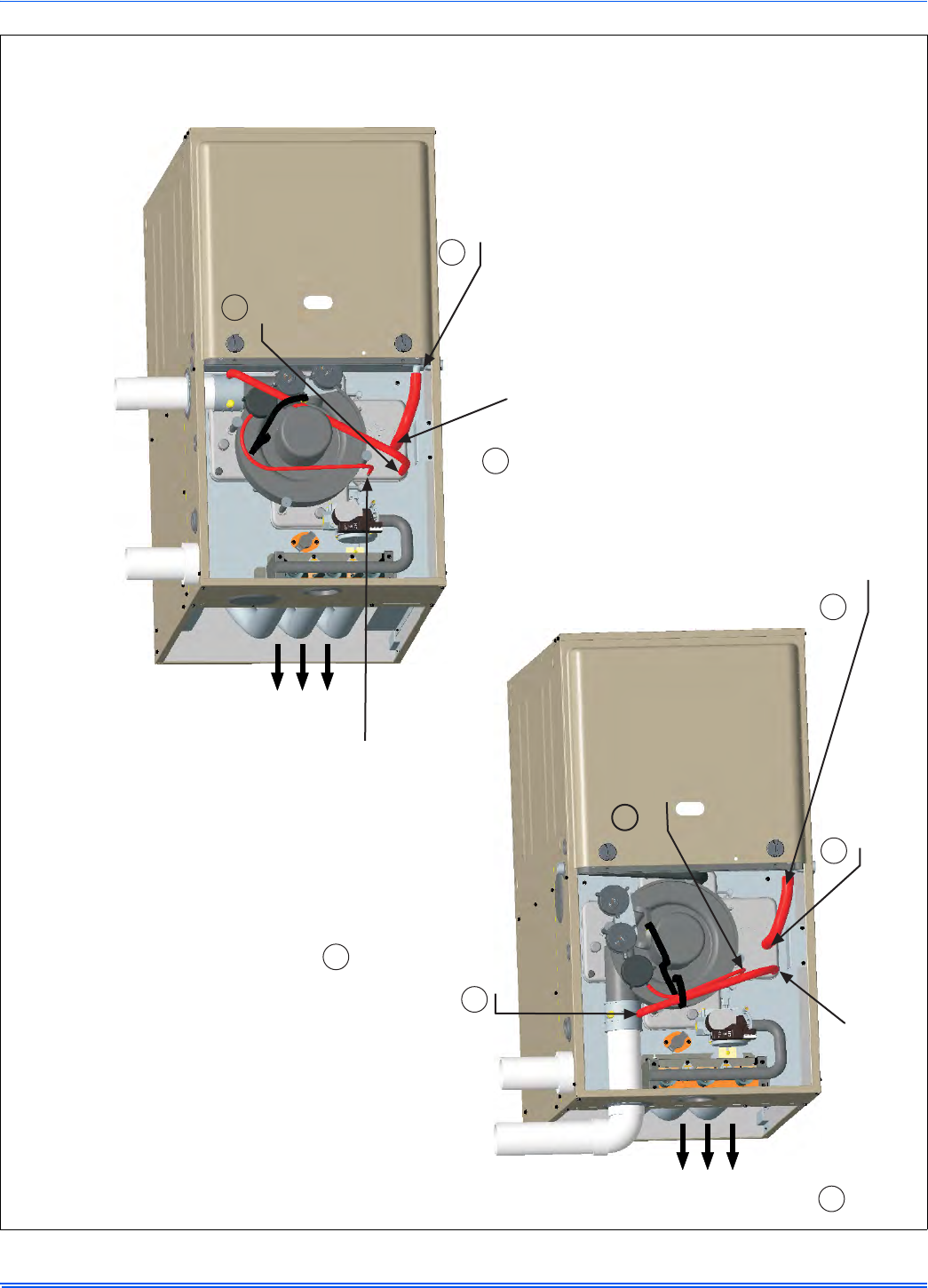

FIGURE 26: Horizontal Left Configuration
HORIZONTAL - LEFT
INDUCER ROTATED
HORIZONTAL - LEFT
INDUCER AS RECEIVED
AIRFLOW
AIRFLOW
Move pressure switch hose
to this position.
NOTE: May require the longer
hose that is provided with
wider cabinets.
Move rain gutter hose to this position
NOTE: May require hose extension
that is provided with wider cabinets.
Move rain gutter
hose to this position.
Move pressure switch
hose to this position.
NOTE: May require the longer
hose that is provided with
wider cabinets.
Change condensate drain
connection to the 90° fitting
provided.
Move condensate
drain hose to this
position.
Move rain gutter hose to this
position NOTE: May require hose
extension that is provided with
wider cabinets.
Move condensate
drain hose to this position.
Change condensate
drain connection to
the 90° fitting provided.
When drain hose routing changes are required, be sure to cap all unused openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect
and hold condensate, which will cause the furnace to not operate.
1
2
3
4
5
3
4
2
1
