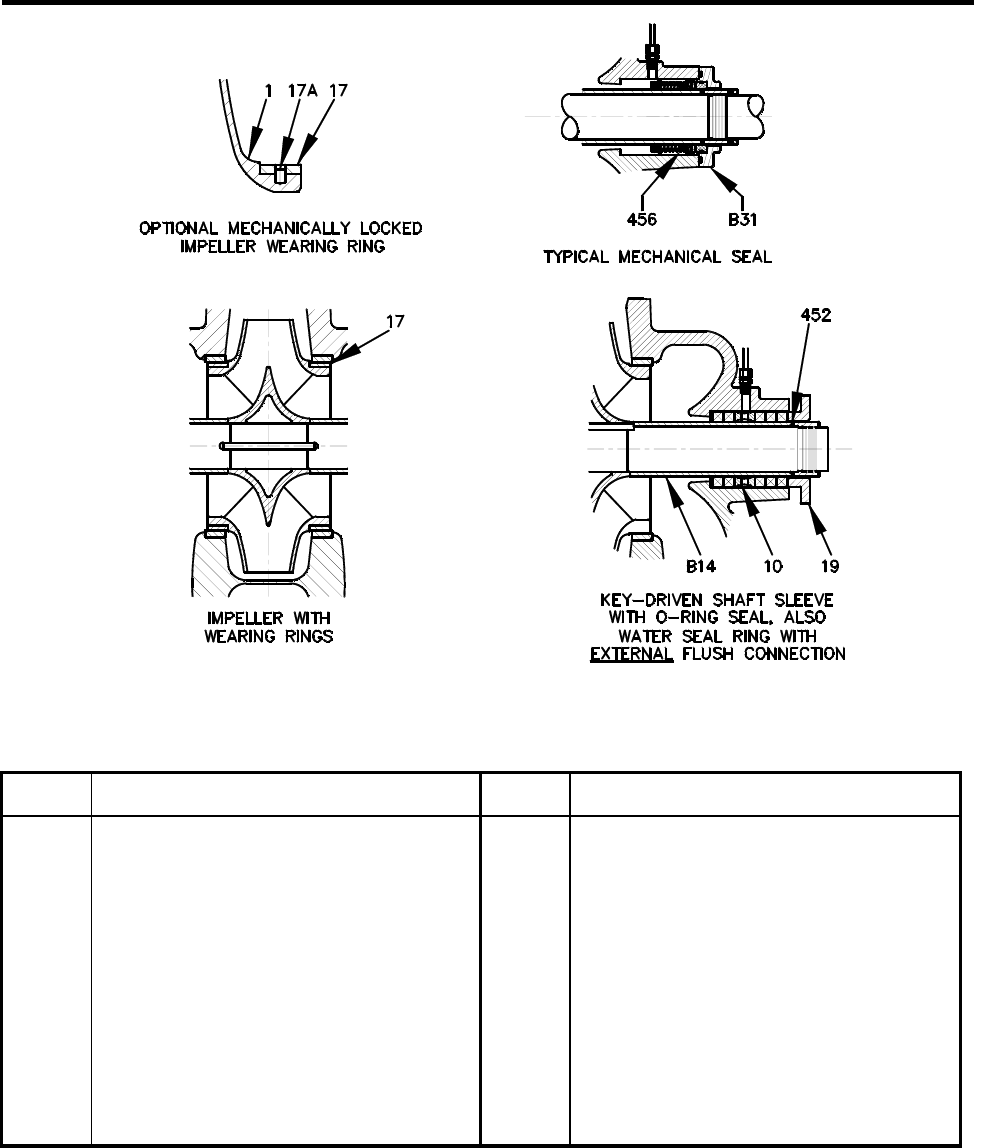

SECTIONAL DRAWINGS PAGE 23
Figure 7
REF.
NO.
DESCRIPTION
REF.
NO.
DESCRIPTION
1
IMPELLER
118
CLOSURE
2
CASING, LOWER HALF
126
WATER SLINGER
3
CASING, UPPER HALF
157
GASKET, CASING
4
SHAFT
158A
GREASE SEAL
6
BEARING HOUSING
A158
BEARING CART., INBOARD, GREASE LUBE
10
LANTERN RING
B158
BEARING CART., OUTBOARD, GREASE LUBE
14
SHAFT SLEEVE
161
BEARING LOCKNUT
B14
SHAFT SLEEVE- KEY DRIVEN
162
BEARING LOCK WASHER
16
WEARING RING, CASING
163
BEARING, INBOARD / RADIAL
17
WEARING RING, IMPELLER
168
BEARING, OUTBOARD / THRUST
17A
SETSCREW
212
PACKING
19
PACKING GLAND, SPLIT
213
NUT, SHAFT SLEEVE
B31
GLAND, MECHANICAL SEAL
272
KEY, COUPLING
95
STUFFING BOX BUSHING
452
O-RING, SHAFT SLEEVE
102
KEY, IMPELLER
456
SEAL, MECHANICAL
