Installation
F232085
28
Do not connect the ground to the neutral (N-white
wire) leg at the power input block terminal strip. Refer
to Figure 12.
If a delta supply system is used, the high leg must be
connected to L3 (red wire) at the power input block. If
three-phase service is not available and a phase adder
is used, the artificial leg must be connected to L3.
Refer to Figure 12.

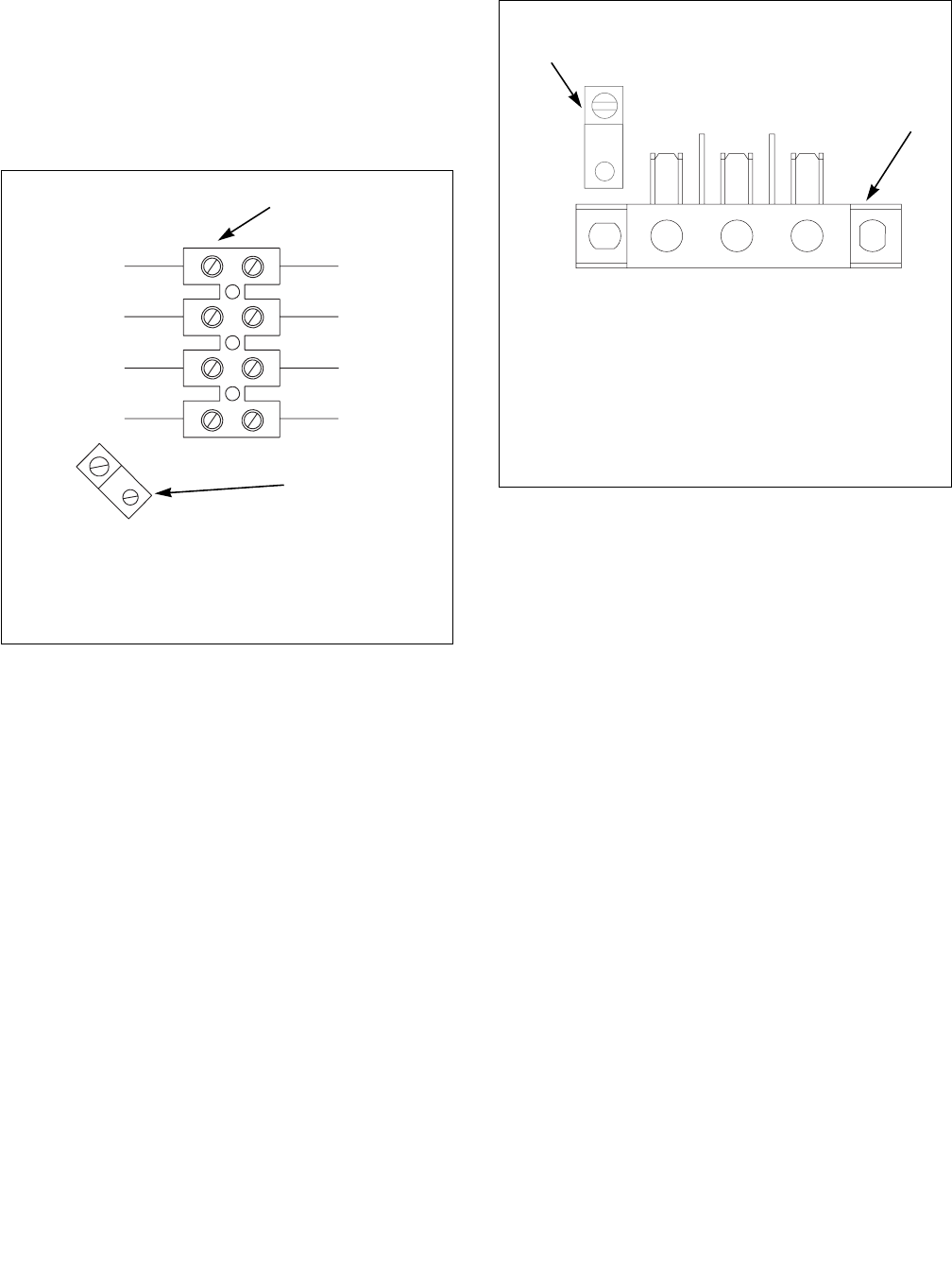

Figure 12
Refer to Figure 13 for the terminal strip for Design 5.
Figure 13
P039I
1 Power Input Block
2 Ground Lug: Connect to proven earth ground
P039I
2
1
N
White
S (L2)
Blue
R (L1)
Black
DESIGNS 1-4
T (L3)
Red
P037I
1 Ground Lug: Connect to proven earth ground
2 Power Input Block
1
DESIGN 5
(L1)
R
Black
(L2)
S
Blue
(L3)
T
Red
Connections to
Control Module
2
