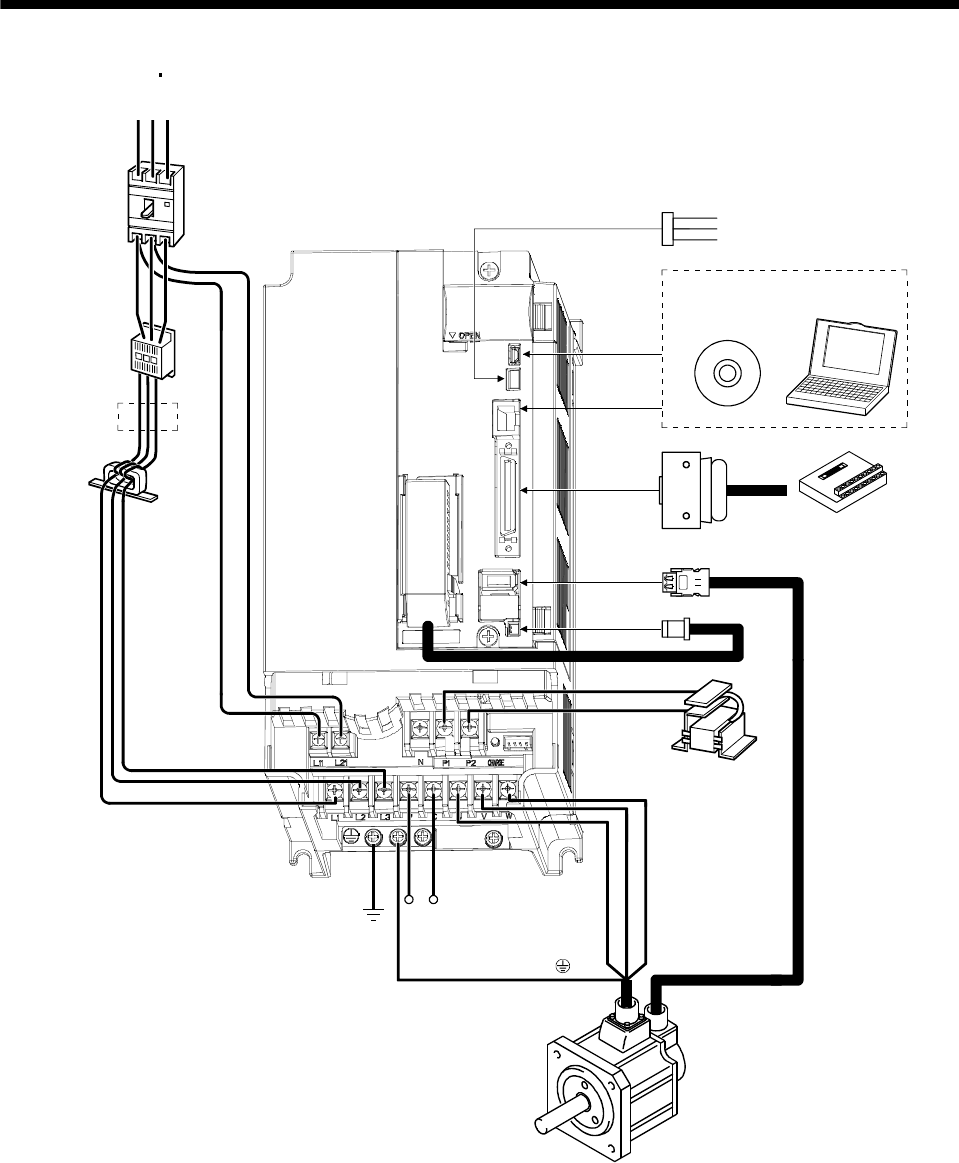

1. FUNCTIONS AND CONFIGURATION
(5) MR-J3-350A4
MR-J3-500A(4)
(Note 3)
Power supply
Line noise filter
(FR-BLF)
R S T
L21
P1
P
2
CN5
CN3
CN2
CN4
CN1
CN6
L11
UVW
CP
L1
L
2
L
3
Magnetic
contactor
(MC)
No-fuse breaker
(NFB) or fuse
(Note 2)
Servo amplifier
Regenerative
option
(Note 2)
Power factor
improving DC
reactor
(FR-BEL-(H))
(Note 1)
Battery
MR-J3BAT
Junction terminal block
MR Configurator
Analog monitor
Personal
computer
Servo motor
Note 1. The battery (option) is used for the absolute position detection system in the position control mode.
2. The power factor improving AC reactor can also be used. In this case, the power factor improving DC reactor cannot be used.
When not using the power factor improving DC reactor, short P
1 and P2.
3. Refer to section 1.3 for the power supply specification.
