12 - 51
12. OPTIONS AND AUXILIARY EQUIPMENT
12.4 Power regenerative converter
POINT
When using the FR-RC-(H) power regenerative converter, refer to "Power
Regeneration Converter FR-RC Instruction Manual (IB(NA)66330)".
When using the power regenerative converter, set "
01" in parameter No.PA02.

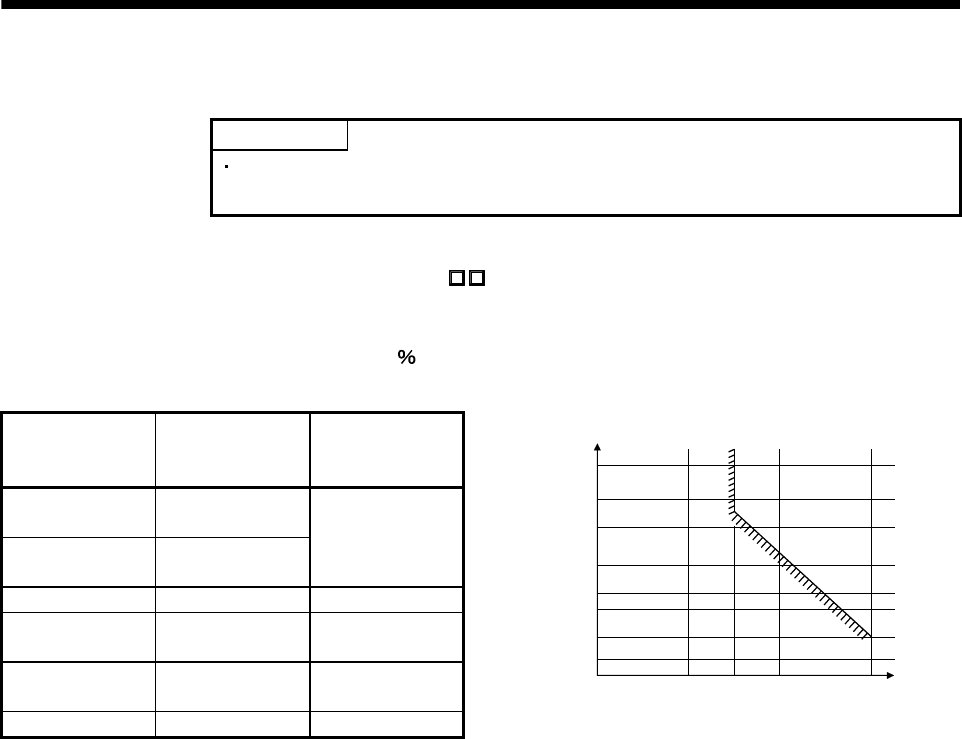

(1) Selection
The converters can continuously return 75
of the nominal regenerative power. They are applied to the
servo amplifiers of the 5k to 22kW.
Power regenerative
converter
Nominal
regenerative
power (kW)
Servo amplifier
050
75
100 150
500
300
200
100
50
30
20
Continuous energization time [sec]
Nominal regenerative power (%)
FR-RC-15K 15
MR-J3-500A
MR-J3-700A
FR-RC-30K 30
MR-J3-11KA
MR-J3-15KA
FR-RC-55K 55 MR-J3-22KA
FR-RC-H15K 15
MR-J3-500A4
MR-J3-700A4
FR-RC-H30K 30
MR-J3-11KA4
MR-J3-15KA4
FR-RC-H55K 55 MR-J3-22KA4
