Reference, Installation, and Operations Manual Section 2: Product overview
3-9000-743 Rev S June 2013
Model 3410 meter body 19
2.2.4 Model 3410 meter body
See Figure 2-11 JuniorSonic
TM
Serves as the core of the unit
Features an acoustic-signal scheme for measuring transit time on one bounce path for
calculating gas flow
Has port connections for mounting the unit's ultrasonic transducers
Transducer location allows for natural drainage under wet gas conditions

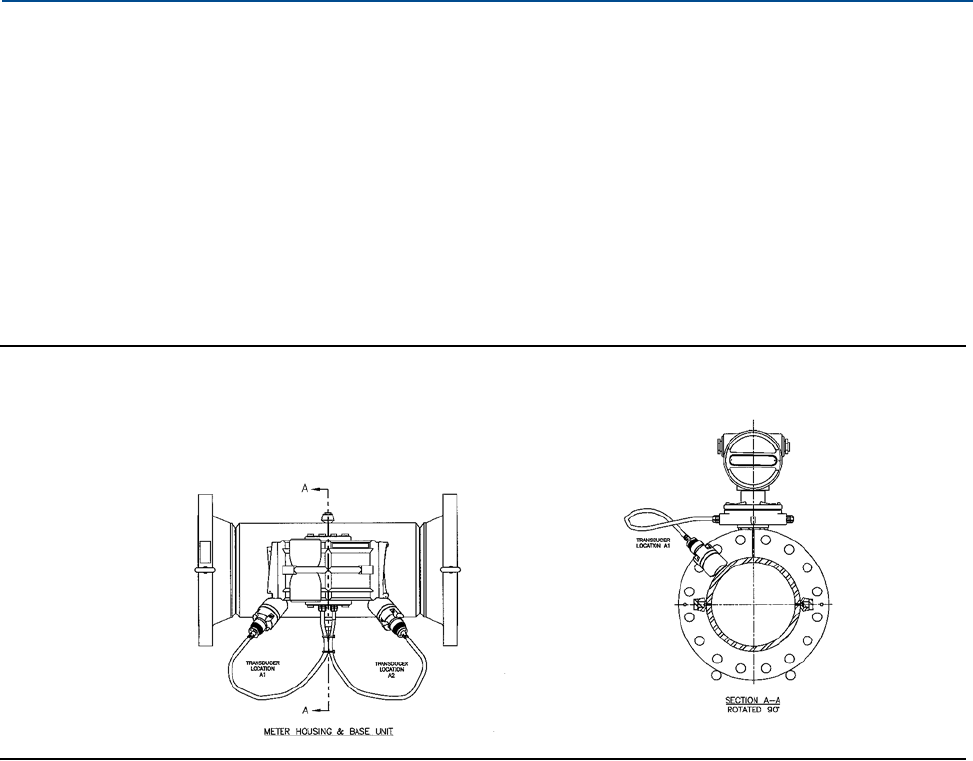

Figure 2-11 JuniorSonic
TM
Model 3410 meter body
