AXIS 231D+/232D+ - Event Configuration
Motion detection
In the Motion Detection menu, you can configure the video source(s) for motion detection.
The motion detection feature is used to generate an alarm whenever movement occurs (or
stops) in the image. The AXIS 231D+/232D+ can use a maximum of 10 Include/Exclude
windows.
• Include win
dows target specific areas within the image
• Ex
clude windows are areas to be ignored within the Include window
Once configured, the motion detection windows appear in a
list when motion detection is
selected to trigger an event. See How to set up a triggered event above.
Note:
Using the motion detection feature may decrease overall performance in the video server.

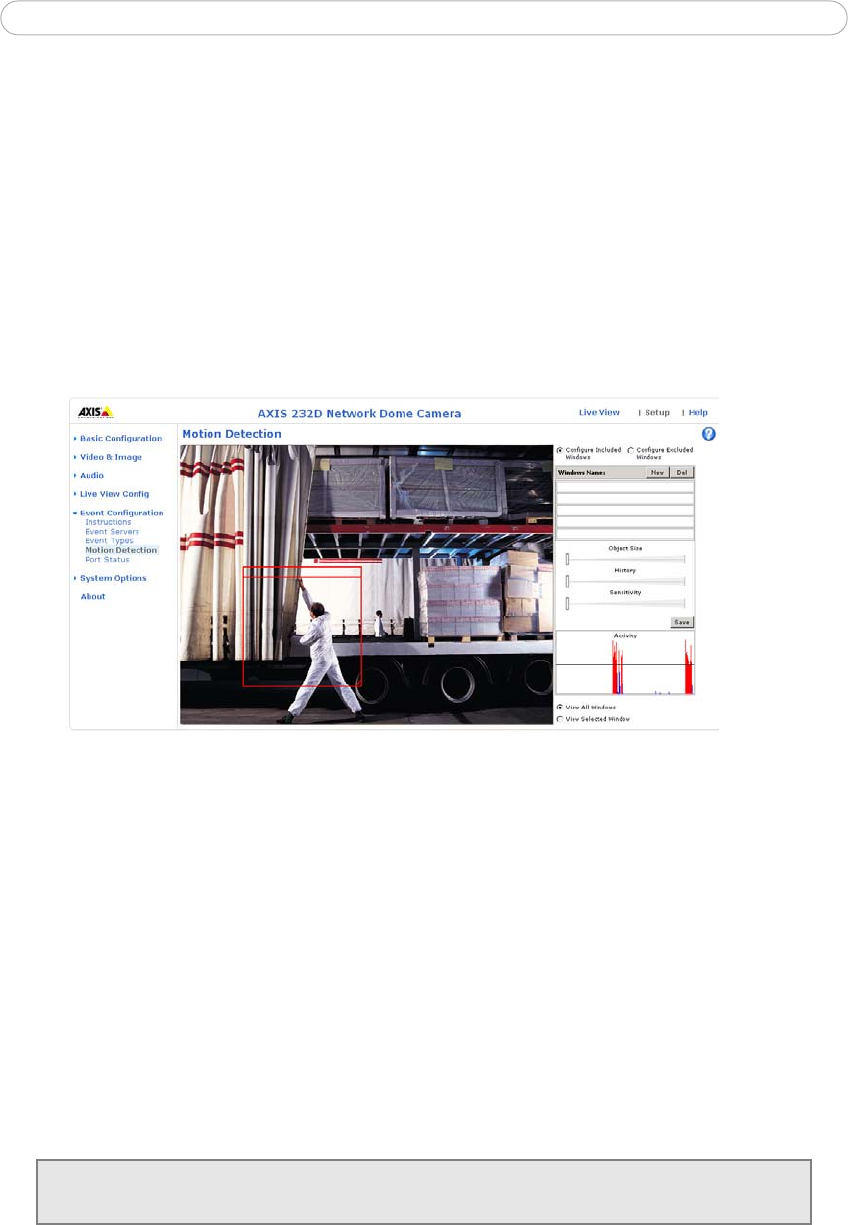

How to configure Motion Detection
This example describes how to configure motion detection:
1. Click Motion Detection in the Event Configuration menu.
2. Click the Configure Included Windows radio button.
3. Click New.
4. Enter a descriptive name of your choice under Windows name.
5. Adjust the size (drag the bottom right-hand corner) and position (click on the text
at the top and drag to the desired position).
6. Adjust the Object size, History and Sensitivity profile sliders (see table below for
details). Any detected motion within an active window is then indicated by red
peaks in the Activity window (the active window has a red frame).
7. Click Save.
If there are parts of the Include window that you wish to exclude, click the
Configure Excluded Windows radio button and perform steps 1-6 above. Click Save.
