AXIS 231D+/232D+ - Dome Configuration
Dome Configuration
Preset Positions
A preset position is a pre-defined camera view than can be used to quickly move the
camera to a specific location.
From Prese

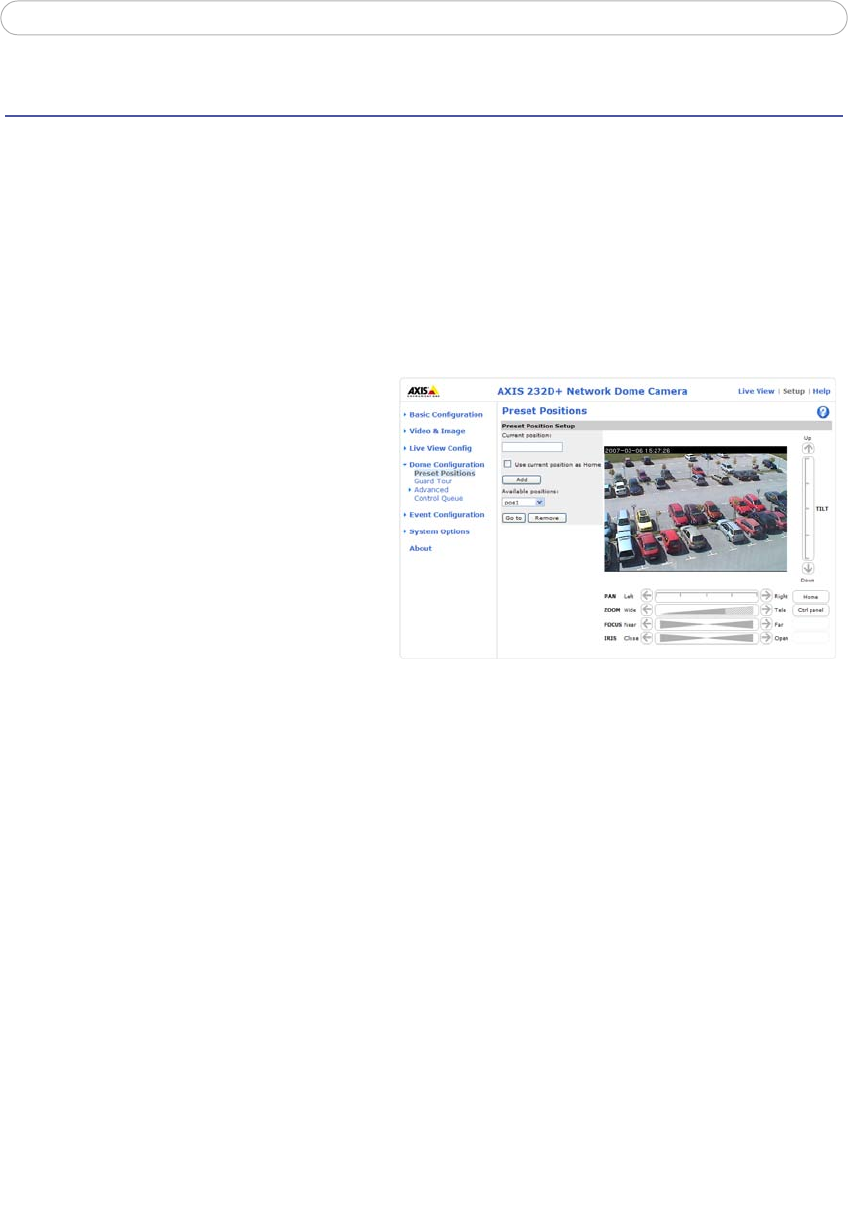

t Position Setup, use the Pan, Tilt and Zoom (PTZ) controls to steer the camera
to the required position. When satisfied with the camera's position, enter a descriptive
name. The camera position, iris and focus settings are then saved as a preset position.
The position can be assumed at any
time, by selecting the preset's name
from th
e Preset positions drop-down list.
Preset positions can be selected in Live
View, from events, in Sequence mode
and in the Guard Tour.
One position can be set as the Hom
e
position, which is readily accessible by
clicking on the Home button in both the
Preset Position Setup window. The
position's name then displays Home (H)
after it, such as Office Entrance Home
(H).
Guard Tour
A guard tour moves between chosen Preset Positions, one-by-one, in a pre-determined
order or at random, and for configurable time periods. Unlike the Sequence Mode, which is
a viewing application under Live View Config (see Live View Config,
on page 20), the
guard tour sequence keeps running after the user
has logged off or closed the browser.
Once the preset position has been set, and
added to the guard tour, the following settings
can be made:
• Set a pause between runs
•
Add and remove positions
• View Time in seconds or minutes
• Move Speed - sets the speed of the Pan/Tilt movements to the preset position
• View Order (or Random)
