AXIS 231D+/232D+ - Event Configuration
Pre-trigger and Post-trigger buffers
This function is useful for checking what happen
ed immediately before and after a trigger
- for example, 10 seconds before and after a door has been opened.

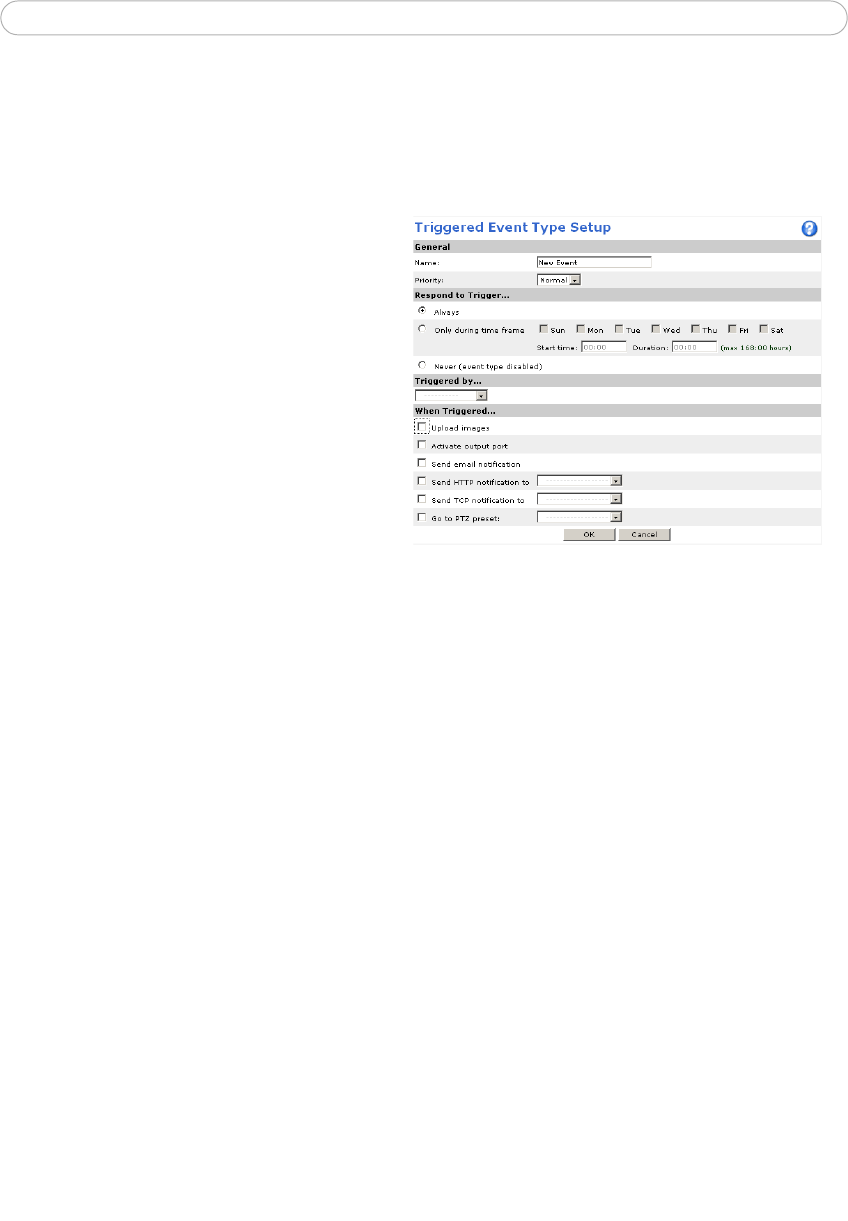

Go to Event Types > Add Triggered...
>
When Triggered... and check the Upload
images checkbox to expand the web page
with the available options.
Buffer size -
up to 9 MB buffer. The
maximum length of time of the
pre-/post-buffer depends on the image
size and selected frame rate.
Include pre-trigger buffer - images stored
intern
ally in the server from the time
immediately preceding the trigger. Check
the box to enable the pre-trigger buffer,
enter the desired length of time and
specify the required image frequency.
Include post-trigger buffer -
contains images from the time immediately after the trigger.
Configure as for pre-trigger.
Notes:
If the pre- or post-buffer is too large for the internal memory, the frame rate is reduced and individual
images may be missing. If this occurs, an entry is created in the unit's log file.
Pre-trigger and Post-trigger buffers are lost if the connection to the event server fails.
Continue image upload (unbuffered) - enable the upload of images for a fixed length of
time. Specify the length of time for the uploaded recording, in seconds, minutes or hours,
or for as long as the trigger is active. Finally, set the desired image frequency to the
maximum (the maximum available) or to a specified frame rate. The frame rate will be the
best possible, but might not be as high as specified, especially if uploading via a slow
connection.
