34
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Step 11. HOOD INSTALLATION
(Refer to Figure 55) All of these appliances must have hoods installed
prior to operating.
Install hood by sliding it into the slots on the lower edge of the cabinet top.
FINISHING REQUIREMENTS - Wall Details
Complete finished interior wall. To install the appliance facing flush with
the finished wall, position framework to accommodate the thickness of
the finished wall (Figure 55).
See Page 5 for Cold Climate Insulation
and Page 8 for Clearances
Top Of Appliance
3"
(76 mm)
This Area Must
Remain Clear of
Combustible
Materials
1 in. Min.
(25 mm)

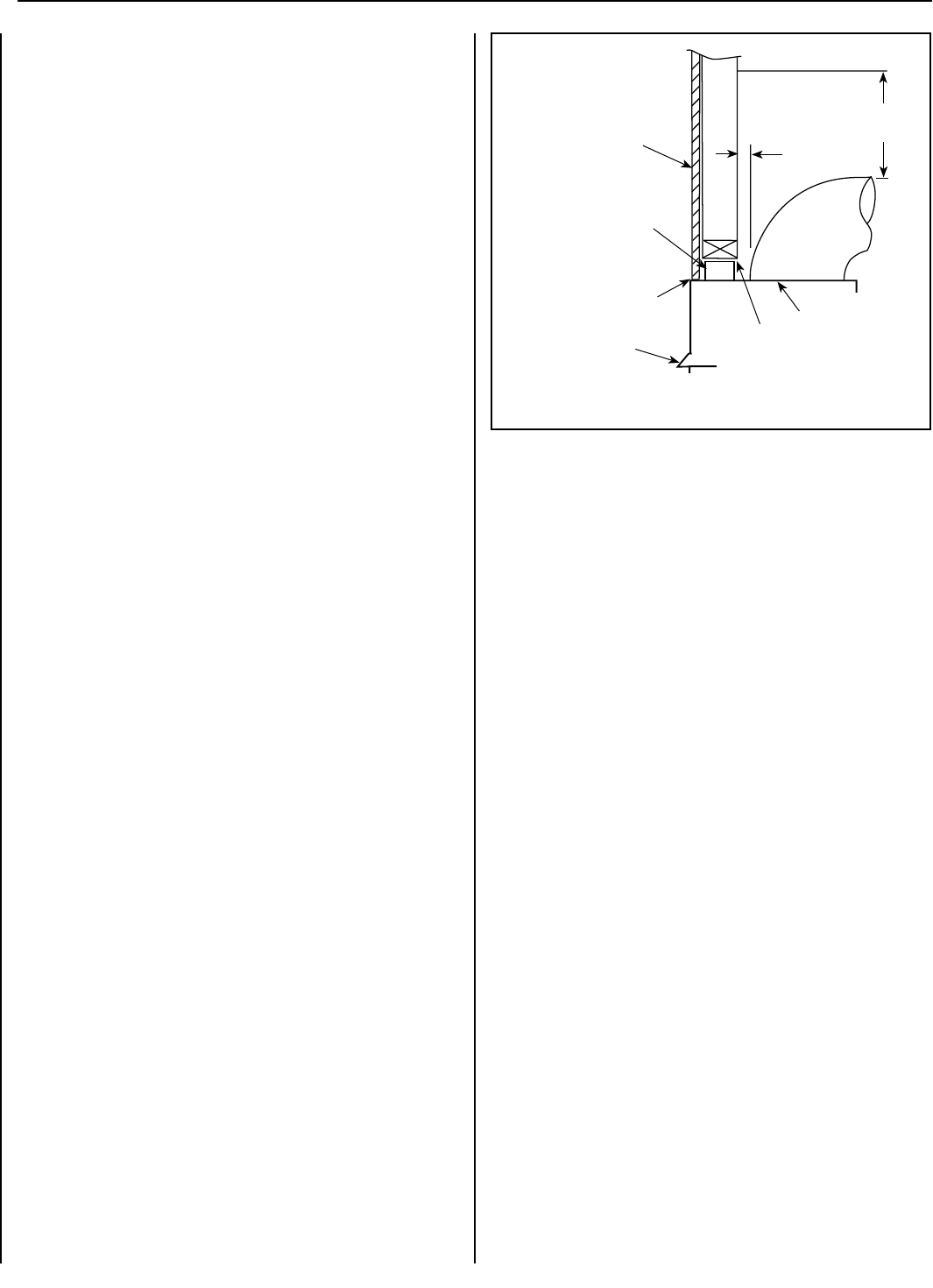

Figure 55 - Combustible Wall Framing
Combustible Finished
Wall Materials
Combustible Material May
Touch The Appliance Top
Hood
3" Clearance Min.
Stand Off Must Be Bent To
Vertical Position
SUPERIOR DIRECT-VENT GAS FIREPLACES • MODELS SLDVT-30/35/40/45 • INSTALLATION INSTRUCTIONS
