31
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

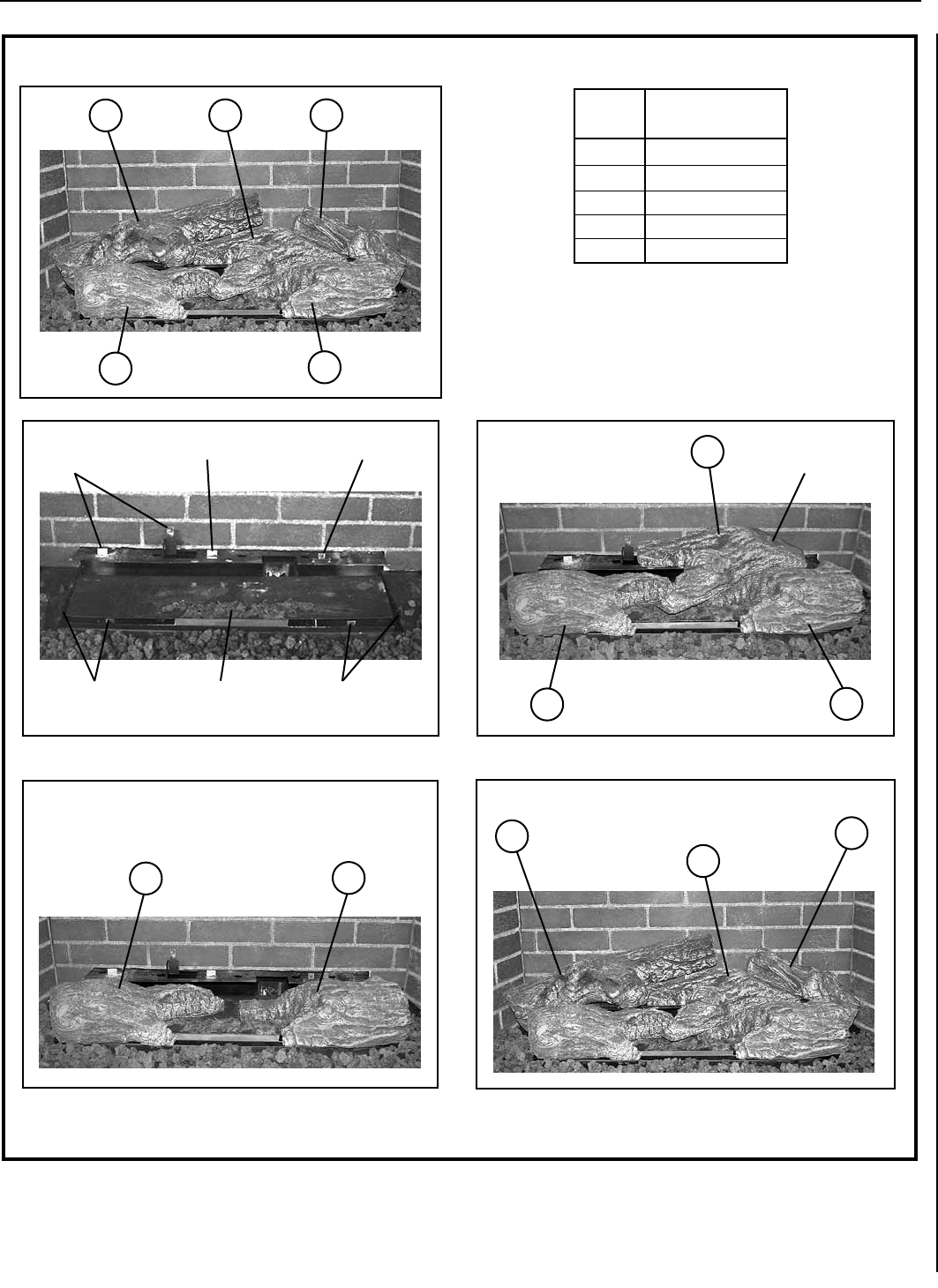

SLDVT-45 LOG PLACEMENT
Step 2
Step 3
Step 1
Step 4
Figure 49
Log
Number Description
1 Left Front Log
2 Right Front Log
3 Center Log
4 Left Rear Log
5 Right Rear Log
Catalog Number for the entire
log set: H7547
Rest the bottom
of log (5) over the
"Groove" of log
(3) as shown.
Align holes at the bottom of left front log (1) over the left
front brackets and the right front log (2) over the right front
brackets.
5
2
1
3
4
5
Left Rear
Brackets
Right Rear Bracket
Right Front BracketsLeft Front Brackets
Center Rear Bracket
Rockwool
(Do Not Place Rockwool Over Burner Slots)
2
1
3
1
Center Log "Groove"
2
Align holes at the bottom of
center log (3) over the center
and right rear brackets.
3
4
Align holes at the
bottom of left rear
log (4) over the left
rear brackets.
SUPERIOR DIRECT-VENT GAS FIREPLACES • MODELS SLDVT-30/35/40/45 • INSTALLATION INSTRUCTIONS
