NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
REFERENCE
Firebox Accessories / Parts
Cat. No. Model No. Description
88L53 FGE Bag of Glowing Embers
80L42 FDVS
Bag of Decorative
Volcanic Stone
Volcanic Stone
4. Placement of Glowing Embers -
Separate the Embers (rockwool) into pieces
about the size of a quarter (see Figure 46). Keep
the pieces fluffed up, not matted. Distribute
these pieces over the surface of the burner,
as shown in Figures 47, 48 and 49. Do not
use more than is necessary. Ensure that the
main burner slots remain uncovered by the
ember material. Position the embers on the
small holes of the ember bed area.
Note: This appliance is provided with enough
Glowing Embers for several applications, do
not use all that is in a new bag at one time.
For best glowing effect, replace the ember
material annually.

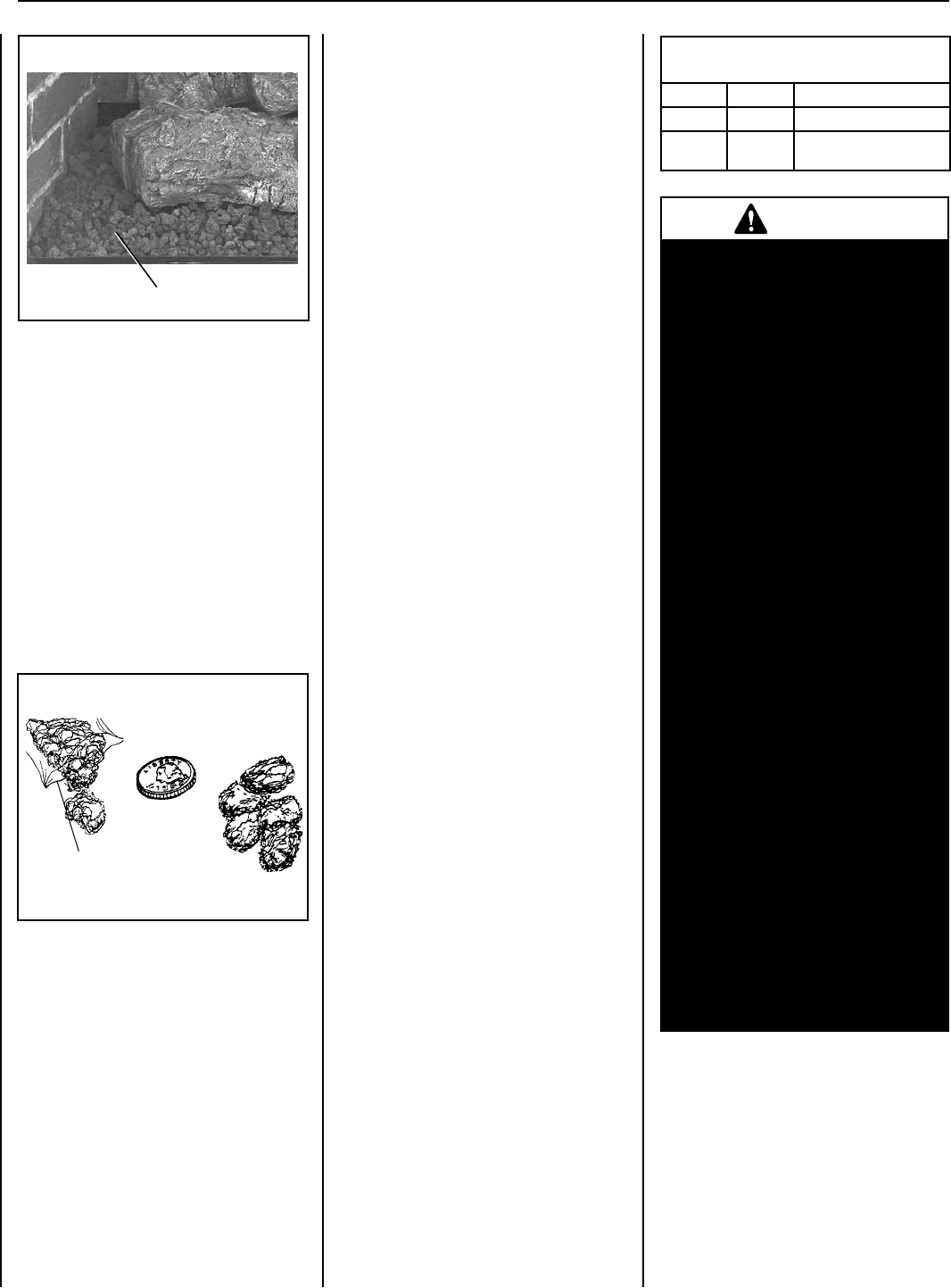

Figure 45
Place Volcanic
Stone As Shown
WARNING
• DO NOT attempt to install the logs
until the appliance installation
has been completed, the gas line
connected and tested for leaks
and the initial burner operation
has been checked out.
•
The size and position of the log
set was engineered to give the
appliance a safe, reliable and
attractive flame pattern. Any
attempt to use a different log set
in the fireplace will void the war-
ranty and will result in incomplete
combustion, sooting, and poor
flame quality.
•
Logs get very hot and will remain
hot up to one hour after gas
supply is turned off. Handle only
when logs are cool. Turn off all
electricity to the appliance before
you install grate, volcanic stone,
vermiculite, embers and logs.
•
This appliance is not designed
to burn wood. Any attempt to
do so could cause irreparable
damage to the appliance and
prove hazardous to your safety.
•
If logs are not installed according
to the log installation instruc-
tions, flame impingement and
improper combustion could
occur and result in soot and/or
excessive production of carbon
monoxide (CO), a colorless,
odorless, toxic gas.
Glowing Embers
Bag of Glowing
Embers (rockwool)
Separate into Quarter
Size (separate) Pieces
Figure 46
SLDVT-30 and 35 - Install the four logs as
Follows:
Carefully position the ceramic fiber logs over
the burner as shown in Figure 47. Logs should
be placed in the order shown and per the fol-
lowing instructions.
1. Place the left front log (1) as shown. Posi-
tion it on the two left front log brackets.
2. Place the right front log (2) as shown. Posi-
tion it on the two right front log brackets.
3. Place the left rear log (3) as shown. Posi-
tion it on the upper and lower left rear log
brackets.
4. Place the right rear log (4) as shown. Posi-
tion it on the right rear log bracket. Note that
the hole on the bottom of the right rear log
rests over the "Nub" on the right front log.
SLDVT-40 - Install the four logs and Ember
Chunk as Follows:
Carefully position the ceramic fiber logs over
the burner as shown in Figure 48. Logs should
be placed in the order shown and per the fol-
lowing instructions.
1. Place the ember chunk (1) over the tab on
the rear log support as shown.
2. Place the left front log (2) as shown. Posi-
tion it on the two left front log brackets.
3. Place the right front log (3) as shown. Posi-
tion it on the two right front log brackets.
4. Place the left rear log (4) as shown. Position
it on the left rear log bracket.
5. Place the right rear log (5) as shown. Posi-
tion it on the right rear log bracket. Note that
the hole on the bottom of the right rear log
rests over the "Nub" on the right front log.
SLDVT-45 - Install the five logs as Follows:
Carefully position the ceramic fiber logs over
the burner as shown in Figure 49. Logs should
be placed in the order shown and per the fol-
lowing instructions.
1. Place the left front log (1) as shown. Posi-
tion the holes on the bottom of the log on the
two left front log brackets.
2. Place the right front log (2) as shown.
Position the holes on the bottom of the log on
the two right front log brackets.
3. Place the center log (3) over the center and
right rear log brackets as shown.
4. Place the left rear log (4) as shown. Position
the holes on the bottom of the log on the left rear
log brackets. Log also rests on center log (3).
5. Place the right rear log (5) as shown. Rest
the bottom of the log over the groove on the
center log.
5. Placement of Logs -
All logs that have locating notches or slots to
help ensure that they are properly positioned.
All top logs that rest on lower logs, do so over
notches, indents or nubs. Proper log placement
is critical to prevent sooting. Logs should be
placed in the gaps between the flame peaks and
should be positioned so they do not impinge
the flames.
