OPTIONAL PANEL KIT:
This kit must be installed before the unit is started.
20

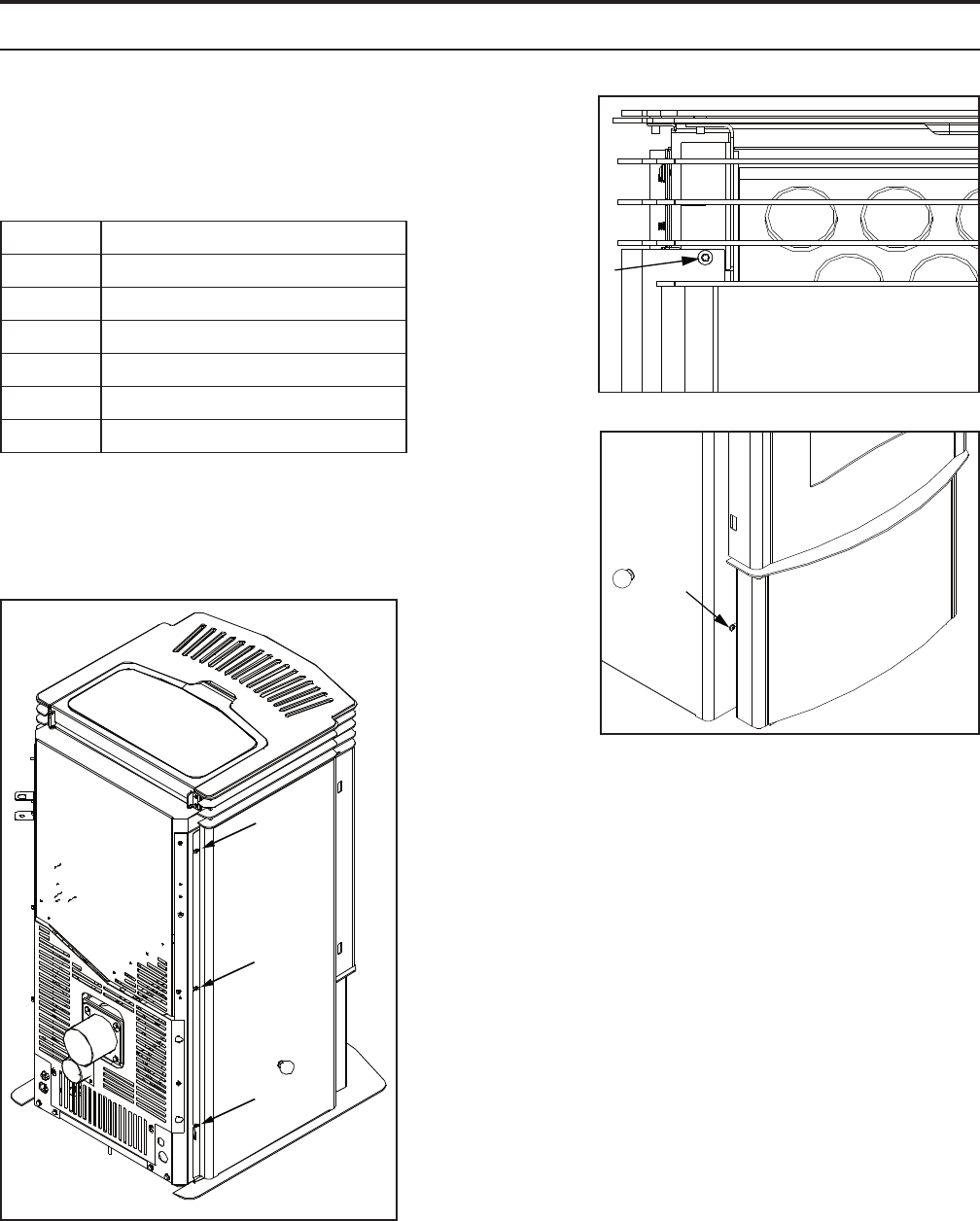

Figure 30: Screws at back of the cab side.
Figure 28: Screws above door top corner.
Figure 29: Screw behind ash box.
Tools Required:
●T-20 screwdriver
Kit Components:
Quantity Description
1
Left Cab Panel
1
Right Cab Panel
1 Hopper Lid
20 #8 T-20 screws (” long)
2 Hopper Bracket
2 Bushing ” O.D. x ” long
Please ensure that all components are supplied with this kit.
If components are missing or have been damaged, contact
your dealer, distributor or courier company before starting this
installation.
Installing the Panels:
1. Remove the screws above the door on both sides (Figure
28).
2. Ensure the screws behind the ash box, one on each side
(Figure 29) and the three (3) on each side at the back
(Figure 30) are loosened.
3. Slide the three (3) slots at the back of the cab panels
under the three (3) screws at the back.
4. Optional for Left Side: Line up the slider rod with the hole
in the cab panels, slide it through, and install the knob.
5. Slide the front of the cab panels over the screw behind
the ash box.
6. Install the screw above the door and tighten all screws.
