NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
17

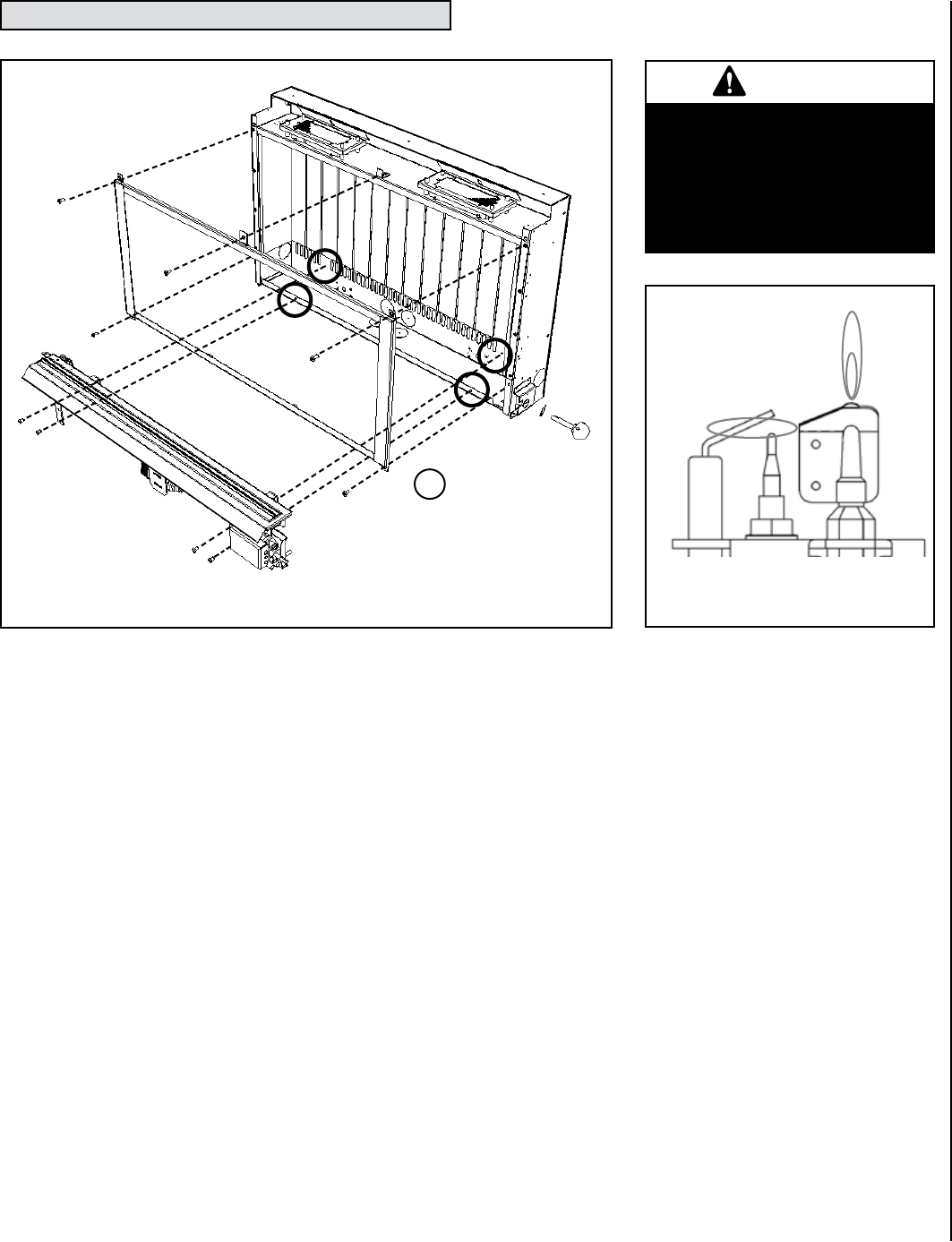

30.0 POSITIONING OF FIELD REMOVABLE PARTS
4 off burner installation positions
Glass Door Removal: Remove
the four (4) screws indicated,
then lift door off.
4 off burner
installation
positions
Figure 21
WARNING
Failure to position the parts in
accordance with these diagrams
or failure to use only parts specifi-
cally approved with this heater
may result in property damage
or personal injury.
Figure 22
Visual check for cor-
rect pilot flame.
