Brick Panel Assembly
Install the optional Brick Panels before placing the
Logset. Place the panels in position in the order as
numbered in fig. 37. No fasteners or tools are
required.

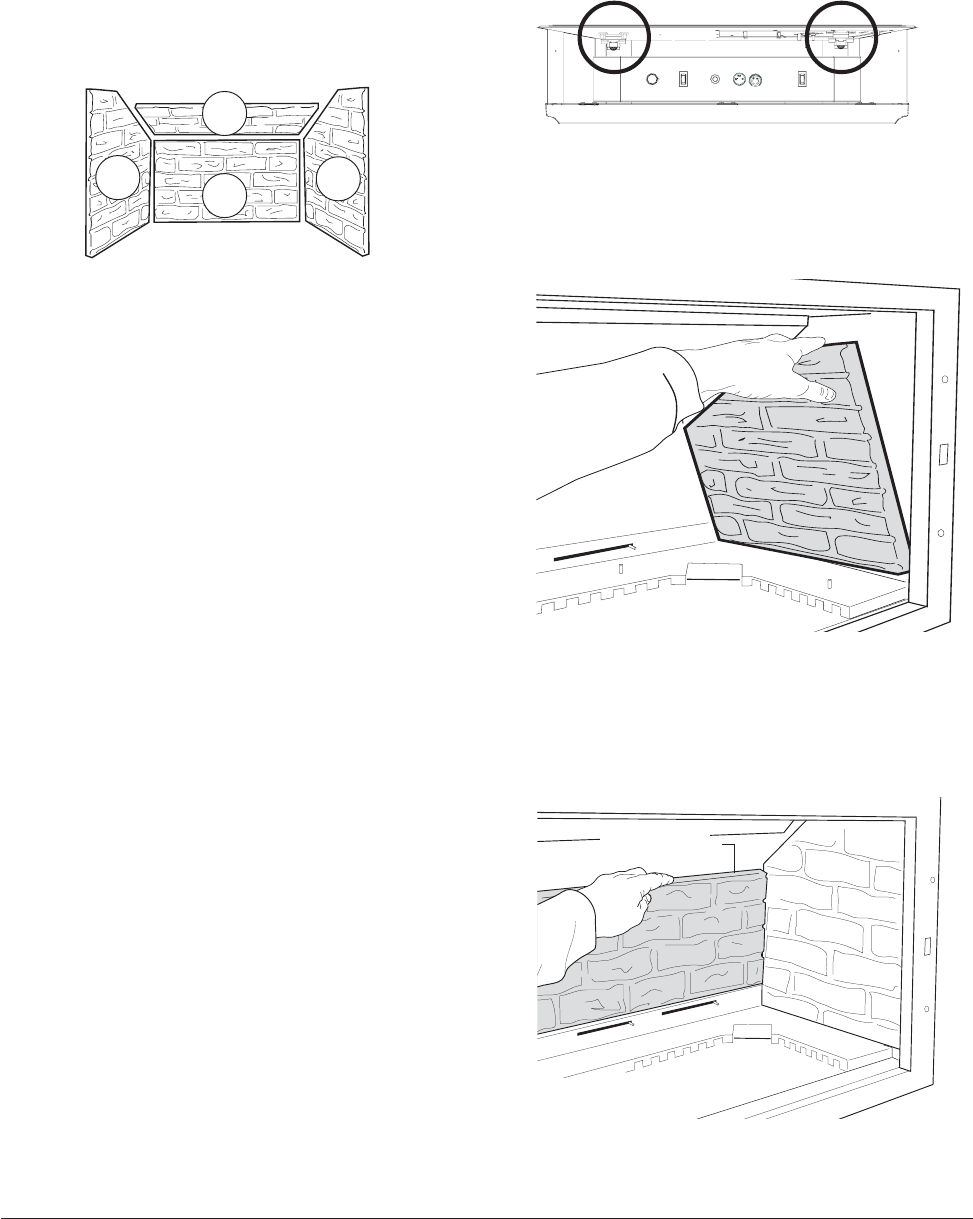

Figure 37. Panel installation order.
1. Remove the Glass Frame, if you have not already
done so. Open the lower control panel and locate
the two frame latches under the firebox floor. See
fig. 38 . Pull the latch handle forward to
disengage it from the bottom of the glass frame.
You can then pull the frame out and up off of the
three retainer tabs at the top of the firebox
opening. Set the Glass Frame out of the way.
2. Remove the Fettle and Logset. These parts are not
fastened. Simply lift them out of the firebox.
3. Install the Side Panels. Set the bottom edge of
each side panel on the Burner Skirt and against
the firebox wall. Push the panel forward against
the front lip of the firebox opening. See fig. 39.
4. Install the Lower Rear Panel. Orient the panel so
that the beveled edge is on top and the mortar
joints align with those on the side panels. Set the
bottom edge on the shelf above the restrictor
adjustment slots at the back of the firebox. The
panel should fit snugly between the two side
panels. See fig. 40.
5. Install the Upper Rear Panel. This will also be a
snug fit. Set the panel up high and then carefully
lower it to seat its lower edge against the top of
the other rear panel. The side panels will hold it in
place.
Left Side
Panel,
220997
Right Side
Panel,
220996
Lower Rear Panel,
220030
Upper Rear Panel,
220031
4
3
2
1
Figure 38. Glass Frame latch locations.
Pull Frame Latches to
Release Frame
Figure 40. Install Lower Rear Panel.
Bevelled Edge
Figure 39. Install the Side Panels.
Side
Panel
Burner Skirt
