2-8 Getting Started

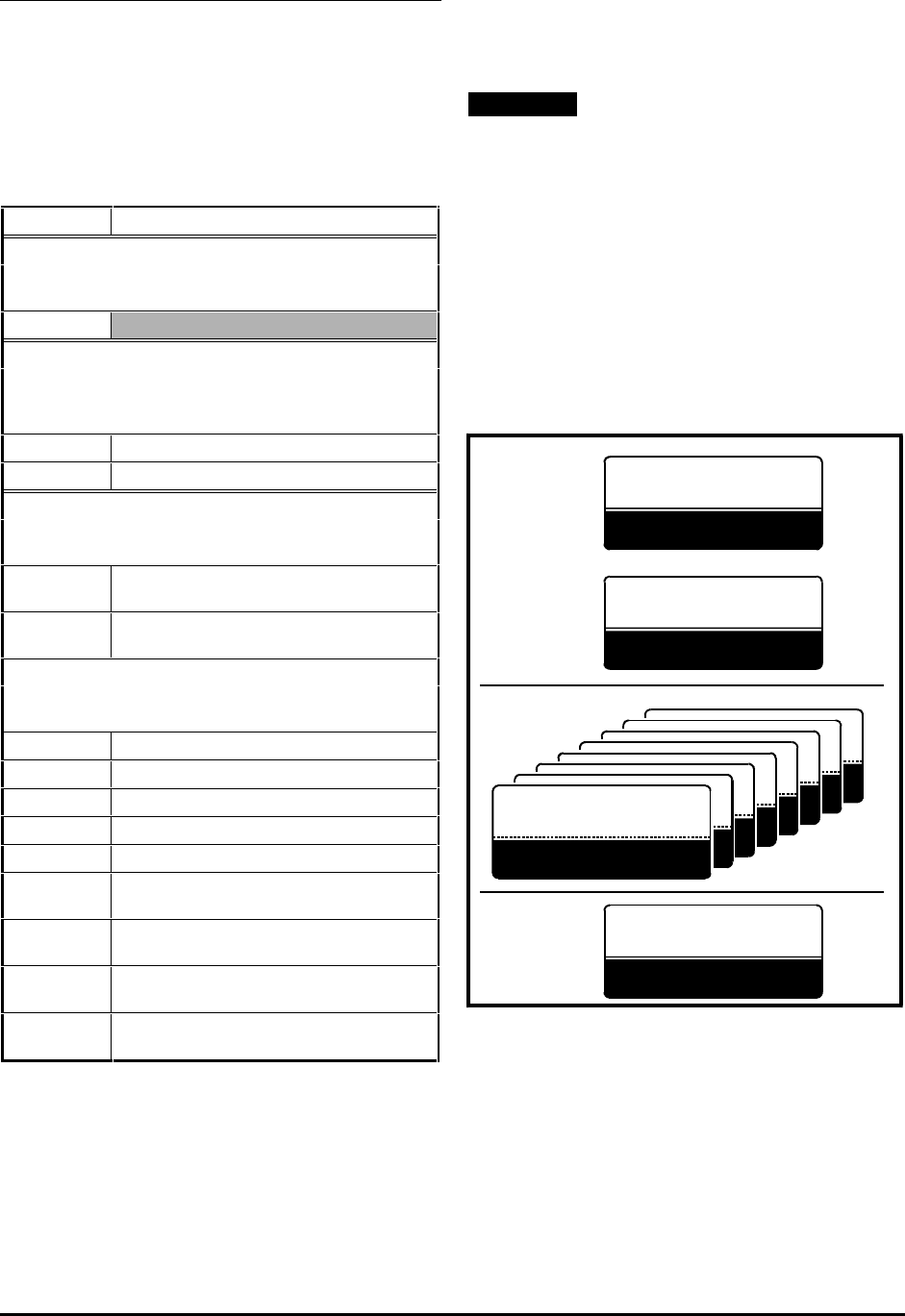

Parameter 0.00
Parameter 0.00 is a special read–write parameter
that is used for the following:
• Saving new values given to parameters
• Controlling security
• Enabling macro configurations
These functions are controlled by the user entering
specific values, as shown below:
Value Function
Saving new parameter-values
The Drive can be running or stopped
(described in Appendix A Operating Instructions)
1000
Controlling security
The Drive can be running or stopped
(described in Appendix B Security and Accessing the
Advanced Parameters)
0 ~ 255 User security code
2000 Lock security
Restoring the Drive to a default configuration
The Drive must be stopped
(described later in this chapter)
1233 Restore default values to all parameters for
50Hz
AC supply frequency (Europe)
1244 Restore default values to all parameters for
60Hz
AC supply frequency (USA)
Selecting Macros 0 to 7
The Drive must be stopped
(described in Chapter 3 Setting Up the Drive)
2001 Macro 1 Easy mode
2002 Macro 2 Motorized potentiometer
2003 Macro 3 Preset speeds
2004 Macro 4 Torque control
2005 Macro 5 PID (set-point) control
2006 Macro 6
Axis-limit control
2007 Macro 7
Brake control
2009 Macro 0 General purpose
(USA default configuration)
2010 Macro 0 General purpose
(EUR default configuration)
The Drive must be reset to make a newly selected
function or configuration take effect.
Instructions for using parameter 0.00 are given at
the appropriate places in this User Guide
2.5 How macro configurations
change the arrangement of
the Menu 0 parameters
Note
Do not confuse the term Macro with the
term Menu. Menu 0 contains parameters;
macro configurations re-define some of
these parameters to perform specific
functions. Menu 0 always exists, but is
affected by the macro configuration that is
enabled.
Only one macro configuration can be
enabled at a time.
Menu 0 contains 51 parameters which are arranged
in four groups, as shown in Figure 2–8.
Fixed-function parameters
Configuration and saving
parameter
0.00
0.01 ~ 0.10
0.11 ~ 0.30
Re-programmable parameters
Macro 0
1
2
3
4
5
Fixed-function parameters
0.31 ~ 0.50
Common to
all macros
Specific to
each macro
Common
to all
macros
6
7
Figure 2–8 How the Menu 0 parameters are
grouped and the relationship with
the macro configurations
