Duplex Route Separator Removal
7-100 Removal/Replacement Procedures

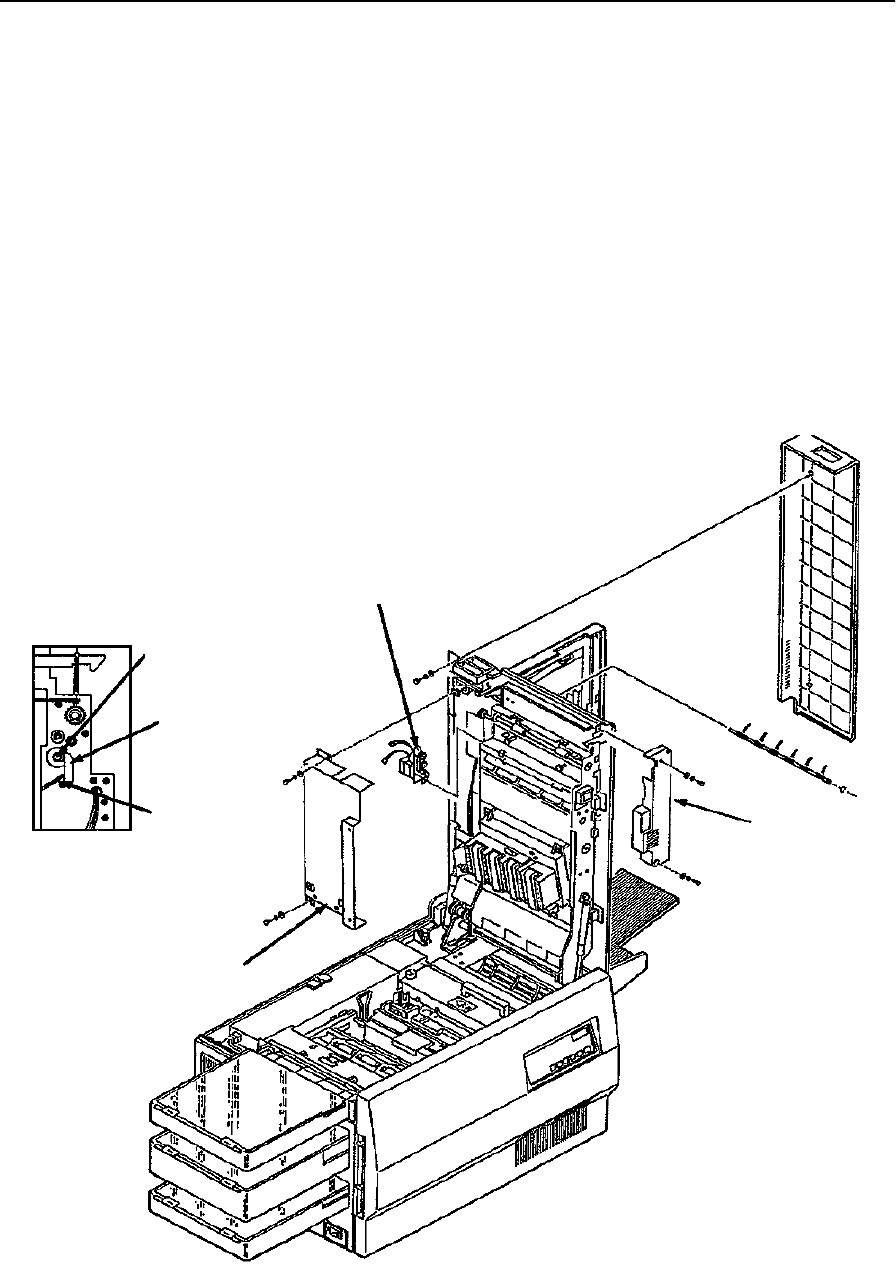

Duplex Route Separator Removal
To remove the duplex route separator:
1 Open the top cover.
2 Remove the rear duplex cover. (See page 7-17.)
3 Remove the upper duplex roller cover (four screws).
4 Remove the duplex route motor/solenoid assembly. (See page 7-95.)
5 Remove the front mechanism cover (two screws).
6 Open the duplex cover.
7 Remove screw holding the return arm in place.
8 Disengage the return spring.
Return Arm Screw
Return Arm
Return Spring
Side Detail
Duplex Route Motor/
Solenoid Assembly
Front
Cover
Upper Duplex
Roller Cover
Mechanism
