Exit Cover Removal (Simplex)
7-74 Removal/Replacement Procedures
Exit Cover Removal (Simplex)
To remove the simplex exit cover:
1 Open the front, back, and top covers.
2 Remove the fuser.
3 Remove the right side cover. (See page 7-9.)
4 Remove the paper output tray.
5 Remove the operator panel. (See page 7-19.)

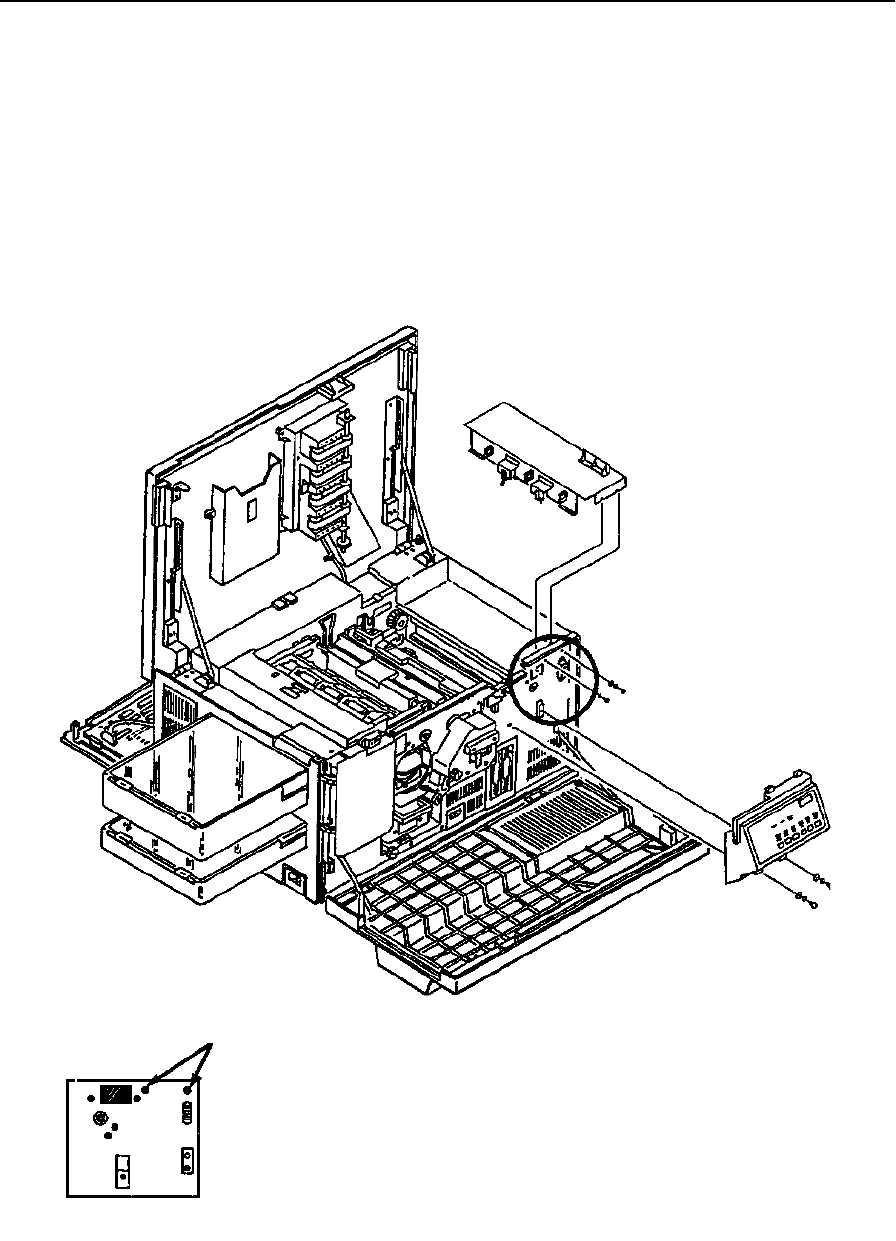

Mounting Screws
Front Detail
