Photoconductor Rear Guide Rail Removal
Removal/Replacement Procedures 7-35
Photoconductor Rear Guide Rail Removal
To remove the photoconductor rear guide rail:
1 Open the front, back, and top covers.
2 Remove the photoconductor and place in its protective packaging.
3 Remove the developer unit.
4 Remove the paper feed drive cover (three screws).
5 Remove the photoconductor seam sensor. (See illustration on page 7-33.)
6 Remove the spring at the base of the guide rail. To do this, gently pull the spring for-
ward off its post.
7 Disconnect CN64.
8 Remove the ground screw.
9 Remove CN64 from its bracket.

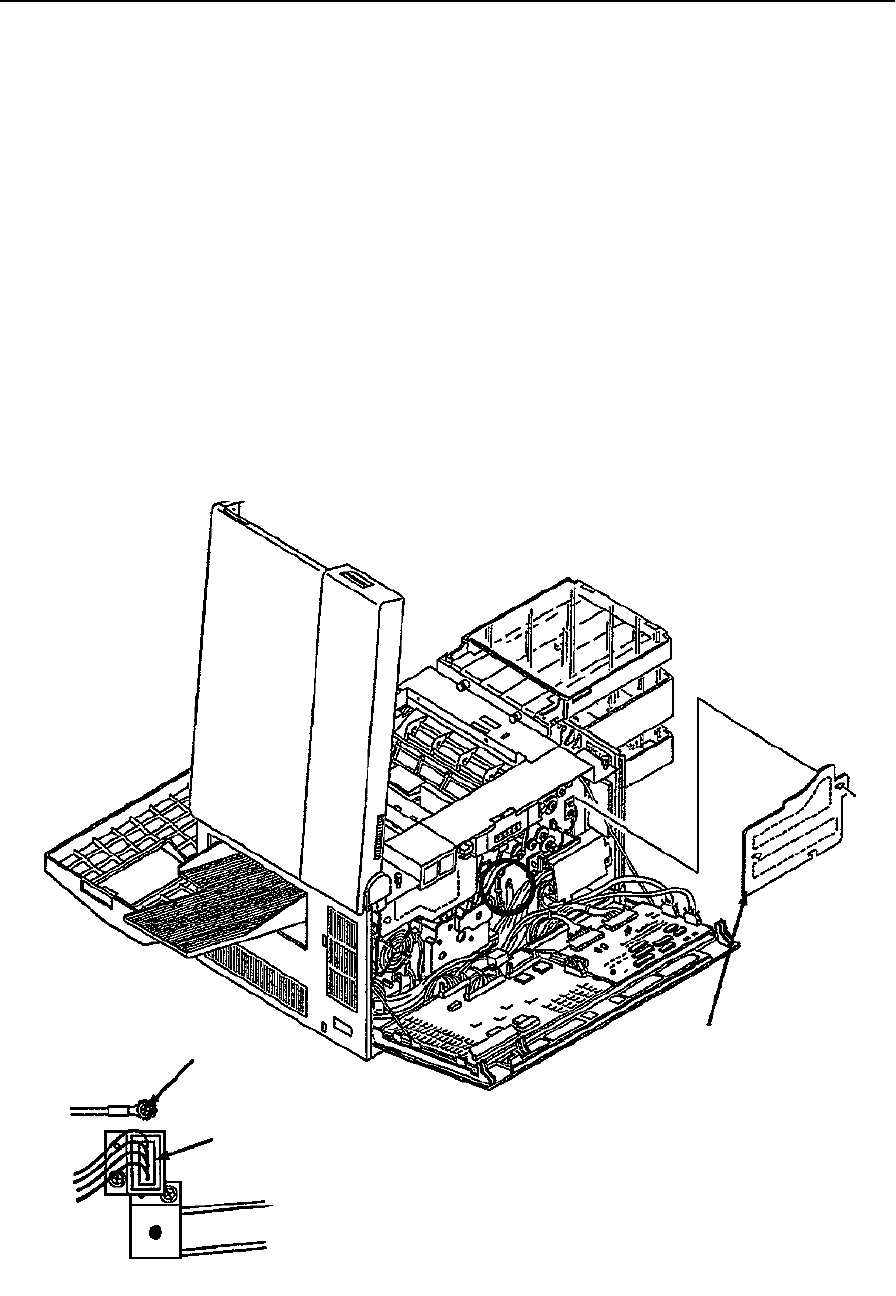

Ground Screw
CN64
Back Detail
Paper Feed Drive Cover
