Rear Duplex Cover Removal
Removal/Replacement Procedures 7-17
Rear Duplex Cover Removal
To remove the rear duplex cover:
1 Open the top cover.
2 Remove the lower screw for the rear duplex cover.
3 While supporting the cover, remove the upper screw for the rear duplex cover.
Replacement Note:
Do not substitute longer screws to hold the rear duplex cover in place.
Upper
Screw
Lower
Screw

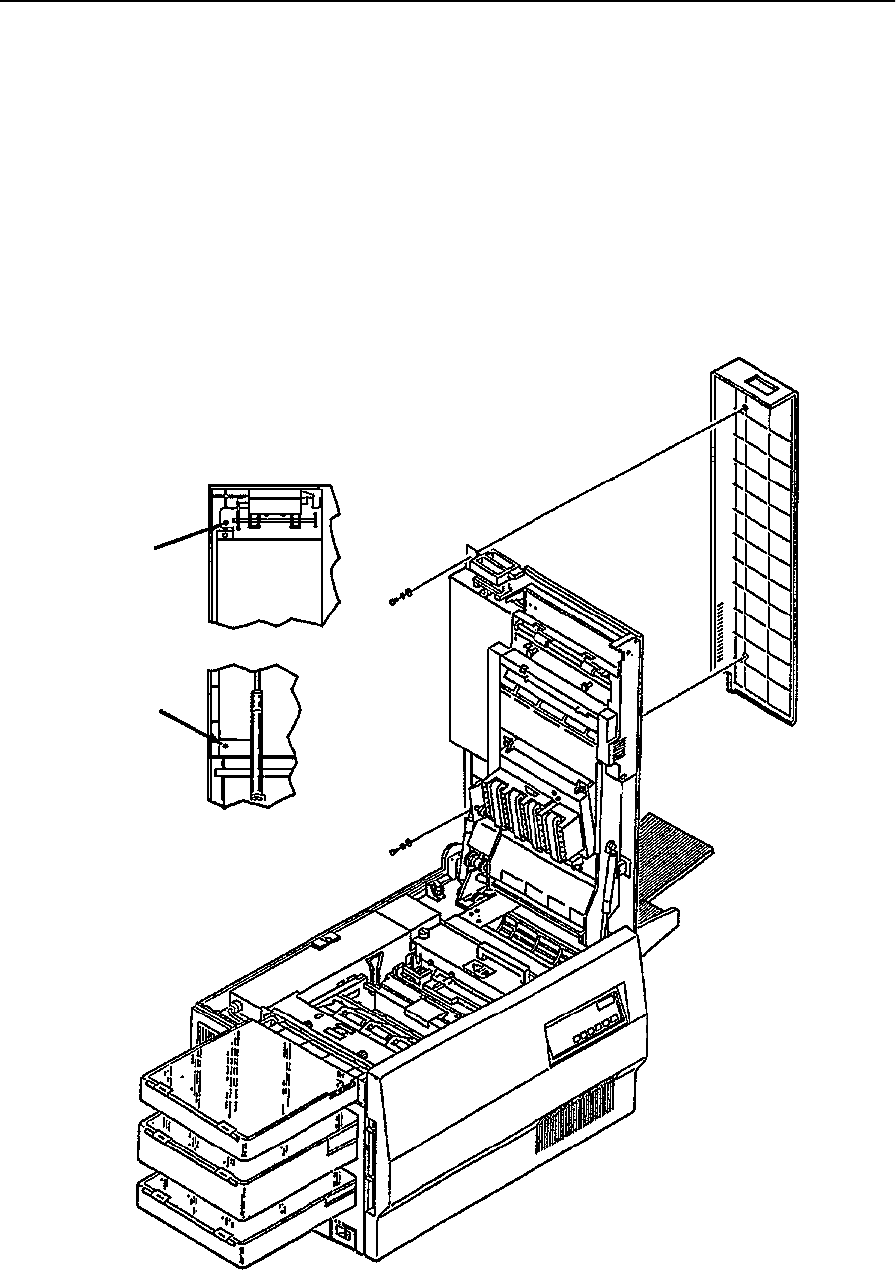

Mounting Screw Detail
