246814-YTG-D-0606
2 Unitary Products Group
1. Dual element fuses or HACR circuit breaker.
2. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15
feet, add or
subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
All dimensions are in inches. They are subject to change without
notice. certified dimensions will be provided upon request.
1. Including Fan Guard

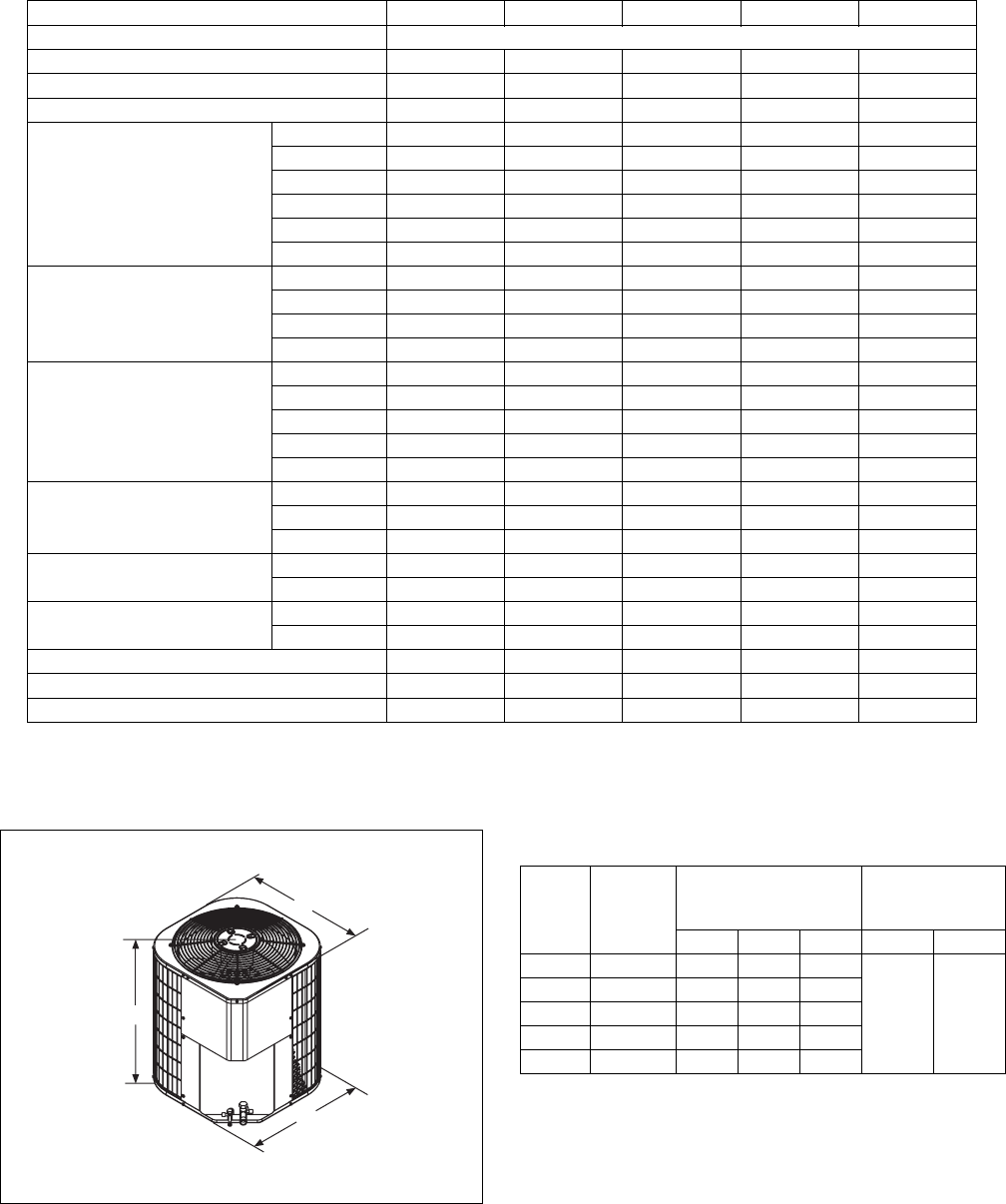

PHYSICAL AND ELECTRICAL DATA
MODEL AY012MA321 AY018MA321 AY024MA321 AY030MA321 AY036MA321
Unit Supply Voltage 208 - 230V, 1 Phase, 60Hz
Minimum Circuit Ampacity 8.9 9.5 12.0 14.5 18.2
Maximum Overprotection Device
1
15 15 20 25 30
Rated Load Amps 6.7 7.2 8.9 11 13.5
Compressor
Model 2K20S236T6A 2K22S236SUB 2J29S236A1A 2J35S236B1A H21J30BABCA
Brand Panasonic Panasonic Panasonic Panasonic Bristol
Type Rotary Rotary Rotary Rotary Recip
LRA 33.0 40.0 60.0 68.0 78.0
Start Kit Yes Yes Yes Yes No
CCH NoNoNoNoNo
Dimensions
Length (in) 21-3/4 21-3/4 21-3/4 21-3/4 21-3/4
Width (in) 21-3/4 21-3/4 21-3/4 21-3/4 21-3/4
Height (in) 22-1/2 22-1/2 24-1/4 26-3/4 30-3/4
Weight (lbs) 85 90 105 110 140
Fan & Motor
HP 1/12 1/12 1/8 1/8 1/4
RPM 1100 1100 1075 1075 1100
FLA 0.50.50.80.81.4
CFM 1450 1450 1700 1800 2150
Dia (in) 17-1/2 17-1/2 17-1/2 17-1/2 17-1/2
OD Coil
Area (ft^2) 7.26 7.26 7.89 8.77 10.17
Rows 11111
Fins / Inch 23 23 23 23 23
Connection OD
Liquid (in) 3/8 3/8 3/8 3/8 3/8
Suction (in) 3/4 3/4 3/4 3/4 3/4
Line Set OD
Liquid (in) 3/8 3/8 3/8 3/8 3/8
Suction (in) 5/8 5/8 5/8 3/4 3/4
Refrigerant R-22 R-22 R-22 R-22 R-22
Unit Charge (lbs - oz)
2
2 - 14 2 - 14 3 - 6 3 - 14 3 - 8
Charge Per Foot - oz 0.66 0.66 0.66 0.68 0.68
A
C
B
Unit
Model
Weight
(Lbs.)
Dimensions (Inches)
Refrigerant
Connection
Service Valve Size
A
1
B C Liquid Vapor
012 85 22-1/2 21-3/4 21-3/4
3/8” 3/4”
018 90 22-1/2 21-3/4 21-3/4
024 105 24-1/4 21-3/4 21-3/4
030 110 26-3/4 21-3/4 21-3/4
036 140 30-3/4 21-3/4 21-3/4
