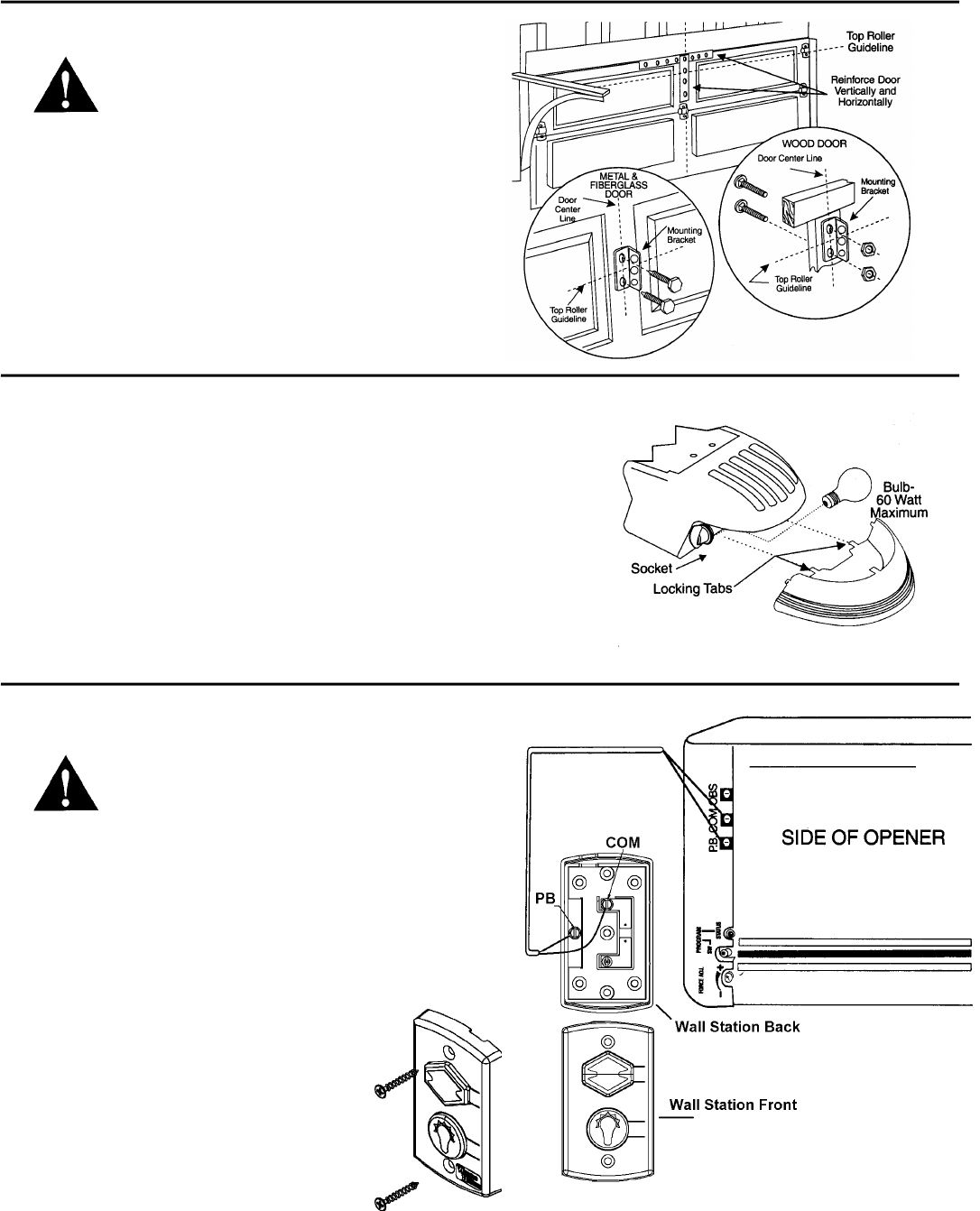

Step 6: Mounting Door Bracket
Fiberglass, aluminum and steel doors must
be reinforced to prevent damage to the
door. Check with your garage door manu-
facturer for their recommendations.
Reinforce light weight doors, as illustrated.
For wood doors, mount door bracket, using two 1/4”-20 x
2” carriage bolts and 1/4” nuts supplied, on center line of
door with middle hole in line with top rollers.
For metal doors, mount door bracket, using two 1/4”-20 x
1/2” self drilling screws supplied, on center line of door
with middle hole in line with top rollers.
Step 7: Installing Light
Remove diffuser cover by pressing on both sides of the bottom of the
lighting cover at the junction of the housing, releasing the locking tabs,
and pulling forward. Screw a 60 Watt bulb (60 Watt Maximum) into
socket. For maximum bulb life, “rough service” bulbs are recom-
mended. Align top and bottom tabs on cover to Motor Power Head Unit
and push straight on until cover locks into place.
Note: light turns on automatically when door is activated and a 4 minute
time delay circuit automatically turns light off, allowing ample time to en-
ter the house. A fully open door with light blinking indicates an obstruc-
tion or problems with external safety sensors during close travel. See
trouble shooting section for further details.
Step 8: Installing Wired Wall Station (if included)
Install all wall controls out of the
reach of children and in a location
where the door can be seen before
activating. Do not mount wall con-
trols near or next to garage door.
Wired Wall Station: Wire the garage door opener wall
station using bell wire (low voltage electrical wire) con-
nected to COM and P.B. on vertical screw terminal
strips, as illustrated.
Locate push button adjacent to service entrance door at
a minimum height of 5 ft., and at least 5 ft.
away from garage door (see illustration in
Step 10). Fasten the wall station in a safe
location with the (2) Phillips head screws,
making sure not to over tighten. Pilot drill
mounting holes using a 3/32" bit. Additional
wired wall stations may also be installed in
accordance with these instructions.
CAUTION: Over tightening the screws
could deform plastic.
