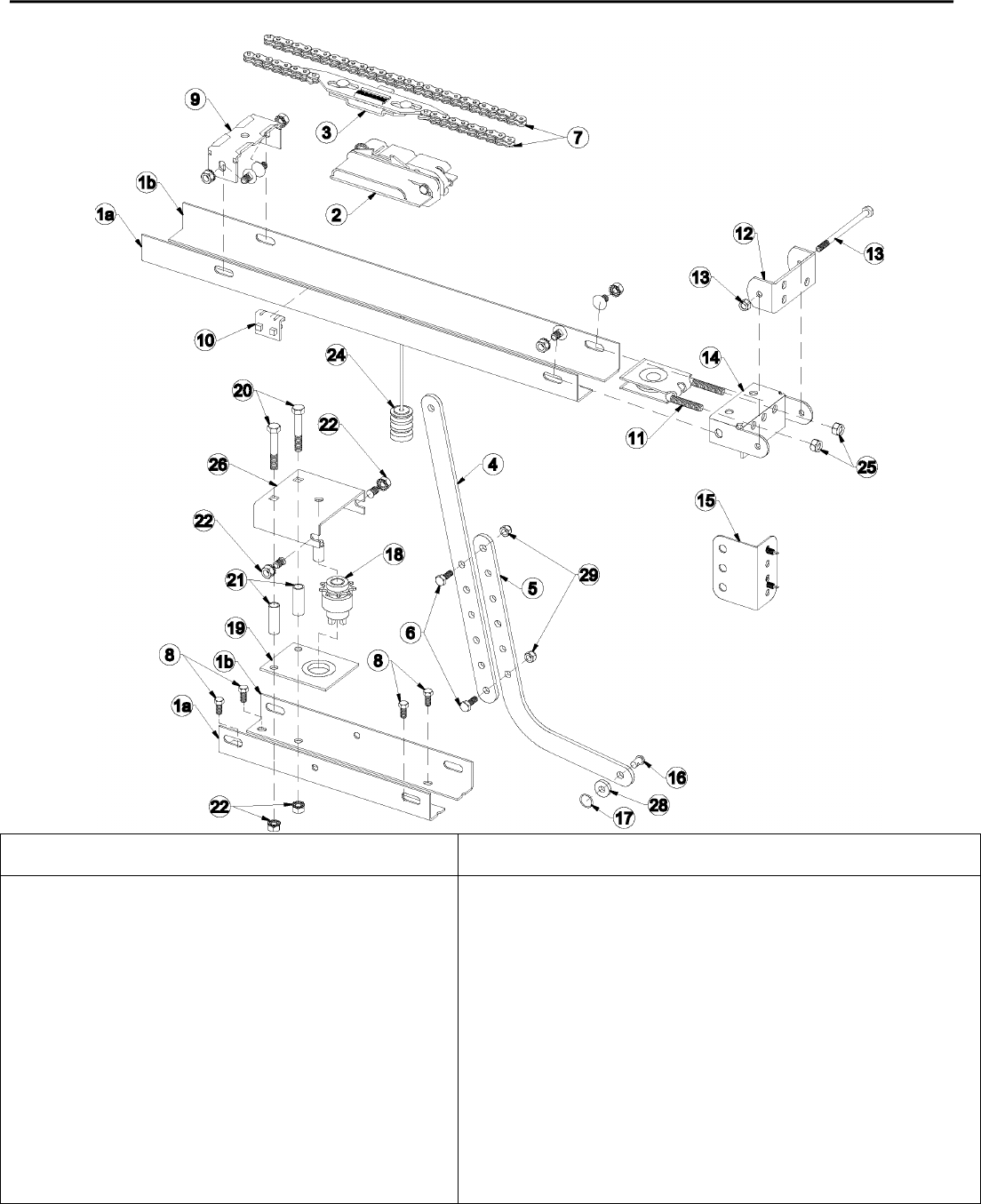

Parts Breakdown Rail Assembly – All Models
#. Part # Description # Per
Unit
#. Part # Description # Per
Unit
1a. 282903 Rail Angle, R.H. (7’) 1 14. 220958 Front Rail Bracket 1
1b. 282904 Rail Angle, L.H. (7’) 1 15. 240956 Door Bracket 1
2. 309957 Trolley Assembly 1 16. 308968 5/16x1/2” Clevis Pin 1
3. 309960 Chain Latch Assembly 1 17. 308969 3/4” Diameter Retaining Ring 1
4. 309959 Door Arm (Upper) 1 18. 305894 Sprocket Coupling W/ Bushing 1
5. 309958 Door Arm (Lower) 1 19. 252106 Sprocket Coupling Base Assembly 1
6. 308967 1/4-20x3/4” Machine Bolts 2
7. 220966 Chain, 7’ Opener 1
20.
21.
251228
221014
5/16-18x2” Hex Bolts
Spacer Tube
2
2
220967 Chain, 8’ Opener 1 22. 220999 5/16-18 Kep Nut 4
220968 Chain, 9’ Opener 1 23. 220977 Molded Chain Guard 1
220969 Chain, 10’ Opener 1 24. 157143 Red Release Knob 1
8. 157510 Motor Head Mounting Screw 1/4-20 4 25. 157665 Chain Adjusting Nut 2
9. 220960 Rail Spacer Bracket 2 26. 287265 Sprocket Coupling Cap Assembly 1
10. 294674 Rail Stop W/ Set Screw 1 27. 157500 Stop Bolt 1
11. 157662 “U” Bolt 1 28. 100370 5/16” Flat Washer 1
12. 220959 Front Wall Bracket 1 29. 157561 Nylock Nuts 2
13. 157559 1/4-20x4” Hex Bolt w/ Lock Nut 1
