Samsung SU-8500 Vacuum Cleaner User Manual



Maintenance
99

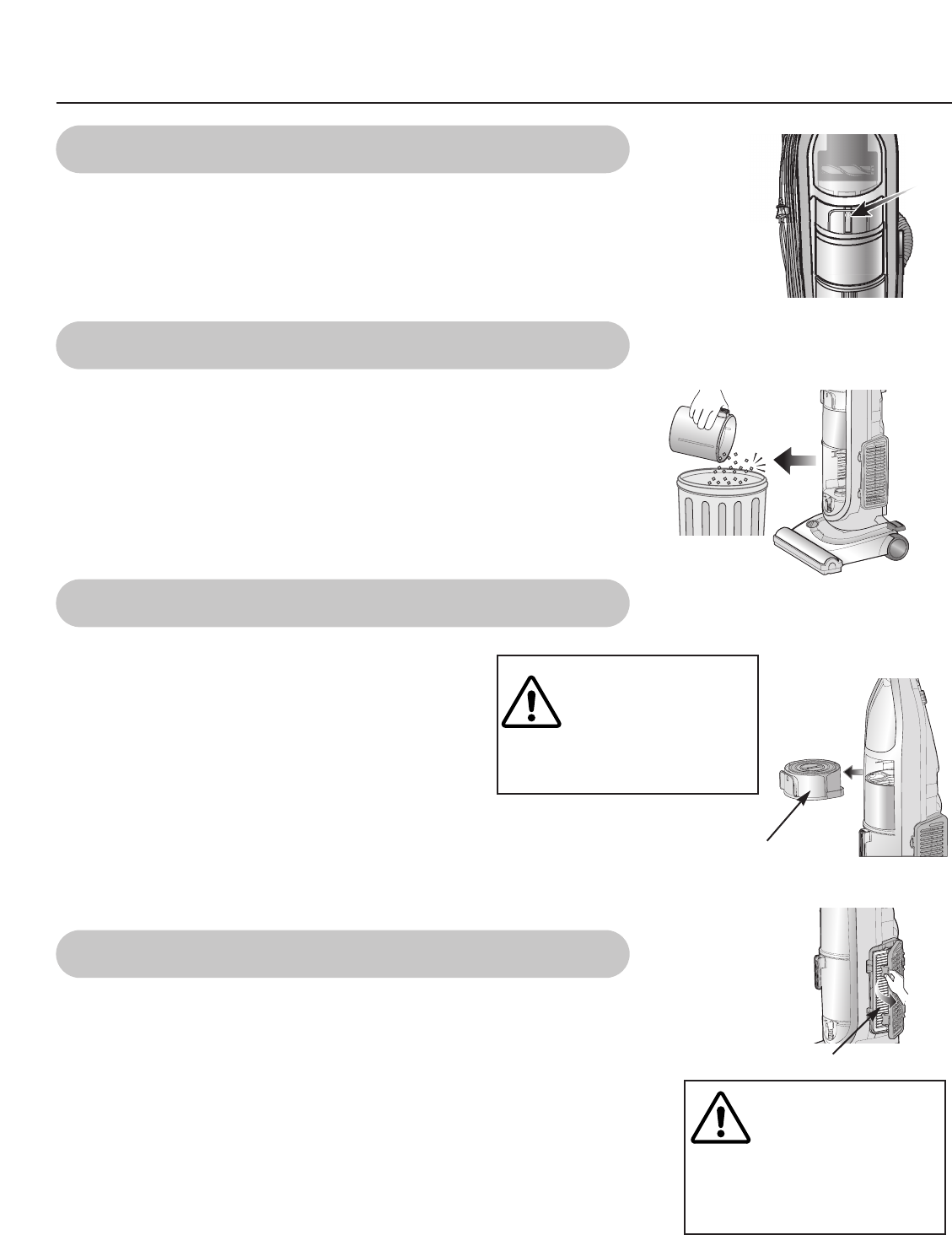

The Dirt-Cup check Indicator on the front of the vacuum shows a red or green display. When
the Dirt-Cup display is green, the Dirt-Cup is not yet full or the filter is not clogged. When the
indicator turns to red, the Dirt-Cup needs to be emptied or the filter needs to be cleaned.
If the display is still red after emptying the dust container, turn the cleaner off to
see if the hose, tube, or nozzle is clogged .
1
Unplug the Cleaner from electrical outlet.
2
The Dirt cup can be reached by removing the Dirt cup, reaching underneath
the Upper Tank and turning the rim of the Filter Frame to unlock. Pull straight
down to remove. Brush the dirt off the Louvers and Dirt cup.
3
The foam Upper Tank Filter may be removed and hand washed in cold water
with mild detergent. Rinse well then air dry throughly before replacing.
Dirt-Cup check or Filter clogged Indicator
Cleaning the Dirt cup
1
Unplug the Cleaner from electrical outlet.
2
The Cartridge Filter Tank assembly can be reached by
pulling it from the cleaner.
3
Remove the cover from the Cartridge Filter Tank, and
the foam may be removed and hand-washed in cold
water with mild detergent, then air dried.
4
Reposition Filters when completely dry.
1
Unplug the Cleaner from electrical outlet.
2
The HEPA Media Post-Motor Filter assists in the filtration process to return clean
air to the room. It is located behind the door on the side of the cleaner. If the filter
becomes dirty, open the door, remove the filter and clean. To remove this filter,
open the door on the side of the cleaner, grasp filter and pull it straight out.
3
Reposition the HEPA Media Post-Motor Filter, then lock the door.
Cleaning the Cartridge Filter Tank
Cleaning the HEPA Media Post-Motor Filter
WARNING:
Do not operate cleaner
with damp or wet filters
or without all filters in
place.
WARNING:
To reduce the risk of injury
from moving parts, turn off
vacuum cleaner and
disconnect Power Plug
from electrical outlet.
Cartridge Filter Tank
HEPA Media Post-Motor Filter
