Facing
1. Combustible material must be installed flush
with the fireplace. It may not project in front
of and on the fireplace (i.e. the steel facade
of the fireplace) (Figure 10).
2. Non-combustible materials such as brick,
stone or ceramic tile may project in front of
and onto the fireplace facing (Figure 11).
Mantel
The mantel must be installed at least 45”
(1143 mm) above the base of the fireplace
(Figure 10).
Figure 10
Figure 11
1/2” Drywall
2” X 3” Min.
Spacer
Spacer
2” X 3” Min.
1/2” Drywall
Mantel
45”
(1143mm)
Min.
Door
Non-Combustible Facing

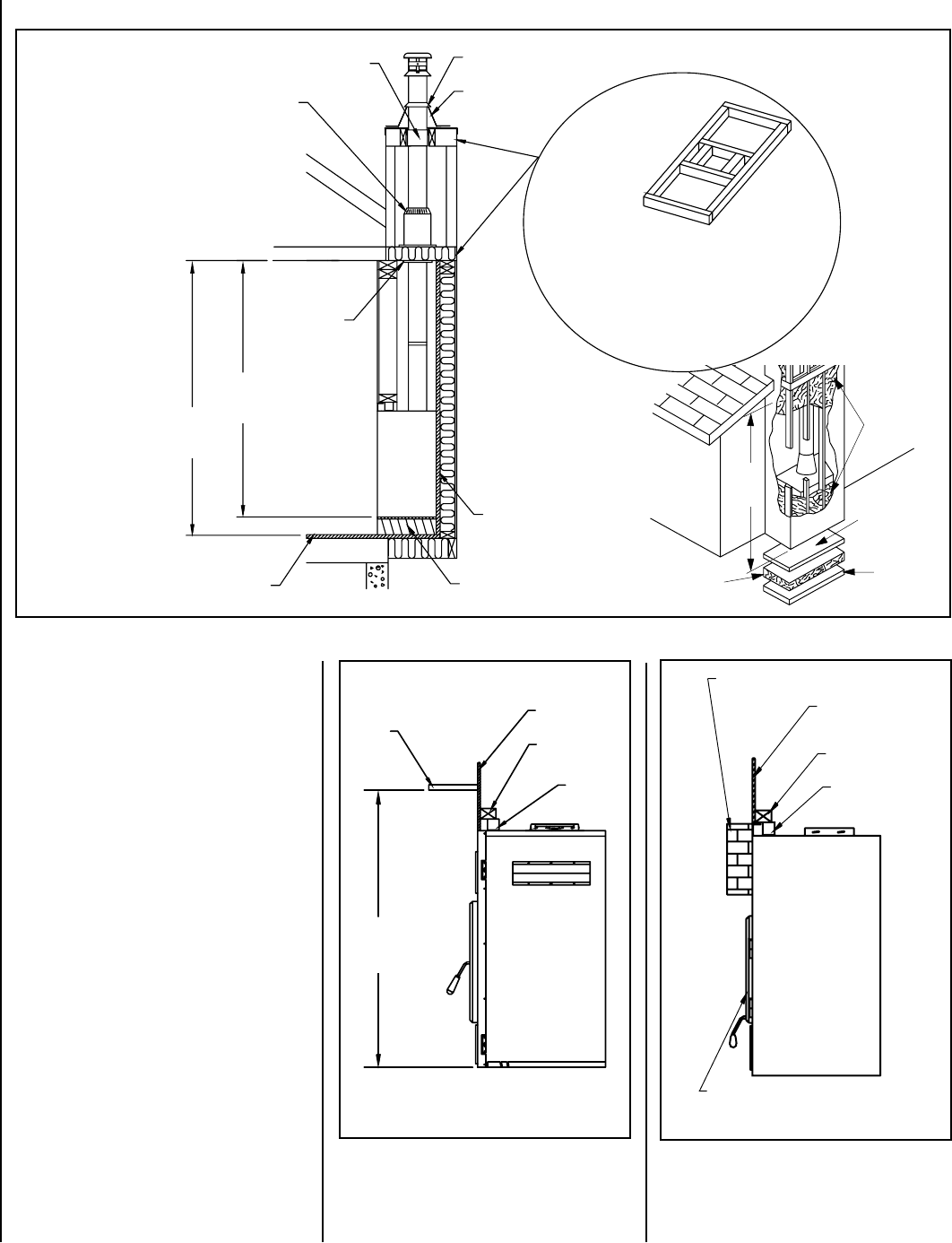

Figure 9
Insulated Chase Construction
Floor
Ceiling
Wall
• Must have the same firestopping
resistance as adjacent wall.
• Must have the same insulation as
adjacent ceiling.
• Follow local rules regarding framing
construction.
7’
(2.1 m)
Min.
Note: Floor and wall below the attic must be
insulated using the same insulation.
Attic Radiation
Shield
Roof Support
Storm Collar
Flashing
Drywall or Any Rigid
Material
2 x 4
FIREPLACE
1/2” Plywood
6’ 8”
(2 m)
Min.
Firestop
Insulate Joists
Same As Ceiling
Draft Stops
Firestop
CTDT
Termination
Note: Non-
Combustible
Chase
Flashing
Must Be
Used To
Cover
Chase
Opening
Optional
Insulation
In Outside
Walls Of
Chase
Solid
Continuous
Surface
Outside
Base
Insulation
(Thermal Barrier)
8'
Level
8’
(2.4 m)
Level
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
10
