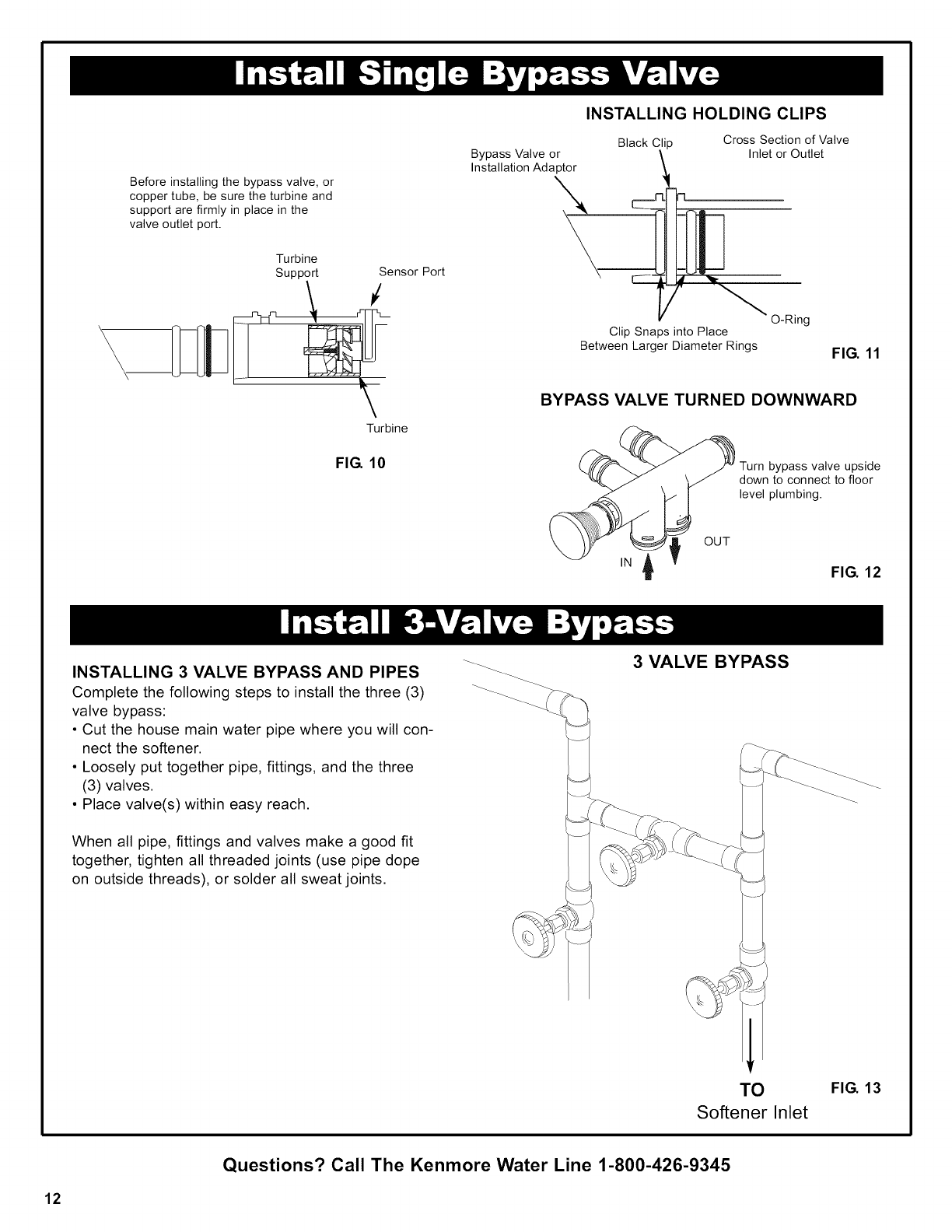

Before installing the bypass valve, or
copper tube, be sure the turbine and
support are firmly in place in the
valve outlet port.
Turbine
Support
Sensor Port
/
\
Turbine
FIG. 10
Bypass Valve or
Installation Adaptor
INSTALLING HOLDING CLIPS
Black Clip Cross Section of Valve
Inlet or Outlet
O-Ring
Clip Snaps into Place
Between Larger Diameter Rings FIG. 11
BYPASS VALVE TURNED DOWNWARD
Turn bypass valve upside
down to connect to floor
level plumbing.
OUT
IN t FIG. 12
INSTALLING 3 VALVE BYPASS AND PIPES
Complete the following steps to install the three (3)
valve bypass:
Cut the house main water pipe where you will con-
nect the softener.
Loosely put together pipe, fittings, and the three
(3) valves.
Place valve(s) within easy reach.
When all pipe, fittings and valves make a good fit
together, tighten all threaded joints (use pipe dope
on outside threads), or solder all sweat joints.
3 VALVE BYPASS
TO FIG. 13
Softener Inlet
12
