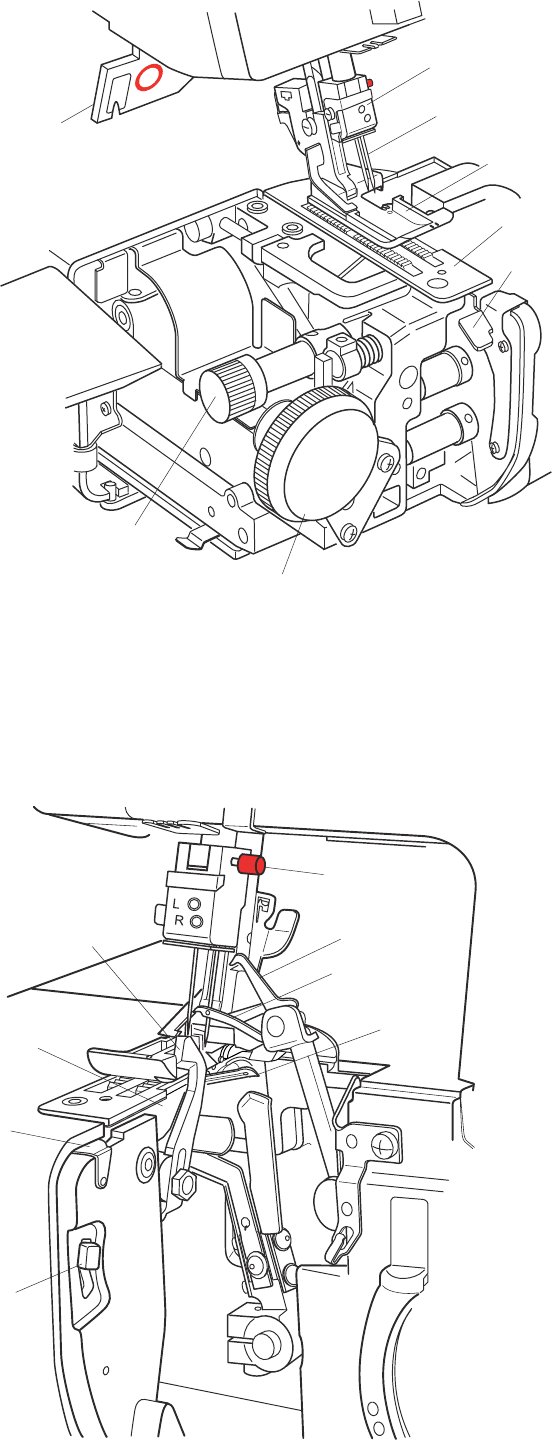

Side Cover
Grasp the cover and open it to the left.
1. Presser foot lever and thread cutter
2. Needle clamp
3. Needle(s)
4. Presser foot
5. Needle plate
6. Needle plate release lever
7. Cutting width dial
8. Upper knife release knob
Front Cover
Pull the cover to the right and open it towards you.
1. 2-thread converter
2. Upper looper
3. Lower looper
4. Upper knife
5. Lower knife
6. Back-tack device
7. Needle plate setting knob
8. Needle clamp release button
