SSTTAATTIIOONNAARRYY MMOOUUNNTTIINNGG OOPPTTIIOONN
FILTER PUMP STATIONARY MOUNTING OPTION
-- (3) x M6 HEXAGON HEAD BOLTS
-- (3) x M6 HEXAGON LOCK-NUTS
135mm
135mm
135mm
135mm
135mm
135mm
There are three mounting holes located at the bottom of the filter-pump base.
These holes are provided because various country’s regulations, especially in the
European community, require the filter-pump to be secured to the ground or to a
base in a permanent upright position.
These three holes form a triangle pattern and are 135mm from each other. The
holes are slotted with a 7mm width.

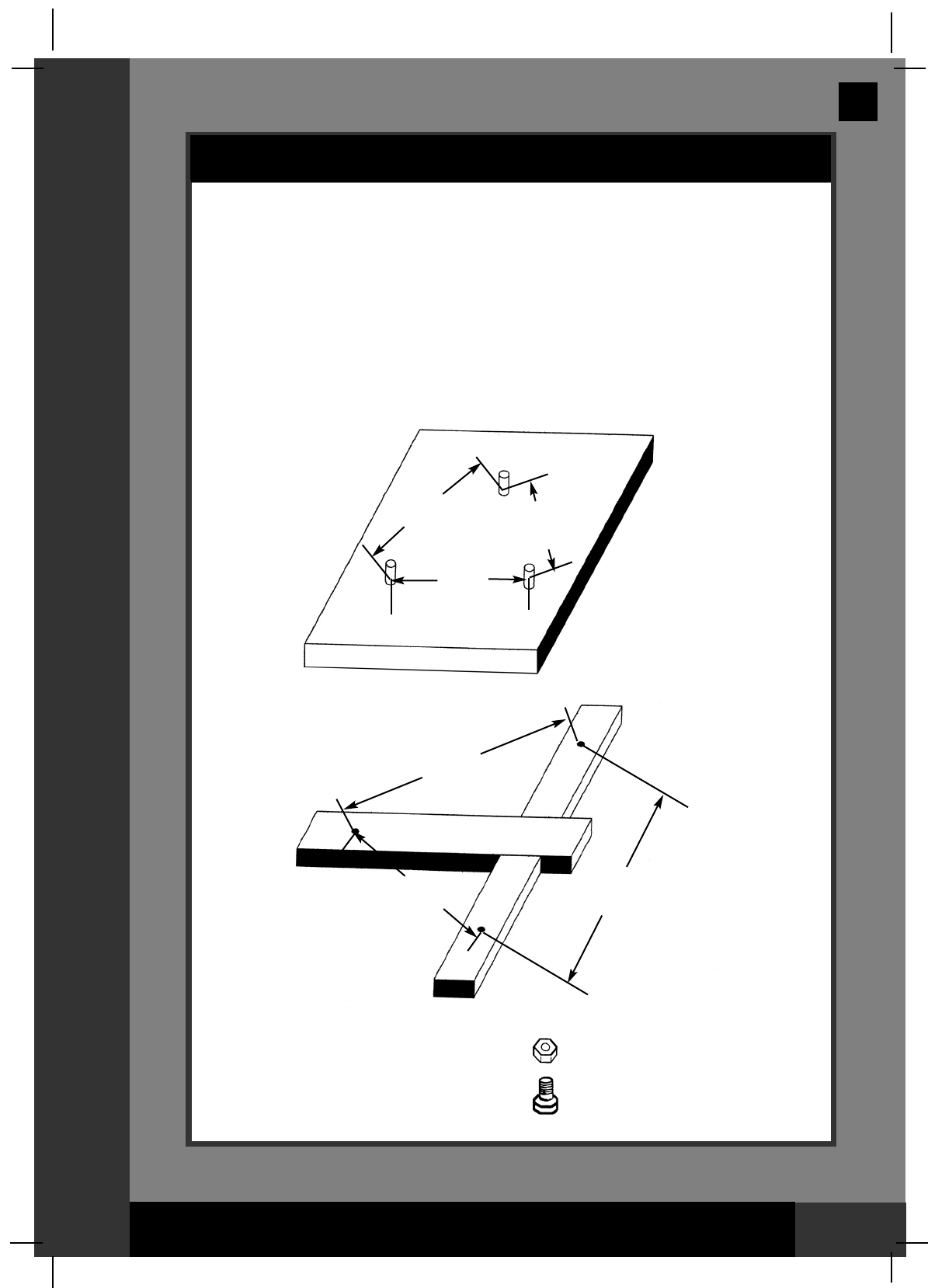

The filter-pump can be mounted on a cement base or onto a wooden structure to
prevent accidental falling over. Total assembly must exceed 18kg. The drawings on
the following show two possible ways of upright mounting. The European norm
EN 60335-2-41 requires this product be secured to the ground or to a base.
