SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS
SET-UP INSTRUCTIONS (continued)
WARNING
Position this product away from pool to prevent a child from
climbing the pool.
To inspect and change the filter cartridge, disconnect line cord, unscrew the
strainer grids (6) from the strainer connectors and insert the hat-like plugs into the
strainer connectors before servicing the filter. After service, open the air release
valve, remove the plugs, allow any air to escape through the valve before tightening
the valve again and replace the strainer grids. The pump is now primed with water
again and may be turned on.

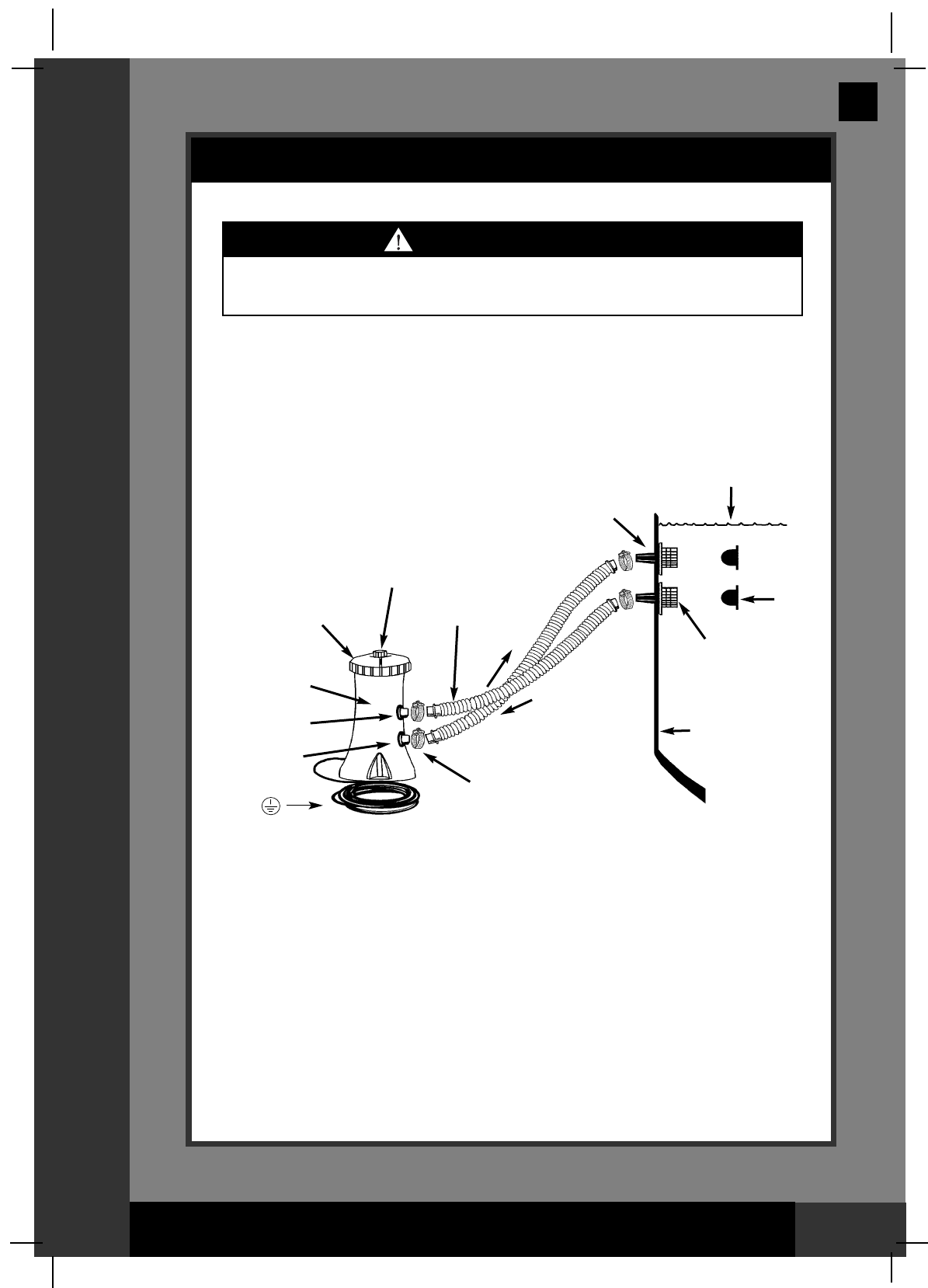

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
HOSE
CLAMP
INSIDE OF POOL
STRAINER
PLUG
UPPER PROTRUDING
HOSE CONNECTION
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
UPPER PUMP
CONNECTION
BOTTOM PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
