6.2 Frequency output wiring
6.2.1 Internally powered frequency output wiring

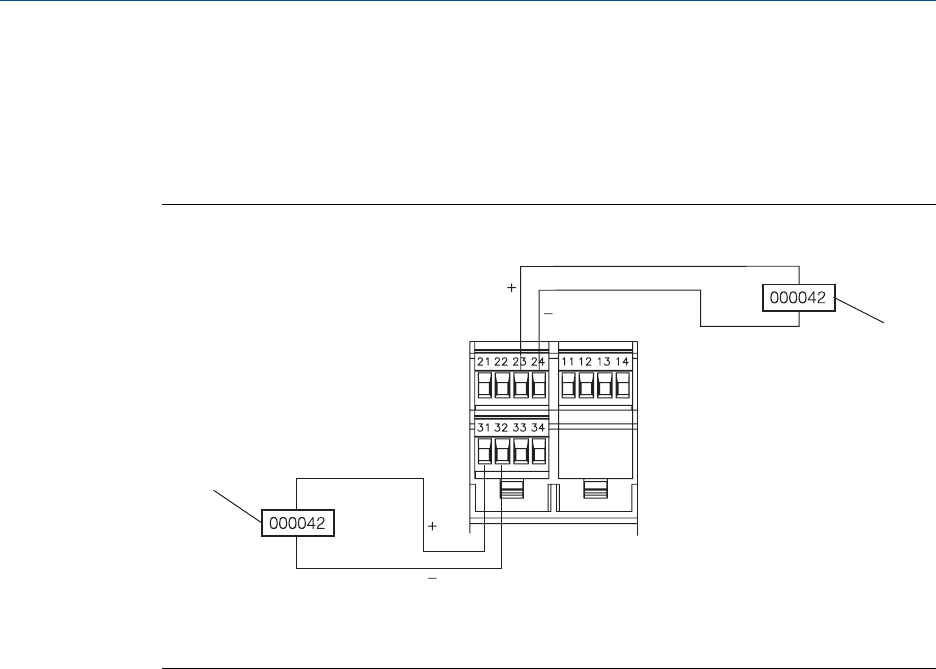

Internally powered frequency output wiringFigure 6-4:
A
B
C
A
A. Counter
B. Channel B – Terminals 23 and 24
C. Channel C – Terminals 31 and 32
I/O wiring for Model 2500 transmitters
Installation Manual 39
