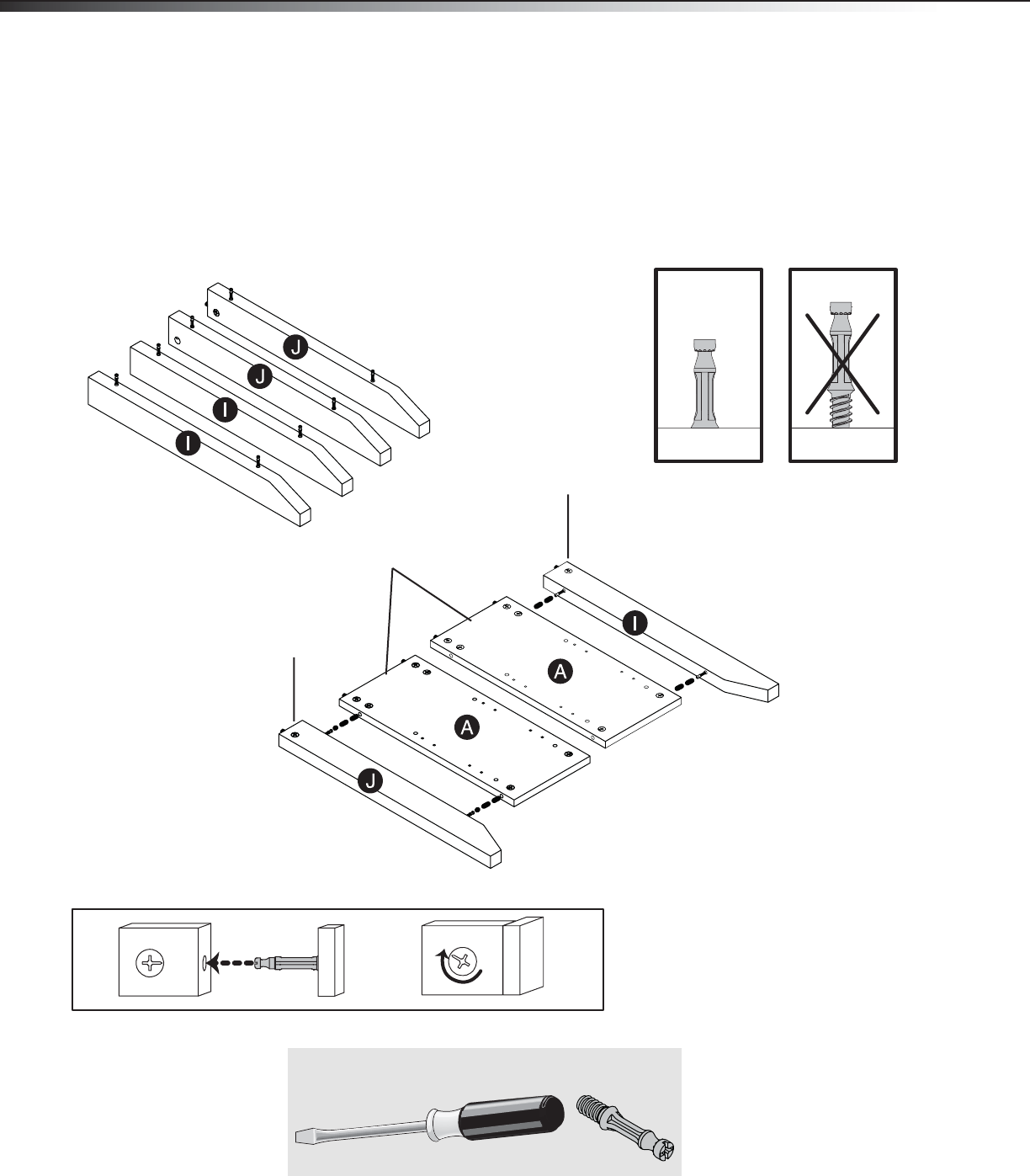

Step 2:
Screw two cam screws (S) into each of the legs (two I and two J).
Place the ends (A) flat with the side with the hidden cams facing up.
Make sure that the sides of the legs with the hidden cams are toward the ends (A).
Insert the cam screws on one of the legs (I) into one of the ends (A) and cam screws on one of the legs (J) into
the opposite side of the other end (A).
Tighten the four hidden cams. See “Tightening hidden cams” on page 7.
Yo u’l l ne e d :
Surface with
hidden cams
Leg with
hidden cams
Leg with
hidden cams
S (8)Flatblade screwdriver
