ULTRA FLAME DIRECT VENT GAS STOVE 13

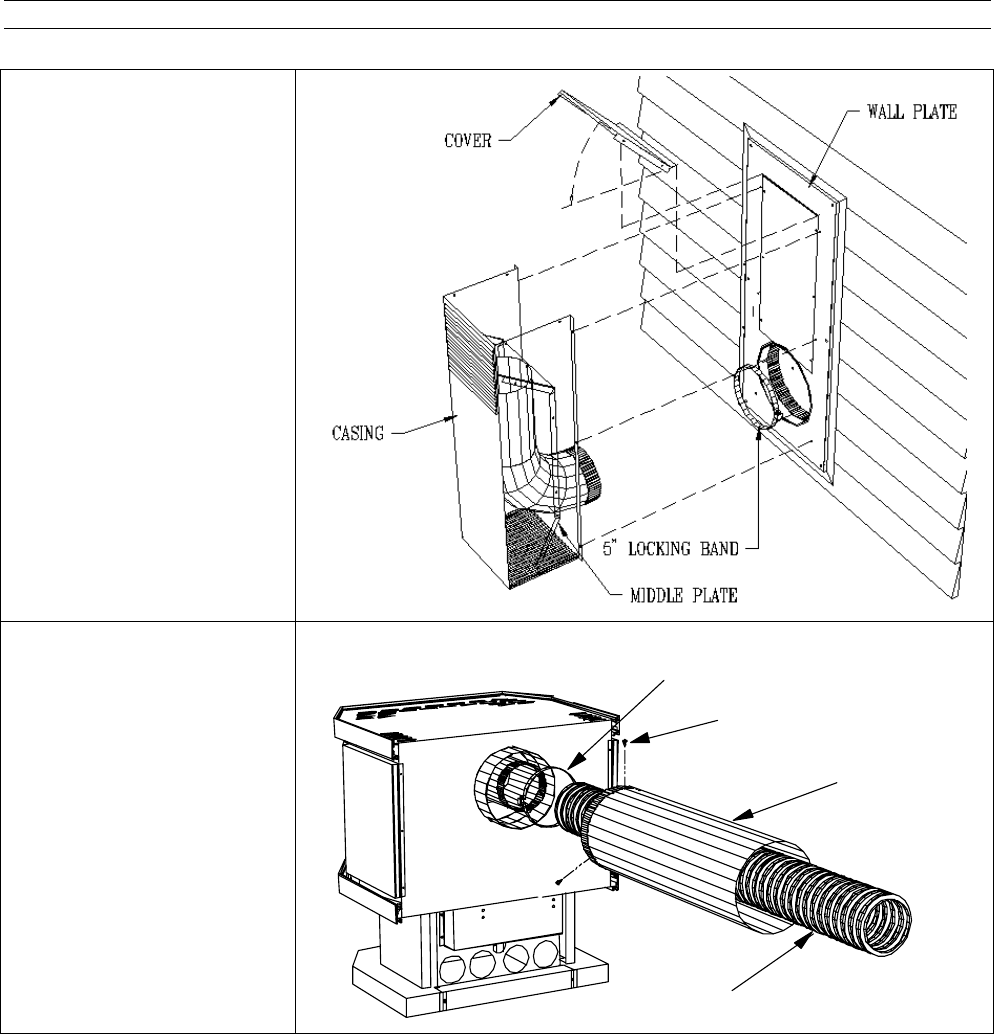

11. Install the vent casing and
the cover in place
12. Seal around the terminal to
prevent water leakage into
the house
13. Seal around the 8 in. pipe
to prevent cold air to get
into the house.
14. Seal around the cover slots
to avoid water infiltration
into the vent terminal;
15. Insert spring spacers into
the 5 in. flexible pipe;
16. Use all necessary rigid
sections to meet your
specific needs. Fix 8 in.
pipes together with metal
screws;
17. Put some high temp
silicone on the stove’s 5 in.
flange. Insert one locking
band on the 5 in. pipe and
insert it on the stove flange.
Make sure seal is perfect.
Tight the locking band
18. Fix the 8 in. pipe to the
stove with three metal
screws.
19. Fix Seal around the 8 in.
pipe to prevent cold air to
get into the house. your
stove to the floor ;
20. Installation is now
complete.
5" LOCKING BAND
SCREWS
5" FLEXIBLE FLUE PIPE
8"RIGID
A
