7. Joint Assembly Instructions:

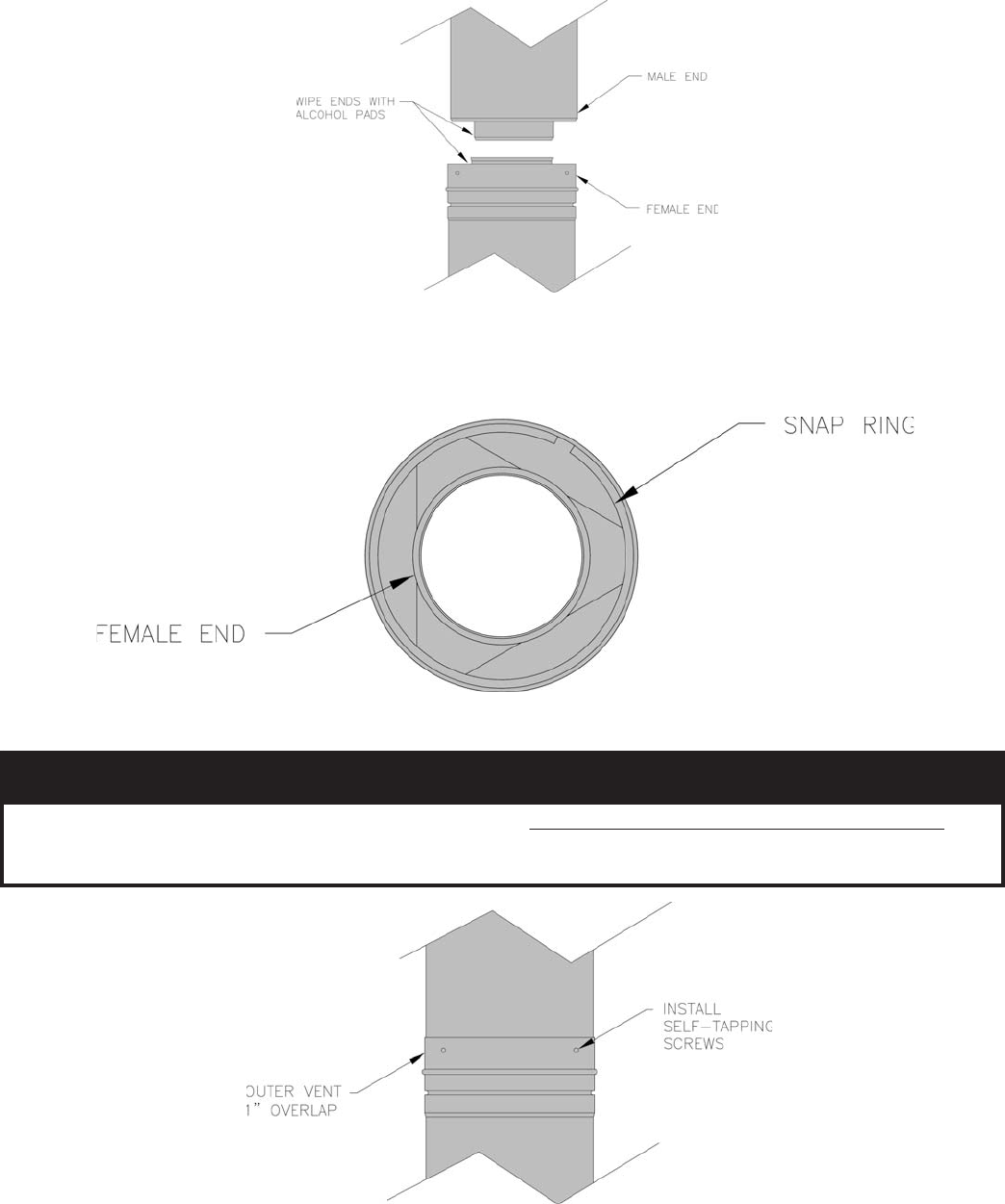

a. Before joining the sections or fi ttings together, use an alcohol pad to wipe the joint area of both ends of the inner
pipe. This will remove any foreign matter which may affect the integrity of the seal. Install the system with the
female ends (ends with the red seal) pointing away from the appliance. (Unless specifi ed differently by the appliance
manufacturer.)
b. Insert the male end of the inner pipe into the female end of the previous section. In extremely dry conditions it may be
helpful to moisten the seal with clean water prior to assembly. Push fi rmly until the outer jacket has made contact with
the snap ring located inside the female end of the previous section. When fully assembled the outer female end will
overlap the male end 1”.
c. Use the three (3) self-tapping screws provided to connect the outer vents. No pre-drilling is required.
NOITUAC
,llirdeuqrotelbairavagnisufI.nethgitrevotonoD
swercsllatsniotgnitteseuqrotwolaesu
sa,
retemaidregrala,gninethgitrevooteuddeppirtssemocebelohafI.selohehttuopirtsotton
.desuebnactevirtoptrohsro).xamgnol"½(wercs
