Accessories are available for use as wall pass-
throughs. If using one of these, make sure it has been
tested and listed for use as a wall pass-through.
 




The following illustration shows one NFPA-recommend-
ed method. All combustible material in the wall is cut
away a sufficient distance from the single-wall connec-
tor to provide the required 12” (305 mm) clearance for
the connector. Any material used to close up the open-
ing must be noncombustible.
Three other methods are also approved by the NFPA.
These are:
• Using a section of double-wall chimney with a 9”
(229 mm) clearance to combustibles.
• Placing a chimney connector pipe inside a ven-
tilated thimble, which is then separated from combus-
tibles by 6” (152 mm) of fiberglass insulating material.
• Placing a chimney connector pipe inside a sec-
tion of 9” (229 mm) diameter, solid-insulated, factory-
built chimney, with 2” (51 mm) of air space between the
chimney section and combustibles.














In Canada, this type of installation must conform to
CAN/CSA-B365, Installation Code for Solid Fuel Burn-
ing Appliances and Equipment.




 These appliances and their chimneys are
specifically designed as a unit for use as fireplaces. It
may void the listing or be hazardous to adapt them for
any other use.


T
T
ST494
steel
wall pass thru
11/00

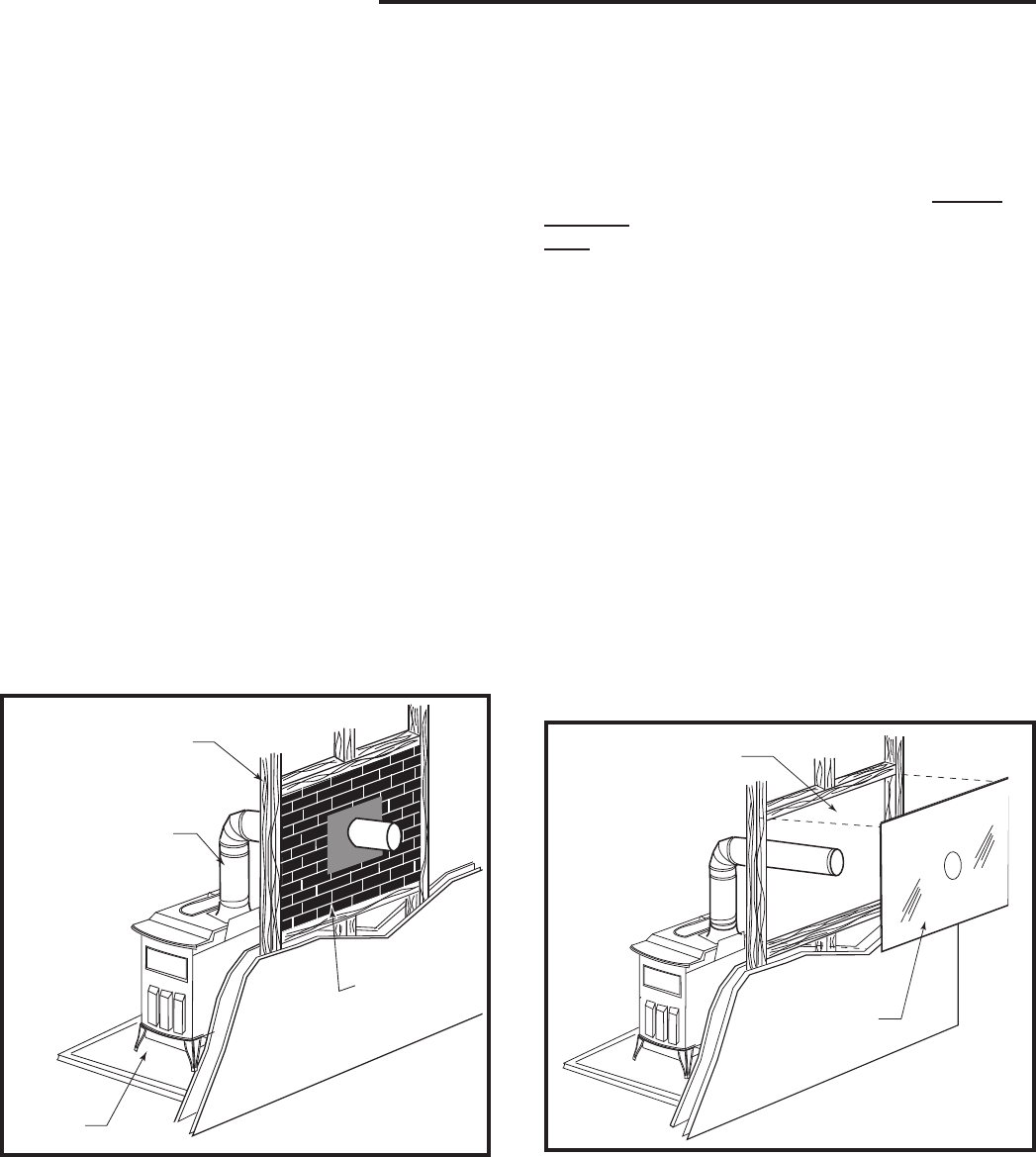

18” (457 mm) clear-
ance all around the
pipe
Flush
Mounted
ST494a
 An approved wall pass-through for Canada.
ST493a
Brick pass thru
11/00
T
Wall Stud
Chimney Con-
nector
Floor Pro-
tection
ST493a
 An approved wall pass-through for the United States.
12” (305mm) of
Noncombustible
Material
