NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
C
Back wall of chase/enclosure
(including any finishing materials)
D
A
B
Model
No.
A B C D
LSM40-2
in. 50-5/8 83-5/8 59-1/8 41-7/8
mm 1286 2124 1502 1064
LSM45-2
in. 56-3/4 89-7/8 63-1/2 44-7/8
mm 1441 2283 1613 1140
Model
No.
A B C
LSM40-2
in. 50-3/4 43 75-1/8
mm 1289 1092 1908
LSM45-2
in. 56-7/8 48 80-1/16
mm 1445 1219 2034

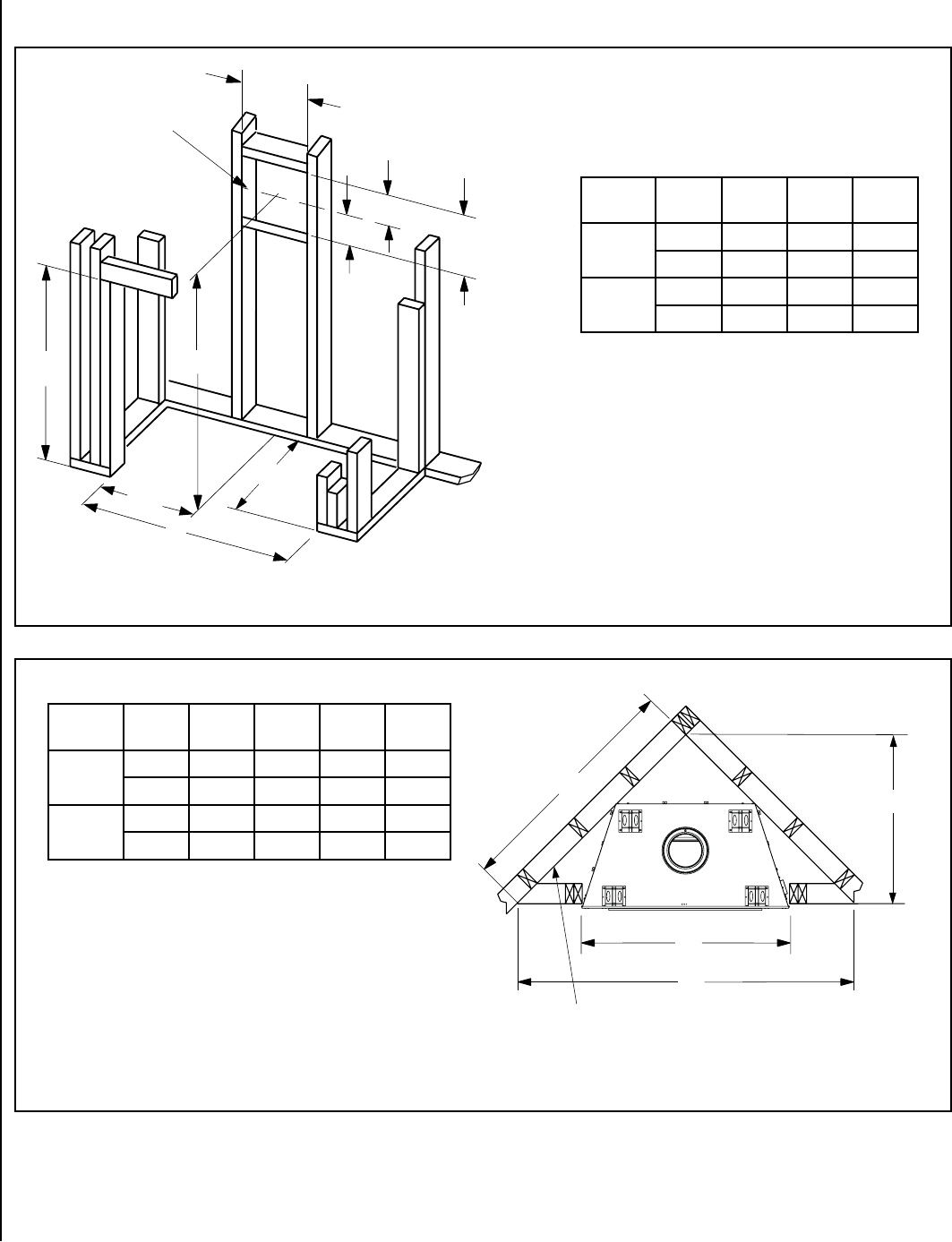

Figure 10
Figure 9 Framing
FIREPLACE FRAMING SPECIFICATIONS
Corner Framing with Square Termination (SV8HTS)
A
B
C
8-1/2
(216)
13
(
330
)
VENT FRAMING
-
TOP VENT WITH 2 FEET
VERTICAL VENT AND
ONE 90° ELBOW
Framing should be constructed
of 2x4 or larger lumber.
Inches (mm)
(641)
25-1/4
15
(
381
)
6-1/2
(165)
1/2 A
