NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Figure 43
17"
14"
8-1/4”
45°
12"
5"
12 (305) MANTEL
10 (254) MANTEL
8 (203) MANTEL
6 (152) MANTEL
4 (102) MANTEL
7
(178)
17
(432)
15
(381)
13
(330)
2 (51) MANTEL
TOP OF
APPLIANCE
9
(229)
11
(279)

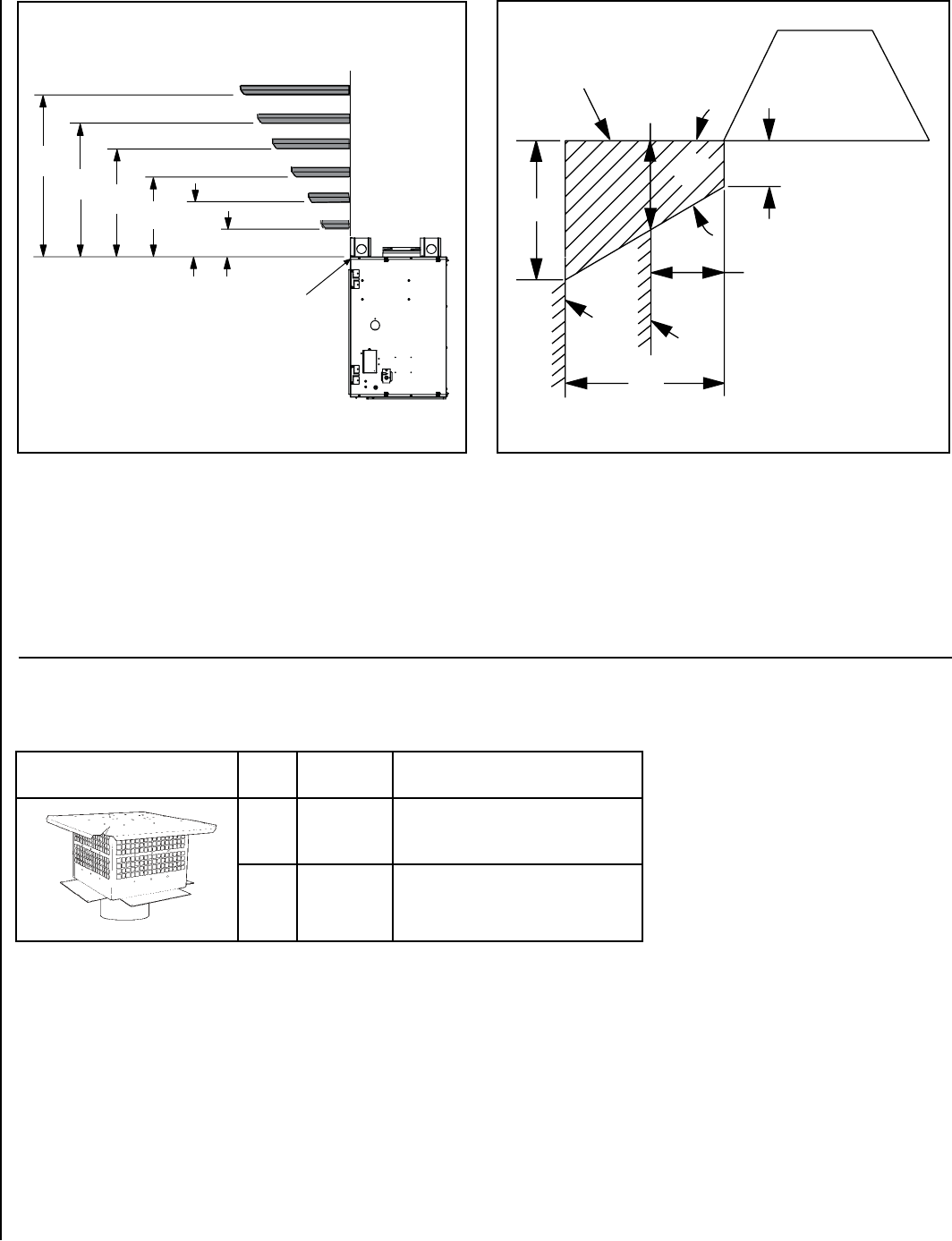

MANTEL CLEARANCES
Inches (mm)
Figure 42
Combustible Materials
Allowed In Shaded Area
"Safe Zone"
Top View of
Fireplace
Minimum Distance to
Protected Side Wall
Minimum Distance to
Unprotected Side Wall
Side
Wall
Side
Wall
COLD CLIMATE INSULATION
For cold climate installations, seal all cracks around your appliance with noncombustible material and wherever cold air could enter the room. It is
especially important to insulate outside chase cavity between studs and under floor on which appliance rests, if floor is above ground level. Gas
line holes and other openings should be caulked or stuffed with unfaced fiberglass insulation. In cold climates, if the fireplace is being installed on
a cement slab, a sheet of plywood or other raised platform can be placed underneath to prevent conducting cold up into the room. It also helps to
sheetrock inside surfaces and tape for maximum air tightness and caulk firestops.
INSTALLATION ACCESSORIES
Cat.
No.
Model No. Description
H6179 SV8CTS-B Chase Top Termination, Black
H6180 SV8CTS-TC Chase Top Termination, Terra Cotta
