MGB SERIES REPLAMGB SERIES REPLA
MGB SERIES REPLAMGB SERIES REPLA
MGB SERIES REPLA
CEMENT PCEMENT P
CEMENT PCEMENT P
CEMENT P
ARAR
ARAR
AR
TSTS
TSTS
TS
HEAHEA
HEAHEA
HEA
T EXT EX
T EXT EX
T EX
CHANGERCHANGER
CHANGERCHANGER
CHANGER

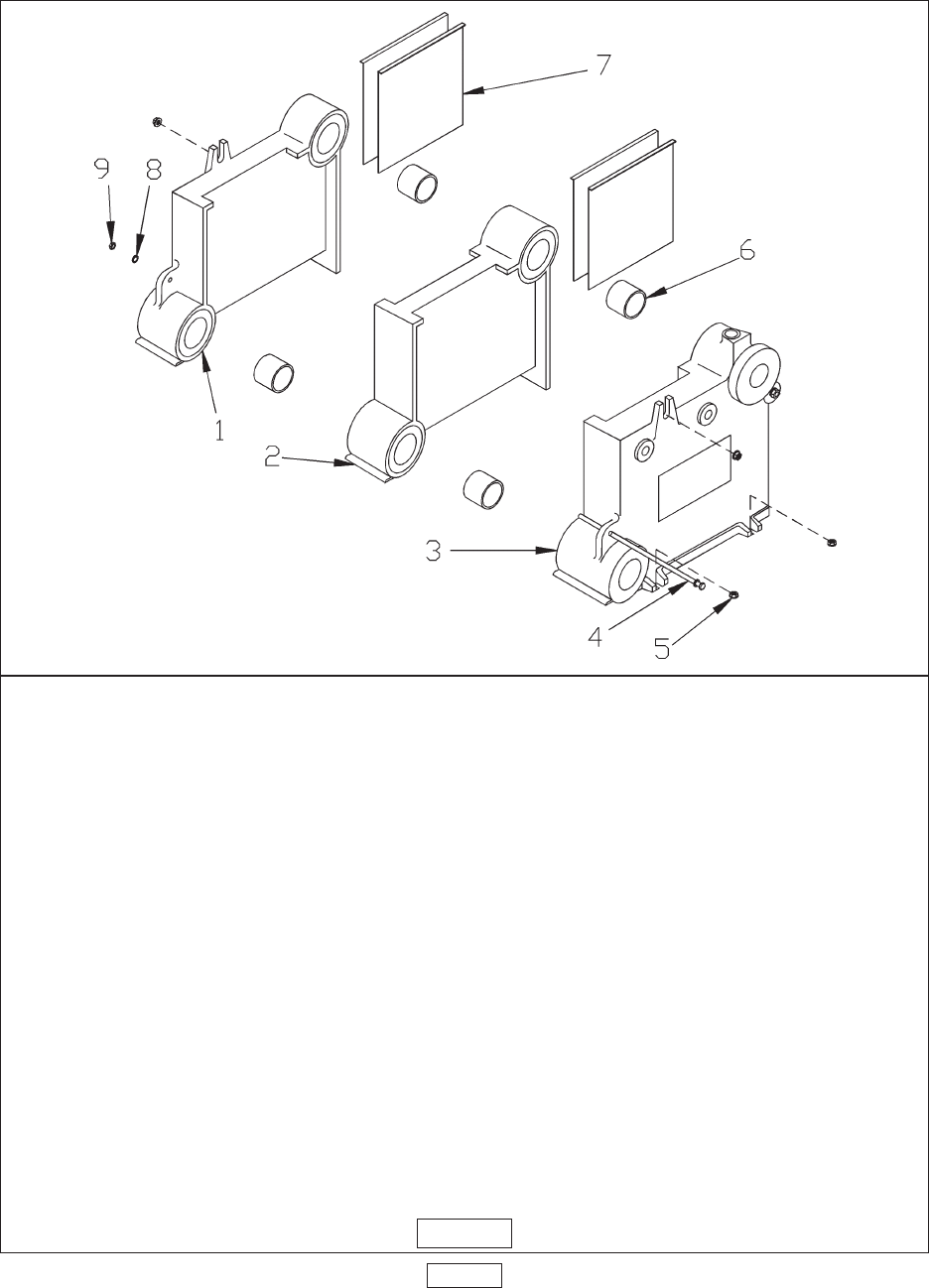

FIGURE 28
PAGE 24
ITEM NO P/N DESCRIPTION QTY.
1 100-2-2.01 B-LEFT HAND SECTION 1
2 100-2-1.01 B-CENTER SECTION
MGB50 (0) MGB75 (1) MGB100 (1) MGB125 (2)
MGB150 (2) MGB175 (3) MGB200 (3) MGB225 (4)
MGB250 (4) MGB275 (5) MGB300 (5)
3 100-2-3.01 B-RIGHT SECTION 1
4 HW-011.01 TIE ROD 1/4X11.1/2 MGB75 & 100 2
HW-011.03 TIE ROD 1/4X15.1/2 MGB125 & 150
HW-011.05 TIE ROD 1/4X19.1/2 MGB175 & 200
HW-011.07 TIE ROD 1/4X23 MGB225 & 250
HW-011.09 TIE ROD 1/4X27 MGB275 & 300
5 HW06901 NUT 5/16-18 WISLOCK 6
6
43300976 PUSH NIPPLE 2" MACH.
MGB50 (2) MGB75 (4) MGB100 (4) MGB125 (6)
MGB150 (6) MGB175 (8) MGB200 (8) MGB225 (10)
MGB250 (10) MGB275 (12) MGB300 (12)
7 3461601 BAFFLE (USED ON MGB75 & MGB175 ONLY)
MGB75(4) 2 per flueway MGB175 (4) 1 per flueway
8 HW-008.01 WASH-5/16 FLAT STL ZP 4
9 HW-003.02 NUT-1/4-20 HEX-STL ZP 2
FULLY ASSEMBLED HEAT EXCHANGERS
100-2-7.01 HEAT EXCHANGER 3 SECTION
100-2-7.02 HEAT EXCHANGER 4 SECTION
100-2-7.03 HEAT EXCHANGER 5 SECTION
100-2-7.04 HEAT EXCHANGER 6 SECTION
100-2-7.05 HEAT EXCHANGER 7 SECTION
100-2-7.06 HEAT EXCHANGER 2 SECTION
