FV-G030B1
User’s Guide Rev. 1.02
Command No.
Command Description
30H: [7..0]
31H: [15..8]

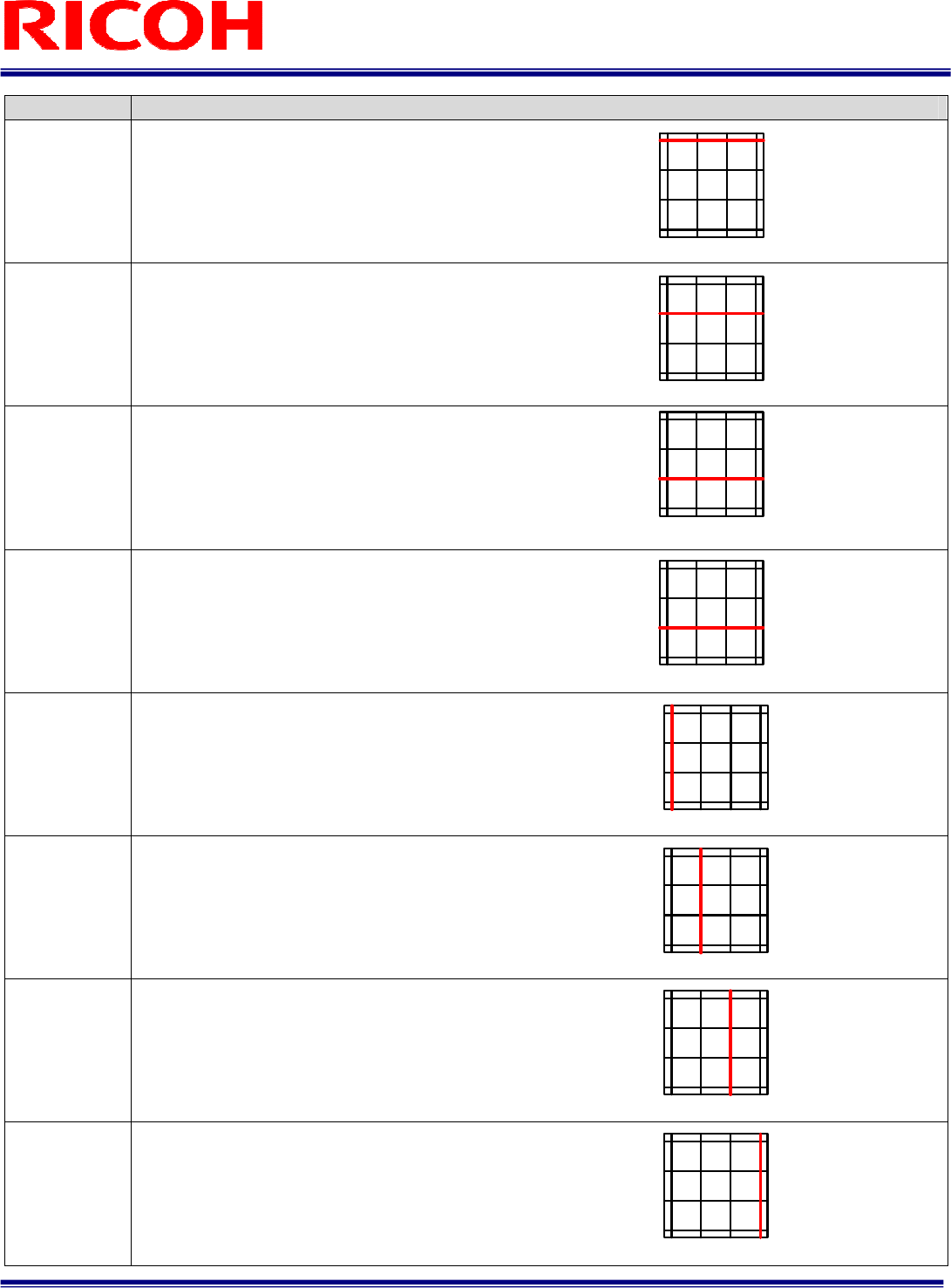

[Vertical_1 position for the ALC weight area]
Initial data: 32, data range: 0 to 493
Sets the vertical 1 position for the ALC weight area.
32H: [7..0]
33H: [15..8]
[Vertical_2 position for the ALC weight area]
Initial data: 169, data range: 0 to 493
Sets the vertical 2 position for the ALC weight area.
34H: [7..0]
35H: [15..8]
[Vertical_3 position for the ALC weight area]
Initial data: 298, data range: 0 to 493
Sets the vertical 3 position for the ALC weight area.
36H: [7..0]
37H: [15..8]
[Vertical_4 position for the ALC weight area]
Initial data: 462, data range: 0 to 493
Sets the vertical 4 position for the ALC weight area.
38H: [7..0]
39H: [15..8]
[Horizontal_1 position for the ALC weight area]
Initial data: 36, data range: 0 to 647
Sets the horizontal 1 position for the ALC weight area.
3AH: [7..0]
3BH: [15..8]
[Horizontal_2 position for the ALC weight area]
Initial data: 252, data range: 0 to 647
Sets the horizontal 2 position for the ALC weight area.
3CH: [7..0]
3DH: [15..8]
[Vertical_3 position for the ALC weight area]
Initial data: 396, data range: 0 to 647
Sets the horizontal 3 position for the ALC weight area.
3EH: [7..0]
3FH: [15..8]
[Vertical_4 position for the ALC weight area]
Initial data: 612, data range: 0 to 647
Sets the horizontal 4 position for the ALC weight area.
