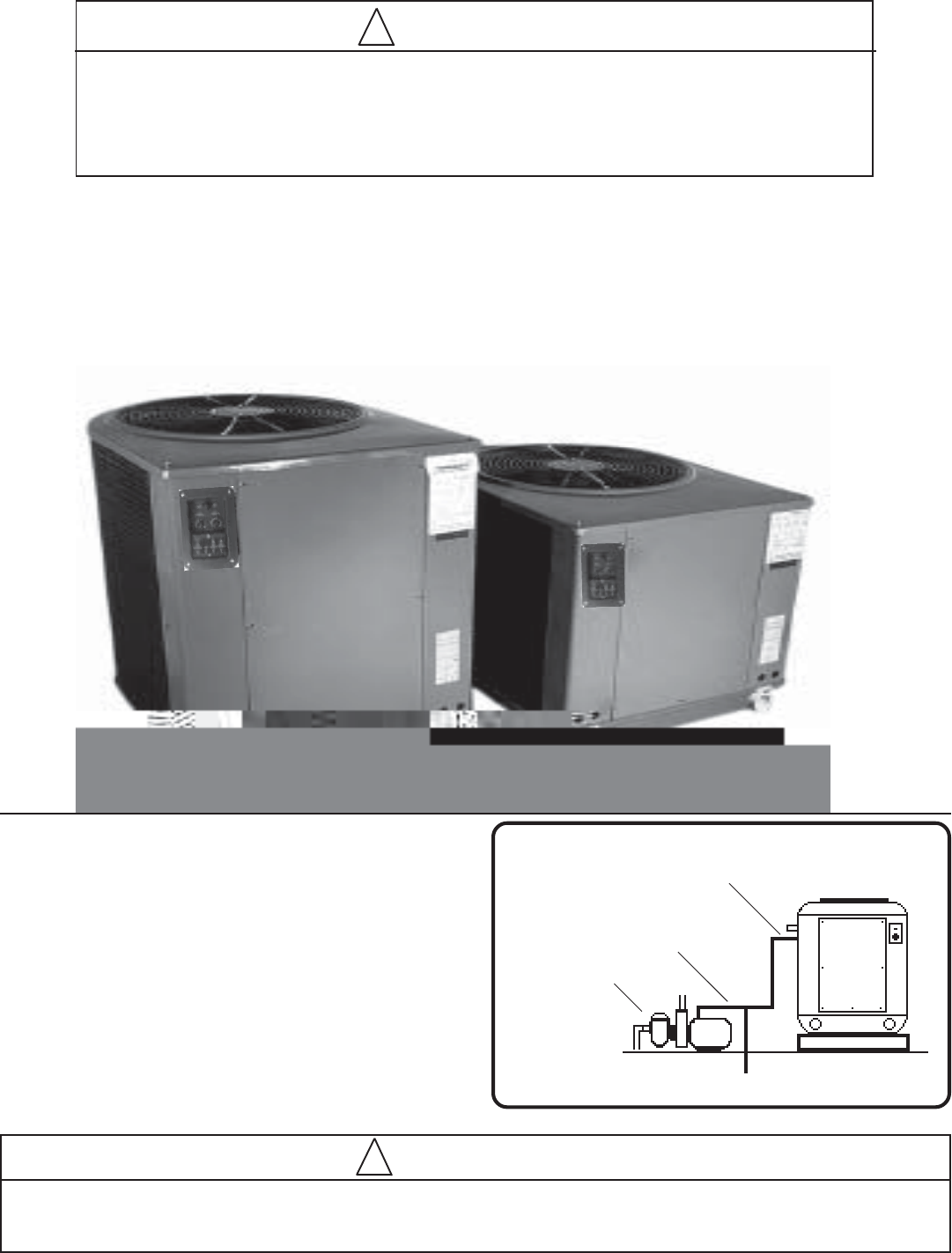

MANDATORY BONDING TO POOL STEEL
(This is in addition to electrical ground)
Make sure that the unit cabinet is bonded to the pool steel.
Most codes require that the circulation pump be bonded
as well. You can connect at that point using at least a #6
gauge or larger solid copper wire. Use the external bond
lug on the cabinet to insure a good bond.
Bonding the unit to the pool steel will help reduce the
chance of electrolysis, also know as electrical corrosion.
A heater left un-bonded may experience corrosion to the
metal water tubing inside the heater.
28
Unit has 3/4” knockout on left side of unit.
A pool water pump bond wire lug is in the same location.
The wire path from the knockout to the main contactor is about 3 feet.
Line side of the main contactor will be on the top.
The model number is located on a silver label on the front of the unit.
UNIT IDENTIFICATION
IN SOME CASES WE HAVE SPECIFIED “BETTER” THAN N.E.C. CODE THEREFORE, THE
MANUFACTURERS SPECIFICATION “BECOMES” THE CODE FOR THAT PARTICULAR UNIT.
NOTE: TECHNICIANS SEE SEPARATE INSTALLATION MANUAL FOR EXACT DETAILS.
ELECTRICAL WIRING SPECIFICATIONS
#8 Solid
Copper
Circulation
Pump
External
Bond Wire Lug
To Pool Steel
WARNING
The heater must be electrically grounded and bonded in accordance with local codes, or in the
absence of local codes, with the latest national electrical codes ANSI/NFPA No. 70. All wiring
must comply with all local codes, or in the absence of local codes, with the latest national electri-
cal codes ANSI/NFPA No. 70. For proper wire and/or breaker size, please refer to specification
sheet and your local licensed electrician.
