How to replace the belt
Disconnect cleaner from elec-
trical outlet and disconnect
power nozzle from extension
wands.

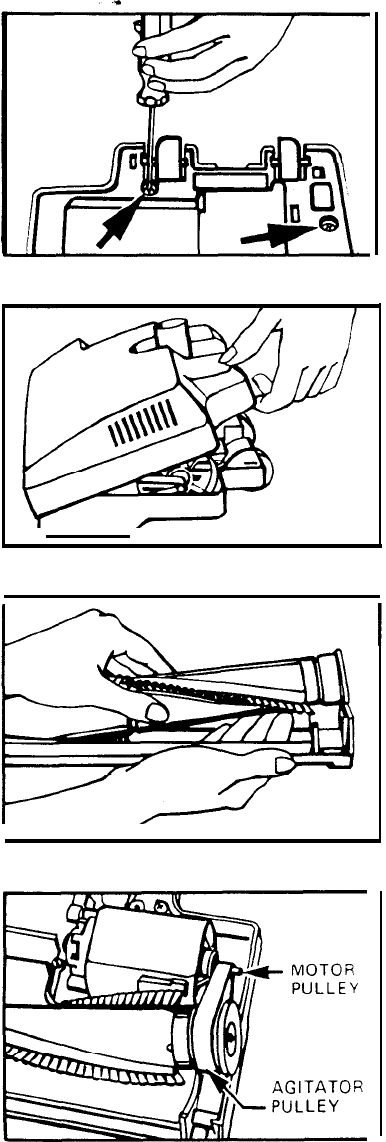

Turn nozzle over and unscrew the
2 Phillips head screws from the
nozzle base.
Return nozzle to original position
and lift up back of nozzle cover.
Then remove cover, rotating it for-
ward and lifting it off.
To remove the agitator, position
your hand underneath the nozzle
base at the agitator opening and
push up the belt side of the agita-
tor. Remove agitator and old belt.
Place one end of new belt around
the motor pulley, with lettering on
outside of belt.
Then slip other end of belt around
the plastic pulley end of the
agitator.
14
