Haier AB422BCBAA Air Conditioner User Manual



Installation procedure
Install the decorative panel

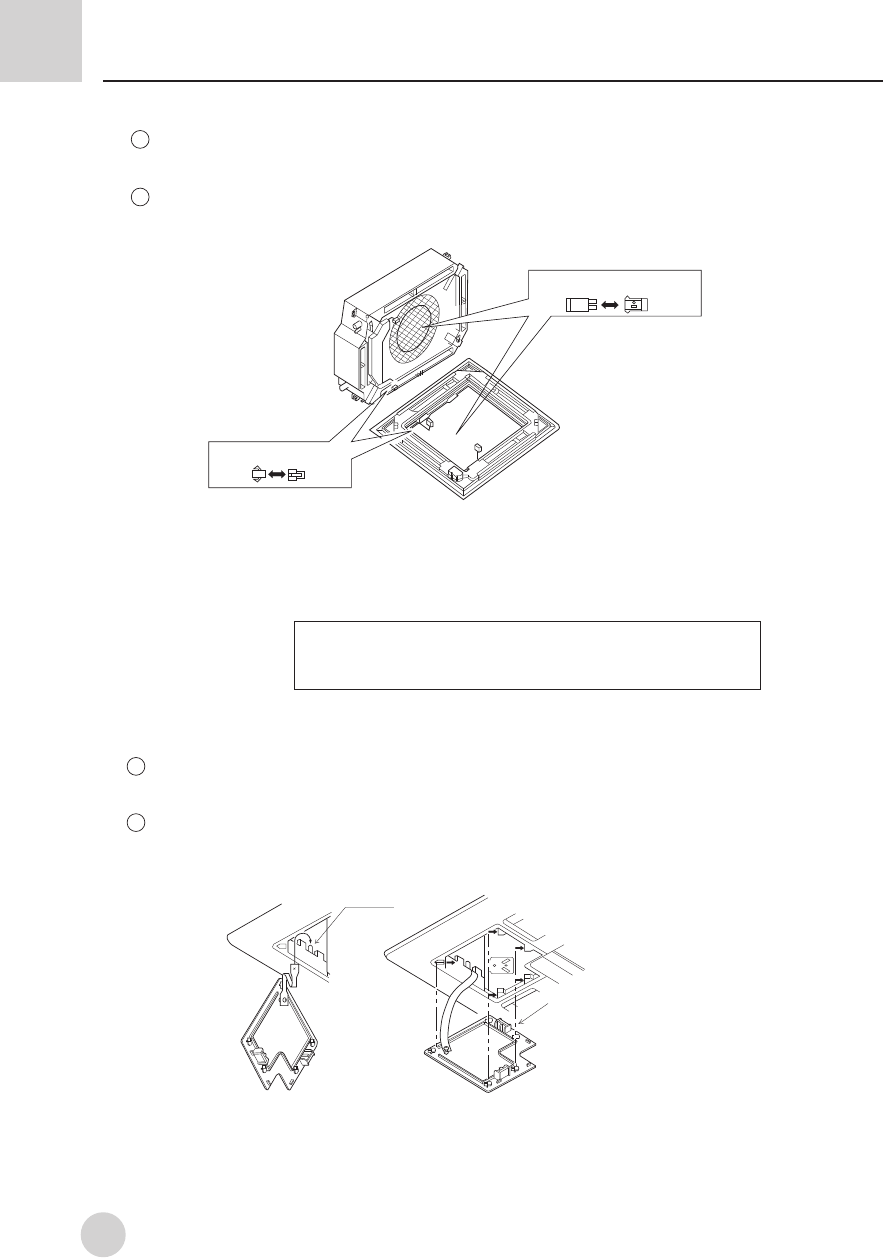

(3)The circuit of the decorative panel
Connect the wire end of the louver motor installed on the decorative panel
(referring to Figure 7).
Connect the remote control receiving terminals installed on the decorative
panel.
When installing the air inlet grille, be careful not
to wrap the wire of the louver motor.
3.Installation of air inlet grille and corner cover
*(1)Install the air inlet grille
*The reversed procedure to the ìthe preparation of decorative panelî part.*****
(2)Install the corner cover on the corner
**As Figure 8 shown, tie the rope of the corner cover on the cleat of the
***decorative panel.
***Install the corner cover on the decorative panel (referring to Figure 9).
32
(different from the actual condition)
Figure 7
<The indication diagram of circuit>
Side of indoor unit
Cleat
Slide the 5 buckles to install the
corner cover and make it meet with
the holes in the decorative panel
Figure 9
Figure 8
6
7
Side of decorative panel
2
1
