Viewing the Electric Heat Jumper Setting
10
Press the PROGRAM button to leave the Setup screens. If no buttons are
pressed, the display will leave the setup screens after 30 seconds.
OFF
Setup
Placing the jumper on ELEC will cause the thermostat to turn on the
fan immediately any time there is a heat demand. Since most gas
furnaces control the fan, this feature should be off unless it is
necessary for the thermostat to energize the fan with first stage heat.
Step 12 is ‘Read Only’ and may only be set with the jumpers on the
circuit board of the thermostat (see page 4.3 of the Installation
Instructions).
Note: Press the MODE
button momentarily
to move through the
setup screens. Press
and hold the MODE
button to move back-
wards through the
setup screens.
EH
12
Air Conditionin
g
& Heatin
g
ON indicates that the
thermostat jumper is
set for Electric Heat
operation, or OFF for
Gas/Electric or Heat
Pump operation.

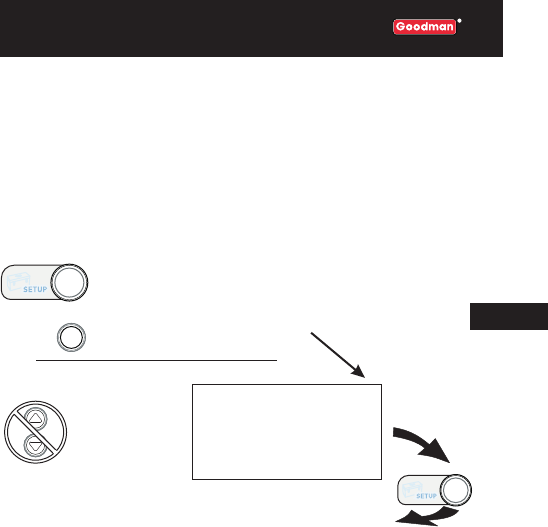

Press the MODE button repeatedly
until this setup screen appears.
Press
MODE
Press SETUP button to
enter Setup screens.
