Viewing the Heat Pump and
Reversing Valve Jumper Settings
10
Indicates that the
thermostat jumper
is set for an O
reversing valve
(energize in cooling)
or a b reversing valve
(energize in heating).
Setup
Press the PROGRAM button to leave the Setup screens. If no buttons are
pressed, the display will leave the setup screens after 30 seconds.
Steps 10 and 11 are ‘Read Only’ and may only be set with the
jumpers on the circuit board of the thermostat (see page 4.4 of
the Installation Instructions).
ON = Heat Pump
operation
OFF = Gas Electric
operation
Setup
OFF
Note: Press the MODE
button momentarily
to move through the
setup screens. Press
and hold the MODE
button to move back-
wards through the
setup screens.
HP
10
O
11
Air Conditionin
g
& Heatin
g

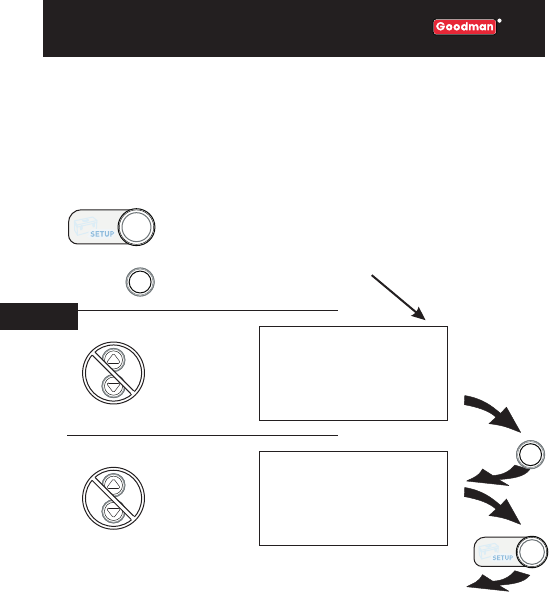

Press
MODE
Press the MODE button repeatedly
until this setup screen appears.
MODE
Press
Press SETUP button to
enter Setup screens.
