1. Position the supply wires to the left side
of the outlet box (Figure 12); position
the fan wires to the right side. Partially
insert the remote control receiver (flat
side up) until one end rests on the
hanger ball as shown in Figure 12.
NOTE: Make all wiring connections
using wire connectors (supplied). Make
sure that all connections are tight,
including ground, and that no bare wire
is visible at the wire connectors, except
for the ground wire.
How to Wire
Your Ceiling Fan
Turning off wall switch is not suffi-
cient. To avoid possible electrical
shock, be sure electricity is turned
off at the main fuse or circuit breaker
box before wiring. All wiring must be
in accordance with National and
Local codes and the ceiling fan must
be properly grounded as a precau-
tion against possible electrical
shock.
!
WARNING
Check to see that all connections are
tight, including ground, and that no
bare wire is visible at the wire con-
nectors, except for the ground wire.
Do not operate fan until blades are in
place. Noise and fan damage could
result.
!
WARNING
If you feel that you do not have enough
electrical wiring knowledge or experi-
ence, have your fan installed by a
licensed electrician.
2. Refer to Figure 12 and 13 and connect
the receiver wires to the supply wires
and the fan motor wires as follows:
a. Securely connect the green grounding
wires from the hanger ball and the
hanger bracket to the supply grounding
conductor (this may be a bare wire or a
wire with green insulation).
b. Securely connect the supply white
(neutral) wire to the receiver white
(AC IN N) wire.
c. Securely connect the supply black wire
(hot) wire to the receiver black (AC IN
L) wire.
d. Securely connect the fan motor white
wire to the receiver white (TO MOTOR
N) wire.
e. Securely connect the fan motor black
wire to the receiver black (TO MOTOR
L) wire.
f. Securely connect the fan motor blue
wire to the receiver blue (FOR
BOTTOM LIGHT) wire.
g. Securely connect the fan motor orange
wire to the receiver orange (FOR
UPPER LIGHT) wire.

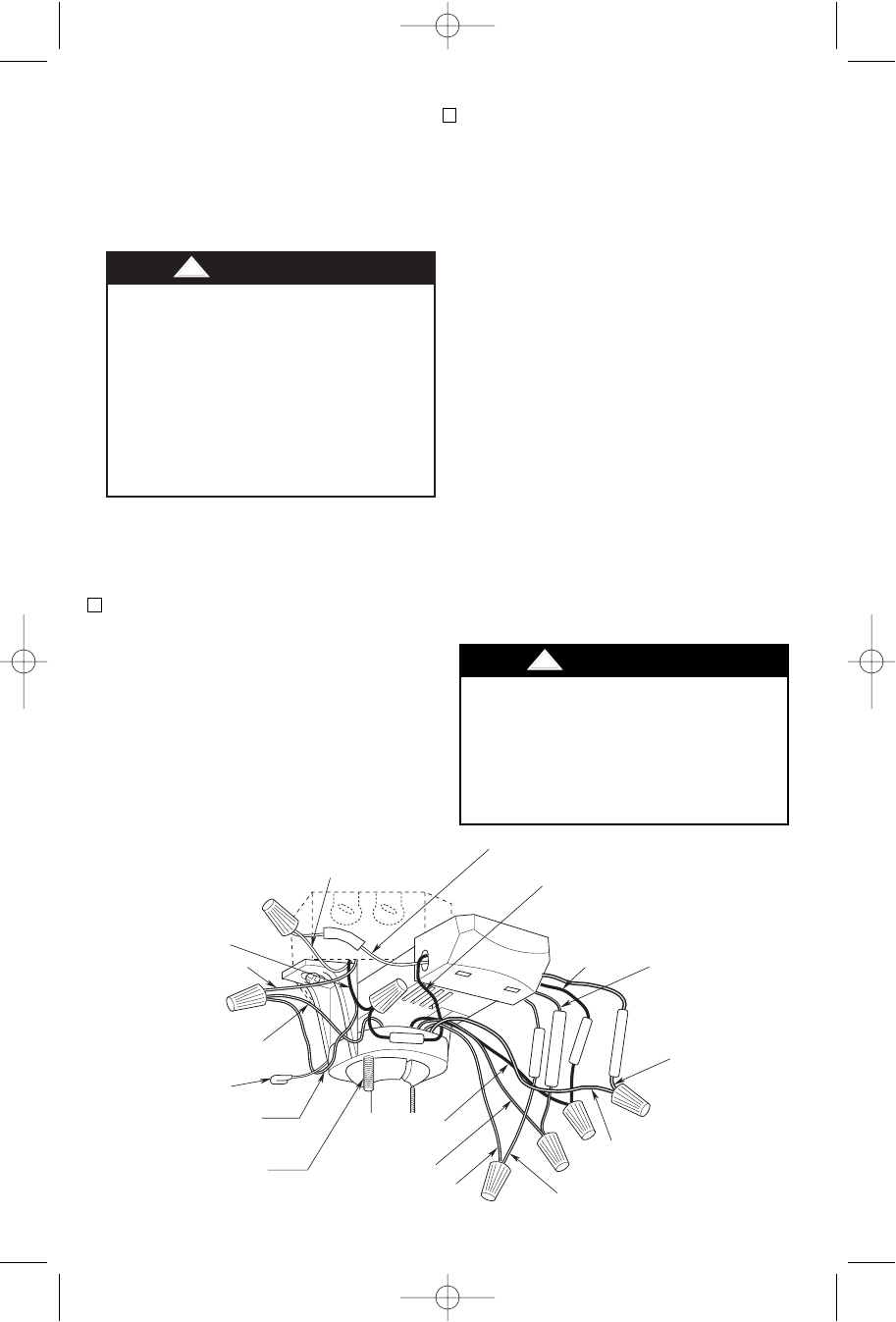

GREEN GROUND WIRE
FROM HANGER BRACKET
RECEIVER BLACK
WIRE
RECEIVER WHITE
WIRE
FAN WHITE WIRE
ANTENNA
A
C
I
N
N
AC IN L
FOR BOTTOM LIGHT
TO MOTOR N
RECEIVER
BLUE WIRE
RECEIVER BLACK WIRE
RECEIVER WHITE
WIRE
SUPPLY WHITE WIRE
(NEUTRAL)
SUPPLY BLACK
WIRE (HOT)
GROUND WIRE
GREEN GROUND WIRE
FROM HANGER BALL
FAN BLUE WIRE
1-1/4" THREADED
STUD (2)
TO MOTOR L
FAN BLACK
WIRE
FOR UPPER LIGHT
RECEIVER
ORANGE WIRE
FAN ORANGE
WIRE
Figure 12
CAUTION: To reduce the risk of electri-
cal shock, disconnect the electrical
supply circuit before installing the fan,
light kit or receiver.
U.L. Model No.: CF160
