CRESTRON GREEN LIGHT™ Architectural Dimming

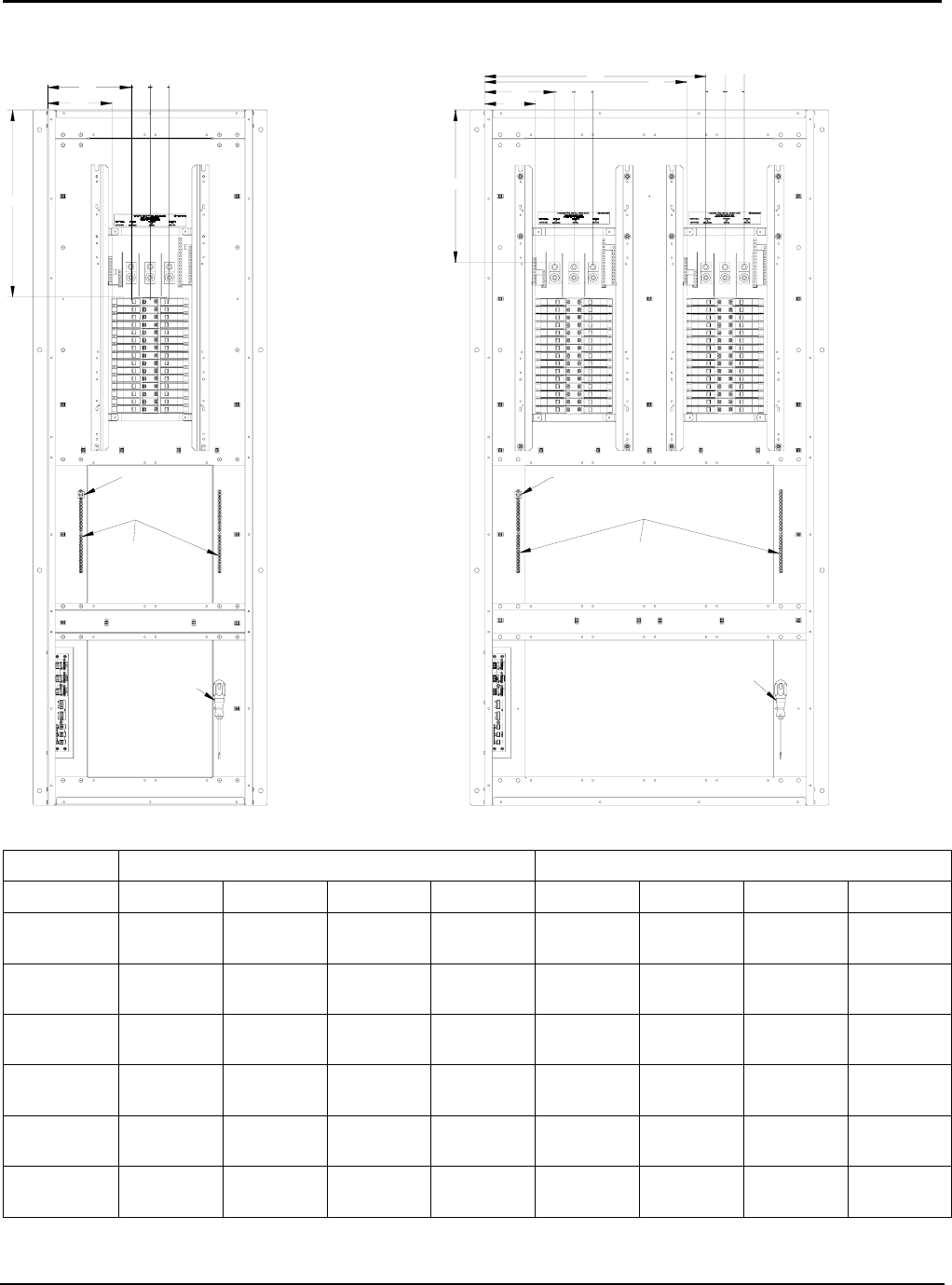

Interior Dimensions of CRESTRON GREEN LIGHT Architectural Dimming Cabinets (GLE-XXX-Xx2, left; GLE-XXX-Xx4, right)
H1
W3W3
W2
W1
GROUND LUG
GROUND BARS
SERVICE
SCREWDRIVER
H1
W3W3W3W3
W1
W5
W4
W2
SERVICE SCREWDRIVER
GROUND LUG
GROUND BARS
Interior Dimensions of CRESTRON GREEN LIGHT Architectural Dimming Cabinets
GLE-120 GLE-277
DIMENSION 2X2 3X2 2X4 3X4 2X2 3X2 2X4 3X4
H1
14 7/8”
(378 mm)
18 1/4”
(464 mm)
14 7/8”
(378 mm)
14 7/8”
(378 mm)
11 11/16”
(297 mm)
15 1/16
(383 mm)
11 11/16”
(297 mm)
11 11/16”
(297 mm)
W1
8 3/16”
(208 mm)
8 3/16”
(208 mm)
6 13/16”
(174 mm)
6 13/16”
(174 mm)
8”
(204 mm)
8”
(204 mm)
6 11/16”
(170 mm)
6 11/16”
(170 mm)
W2
6 5/16”
(161 mm)
6 5/16”
(161 mm)
4 15/16”
(126 mm)
4 15/16”
(126 mm)
3 7/8”
(99 mm)
3 7/8”
(99 mm)
2 9/16”
(66 mm)
2 9/16”
(66 mm)
W3
1 7/8”
(48 mm)
1 7/8”
(48 mm)
1 7/8”
(48 mm)
1 7/8”
(48 mm)
2”
(51 mm)
2”
(51 mm)
2”
(51 mm)
2”
(51 mm)
W4
- - 21 5/8”
(550 mm)
21 5/8”
(550 mm
- - 21 1/2”
(547 mm)
21 1/2”
(547 mm)
W5
- - 19 3/4”
(502 mm)
19 3/4”
(502 mm)
- - 17 3/8”
(442 mm)
17 3/8”
(442 mm)
