CFM Corporation Winter Warm - Small Insert Indoor Fireplace User Manual



21
WinterWarm Small Insert
2000888
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
23
9
55
56
57
54
29
11
31
8
7
25
33
27
35
36
24
13
61
10
47
30
6
12
15
14
14
28
32
26
24
4
1
34
40
19
20
38
37
22
3
59
58
21
60
5
39
18
17
16
26
41
43
45
44
42
0888
WinterWarm
small insert
parts
6/01
Draw-down Kit
49
50
48
52
53
51
17a
18a
62

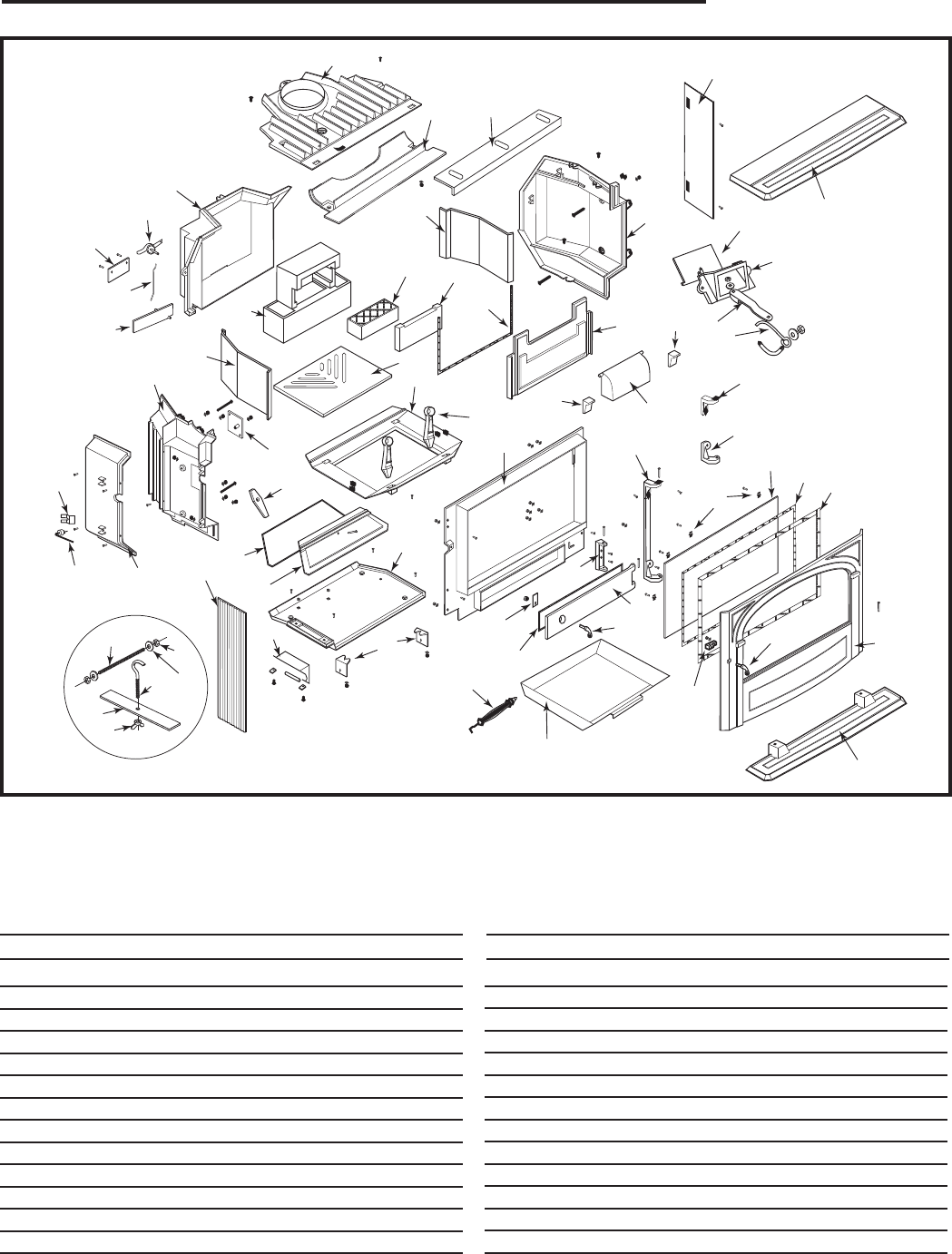

WinterWarm Small Insert
Model 2080
Item Description Part Number Item Description Part Number
1. Bottom 1301332
2. Bottom Leg 1301341
3. Shadow Tray 1301321
4. Air Valve, Primary 1601570
5. Clip, Glass 1601396
6. Right Side 1301317
7. Left Side 1301318
8. Primary Air Cover 1301324
9. Back 1301328
10. Catalyst Block 30001153
11. Refractory Assembly 1602527
12. Throat Hood 30001649
13. Fiberglass Gasket 1203588
14. Wedge 1301340
15. Catalyst Fireback 1301346
16. Front Frame II 1301367
17. Hinge, Upper 1301325
17a. Hinge 1301366
18. Hinge, Lower 1301326
18a. Ashpit Door Hinge 1301336
19. Ashpit Door 1301335
20. Gasket, Fiberglass 1203588
21. Gasket, Fiberglass 1203564
22. Door See Chart Pg. 22
23. Top 1301307
24. Air Reservoir 1301323
