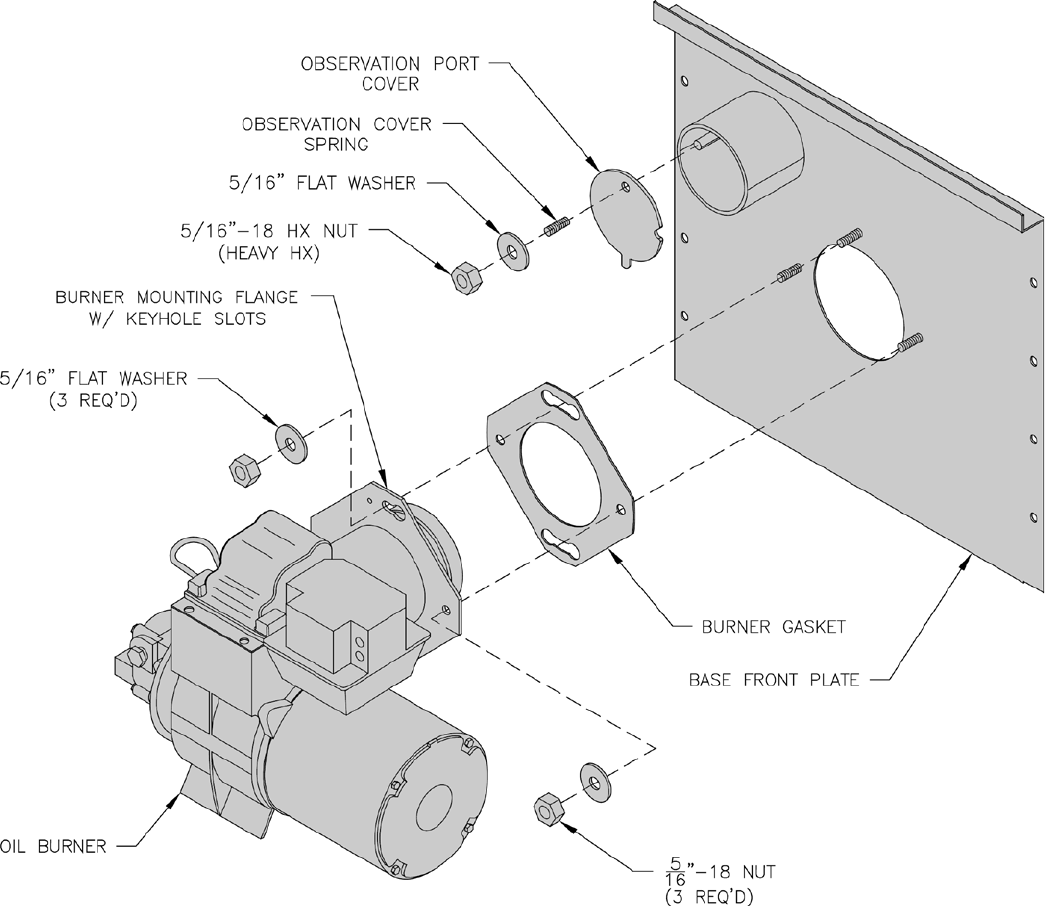

Figure 5: Burner Mounting
2. Bend jacket according to Figure 28. Starting
from the front, wrap the jacket around the boiler.
Make sure that return pipe, observation port and
shell extension t proper into there corresponding
clearance holes. Continue bending jacket around
until front panels meet.
3. Attach jacket to boiler assembly with provided
screws at appropriate locations. Make sure that the
jacket is at least ½” to ¾” off of the oor before
attaching.
4. Attach top panel with provided screws.
D. INSTALLATION OF BOILER CONTROLS
1. Install provided pressure/temperature gauge and
immersion well into appropriate holes on tankless
heater coil plate. Tighten so not to have any water
leaks.
2. Mount the aquastat control onto the immersion well.
Wire the control according to Figure 13 or 14, in the
Electrical and Sequence of Operation Section.
3. Mount burner on Base front panel and wire
according to instructions provided with the burner.
Refer to Figure 5.
